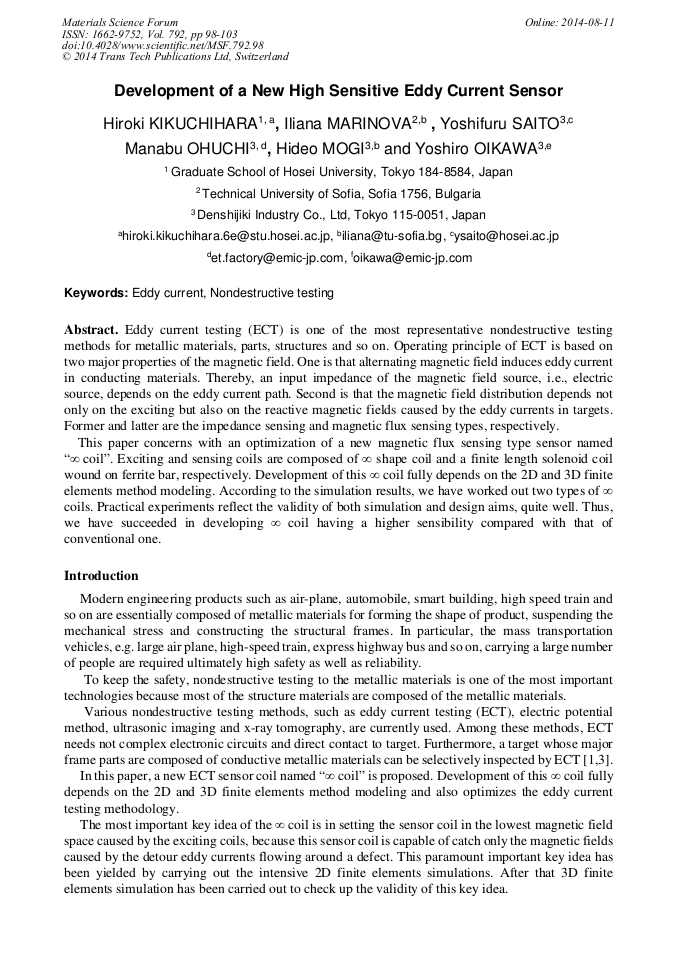

Development of a New High Sensitive Eddy Current Sensor

Abstract:

Eddy current testing (ECT) is one of the most representative nondestructive testing methods for metallic materials, parts, structures and so on. Operating principle of ECT is based on two major properties of the magnetic field. One is that alternating magnetic field induces eddy current in conducting materials. Thereby, an input impedance of the magnetic field source, i.e., electric source, depends on the eddy current path. Second is that the magnetic field distribution depends not only on the exciting but also on the reactive magnetic fields caused by the eddy currents in targets. Former and latter are the impedance sensing and magnetic flux sensing types, respectively.This paper concerns with an optimization of a new magnetic flux sensing type sensor named coil. Exciting and sensing coils are composed of shape coil and a finite length solenoid coil wound on ferrite bar, respectively. Development of this coil fully depends on the 2D and 3D finite elements method modeling. According to the simulation results, we have worked out two types of coils. Practical experiments reflect the validity of both simulation and design aims, quite well. Thus, we have succeeded in developing coil having a higher sensibility compared with that of conventional one.

You might also be interested in these eBooks

Applied Electromagnetic Engineering for Magnetic, Superconducting, Multifunctional and Nano Materials

View Preview

Info:

Periodical:

Materials Science Forum (Volume 792)

Pages:

98-103

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.792.98

Citation:

Cite this paper

Online since:

August 2014

Authors:

Hiroki Kikuchihara*, Illiana Marinova, Yoshifuru Saito, Manabu Ohuchi, Hideo Mogi, Yoshiro Oikawa

Keywords:

Eddy Current, Nondestructive Testing

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] I. Marinova, S. Hayano and Y. Saito, Ployphase eddy current testing, Journal of Applied Physics, Vol. 75, No. 10, pp.5904-5906, (1994).

DOI: 10.1063/1.355557

Google Scholar

[2] N. Burais and A. Nicolas, Electromagnetic field analysis in remote field eddy current testing systems, IEEE Transactions on Magnetics, Vol. 25, No. 4, pp.3010-3012, (1989).

DOI: 10.1109/20.34353

Google Scholar

[3] S. McFee and J.P. Webb, Automatic mesh generation for h-p adaption, IEEE Transactions on Magnetics, Vol. 29, No. 2, pp.1894-1897, (1993).

DOI: 10.1109/20.250777

Google Scholar
