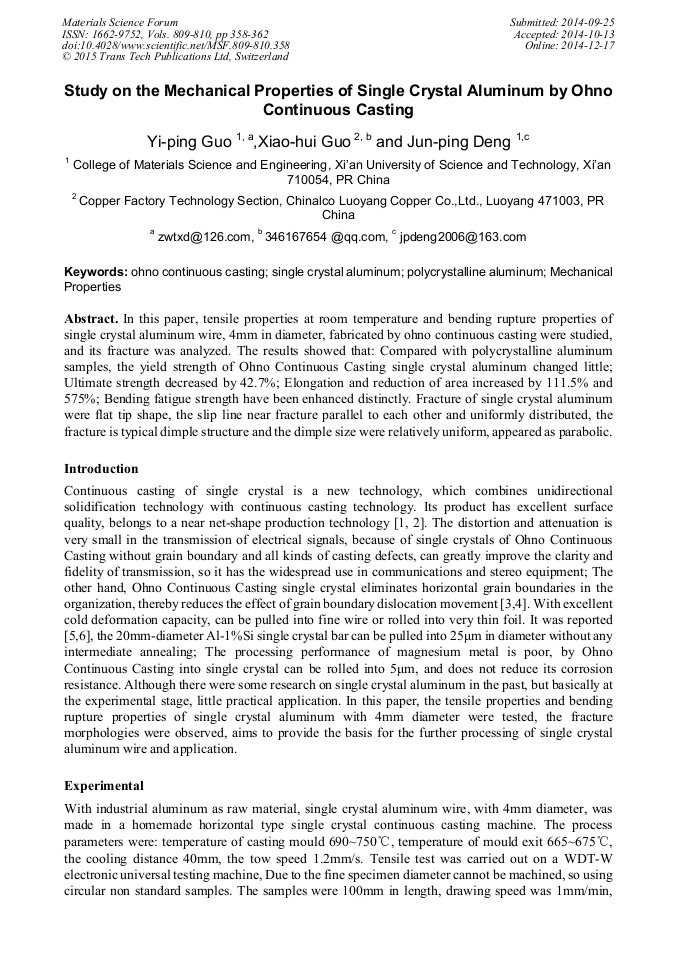

Study on the Mechanical Properties of Single Crystal Aluminum by Ohno Continuous Casting

Abstract:

In this paper, tensile properties at room temperature and bending rupture properties of single crystal aluminum wire, 4mm in diameter, fabricated by ohno continuous casting were studied, and its fracture was analyzed. The results showed that: Compared with polycrystalline aluminum samples, the yield strength of Ohno Continuous Casting single crystal aluminum changed little; Ultimate strength decreased by 42.7%; Elongation and reduction of area increased by 111.5% and 575%; Bending fatigue strength have been enhanced distinctly. Fracture of single crystal aluminum were flat tip shape, the slip line near fracture parallel to each other and uniformly distributed, the fracture is typical dimple structure and the dimple size were relatively uniform, appeared as parabolic.

• Periodical: Materials Science Forum (Volumes 809-810)
• Pages: 358-362
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.809-810.358
• Online since: December 2014
• Authors: Yi Ping Guo*, Xiao Hui Guo, Junping Deng
• Keywords: Mechanical Property, Ohno Continuous Casting, Polycrystalline Aluminum, Single Crystal Aluminum

References

[1] X.X. Li, G.M. Cui and T.F. Ma: Hot Working Technology, Vol. 42(2013)No. 15,P. 77. (In Chinese).

[2] G. Zhao, F. Ni and S.Z. Wei: Special Casting & Nonferrous Alloys, Vol. 27(2007)No. 5,P. 373 (In Chinese).

[3] Z.M. Xu, J.G. Li and H.Z. Fu: Special Casting & Nonferrous Alloys, (1999)No. 1,P. 32(In Chinese).

[4] R. Hu, P. He and J.S. Li: Mechanical Science and Technology for Aerospace Engineering, Vol. 24(2005)No. 6,P. 716(In Chinese).

[5] P.Y. Wei , J.G. Li and H.Z. Fu: Journal of Materials Engineering, (1997)No. 9,P. 38 (In Chinese).

[6] X.X. Li and G.M. Cui: Shanghai Metals, Vol. 35(2013)No. 4,P. 13(In Chinese).

[7] B. Li and Z.Y. Zhang: Hot Working Technology, Vol. 35(2006)No. 21,P. 13(In Chinese).

[8] J. Yuan: Research, Research on Preparation and Microstructure and Properties Evolution of Horizontal Continuous Casting of Single Crystal Copper Superfine Filament System(Ph.D., Jiangxi University of Science and Technology, China 2011), p.12.

[9] J.H. Yang: Research, Observation and Simulation of the Dislocation Structures in the Cyclically Deformed Copper Single Crystals(Ph.D., Northeastern University, China 2001), p.18.

[10] B. Li: Research, Research on the Bauschinger Effects of Single Crystal Copper(Ph.D., Xi`an Technological University, China 2009), p.28.
