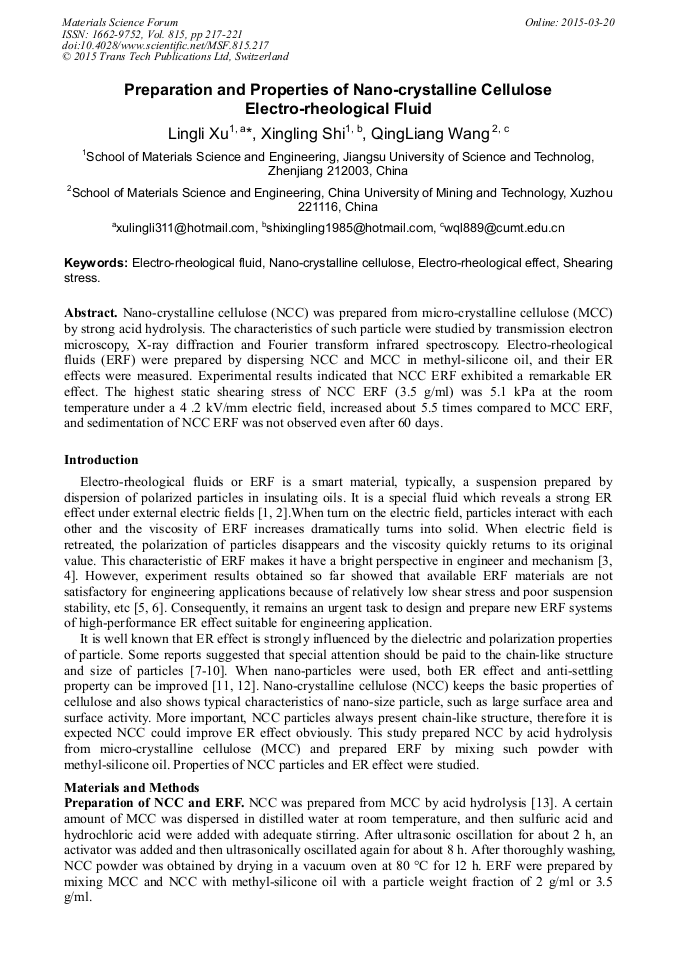

Preparation and Properties of Nano-Crystalline Cellulose Electro-Rheological Fluid

Abstract:

nanocrystalline cellulose (NCC) was prepared from micro-crystalline cellulose (MCC) by strong acid hydrolysis. The characteristics of such particle were studied by transmission electron microscopy, X-ray diffraction and Fourier transform infrared spectroscopy. Electro-rheological fluids (ERF) were prepared by dispersing NCC and MCC in methyl-silicone oil, and their ER effects were measured. Experimental results indicated that NCC ERF exhibited a remarkable ER effect. The highest static shearing stress of NCC ERF (3.5 g/ml) was 5.1 kPa at the room temperature under a 4 .2 kV/mm electric field, increased about 5.5 times compared to MCC ERF, and sedimentation of NCC ERF was not observed even after 60 days.

• Periodical: Materials Science Forum (Volume 815)
• Pages: 217-221
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.815.217
• Online since: March 2015
• Authors: Ling Li Xu, Xing Ling Shi, Qing Liang Wang
• Keywords: Electro-Rheological Effect, Electro-Rheological Fluid, Nanocrystalline Cellulose, Shearing Stress

References

[1] H. Block, J.P. Kelly, Electro-rheology. Journal of Physics D, J. Appl, Phys. 21(1988) 1661.

[2] C.R. Kagan, D.B. Mitzi, C.D. Dimitrakopoulos, Organic-inorganic hybrid materials as semi-conducting channels in thin-film field-effect transistors, Sci. 286(1999) 945-947.

DOI: 10.1126/science.286.5441.945

[3] X.P. Zhang, L.L. Xu, Q.L. Wang, Electro-rheological Effect of Barium Titanate Particles Coated with Urea and Suspended in Methyl Silicone Oil, J. Chin. Univ. Min. Tech. 17 (2007) 578-581.

DOI: 10.1016/s1006-1266(07)60149-7

[4] X.P. Zhang, L.L. Xu, Q.L. Wang, Electro-rheological properties of montmorillonite particles coated with titania in methyl silicone oil, J. Chin. Univ. Min. Tech. 18 (2008) 427-431.

DOI: 10.1016/s1006-1266(08)60088-7

[5] Y. Guang, X.H. Lin, Electrorheological fluids and electrorheological effects, J. Jilin Inst, Tech. 20(1999) 57-60.

[6] H. Quan, X.J. Guo, J.G. Shi, Synthesis and properties of ion-conducting crosslinked polymer and copolymer based on dimethacryloylpoly, Eur. Polym. J. 37(2001) 1997-(2001).

[7] G.Y. Zhi, Q. Yang, M. Guang, On characteristics of silicon-fluid based electrorheological fluid, J. Northwestern Polytechnical Univ. 17(1999) 176-180.

[8] D.R. Gamotr, F.E. Filsko, Linear/nonlinear mechanical properties of electrorheological materials, J. Modern. Phys. 6(1992) 2595-2607.

[9] X.P. Zhao, X. Duan, A new organic/inorganic hybrid with high electro-rheological activity, Mater. Lett. 54(2002) 348-351.

[10] D.D. Dong, W. Ying, F.Z. Ming, Analysis of dynamic performance of power plan dieselengine under impulse load, J. Naval. Univ. Eng. 13(2001) 96-107.

[11] W.J. Wen, X.X. Huang, S.H. Yang, The giant electrorheological effect in suspension of nanoparticles, Nat Mater., 2(2003) 727-730.

[12] T. Hao, A. Kawai, F. Ikazaki, Direct differentiation of the types of polarization responsible for the electro-rheological effect by a dielectric method, J. Colloid, Interface. Sci. 239(2001) 106-112.

DOI: 10.1006/jcis.2001.7599

[13] Q.L. Wang, L.L. Xu, China Patent 200810025417, 8. (2008).

[14] N. Wang, E.Y. Ding, Thermal behavior of nanocrystalline cellulose treated by acid or alkalt, Acta Polym. Sinica. 6(2004) 925-928.

[15] Z.Y. Qiu, L. Hu, M.W. Liu, Temperature effects of dielectric properties of ER fluids technology, Int. J. Modern Phys. 10(1996) 3275-3280.
