Fabrication and Property of W/Tininb Shape Memory Alloy Laminated Composite

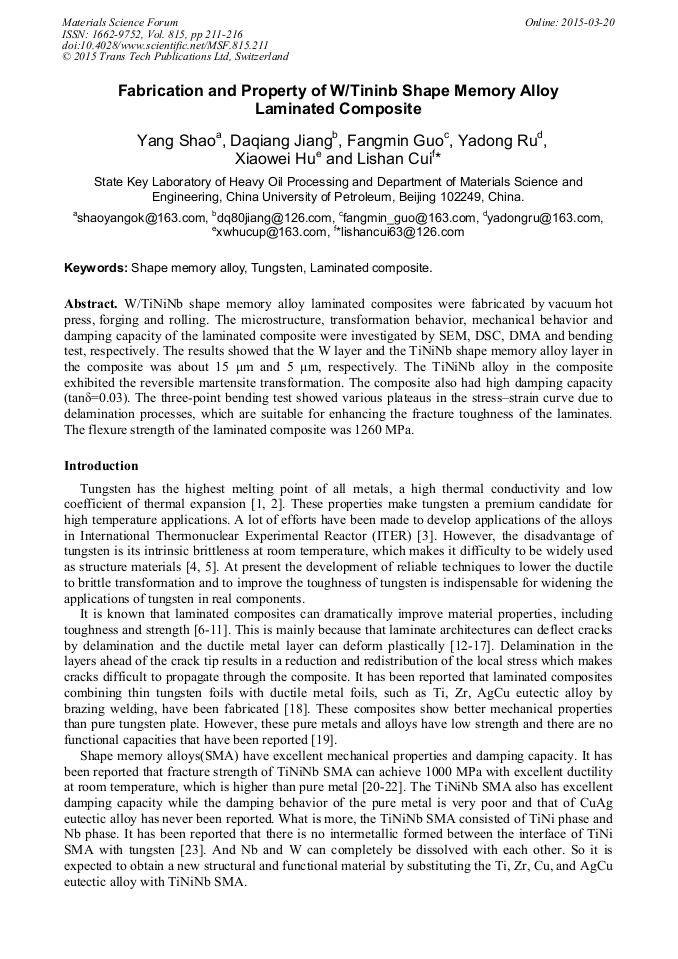

Article Preview

Abstract:

W/TiNiNb shape memory alloy laminated composites were fabricated by vacuum hot press, forging and rolling. The microstructure, transformation behavior, mechanical behavior and damping capacity of the laminated composite were investigated by SEM, DSC, DMA and bending test, respectively. The results showed that the W layer and the TiNiNb shape memory alloy layer in the composite was about 15 μm and 5 μm, respectively. The TiNiNb alloy in the composite exhibited the reversible martensite transformation. The composite also had high damping capacity (tanδ=0.03). The three-point bending test showed various plateaus in the stress–strain curve due to delamination processes, which are suitable for enhancing the fracture toughness of the laminates. The flexure strength of the laminated composite was 1260 MPa.

You might also be interested in these eBooks

Advanced Functional Materials

Info:

Periodical:

Materials Science Forum (Volume 815)

Pages:

211-216

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.815.211

Citation:

Cite this paper

Online since:

March 2015

Authors:

Yang Shao, Da Qiang Jiang, Fang Min Guo, Ya Dong Ru, Xiao Wei Hu, Li Shan Cui

Keywords:

Laminated Composite, Shape Memory Alloy, Tungsten

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2015 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] Q.Z. Yan, X.X. Zhang, T.N. Wang, C.T. Yang, C.C. Ge, Effect of hot working process on the mechanical properties of tungsten materials, J Nucl Mater. 442 (2013)S233-S236.

DOI: 10.1016/j.jnucmat.2013.01.307

[2] J. Reiser, M. Rieth, B. Dafferner, A. Hoffmann, Tungsten foil laminate for structural divertor applications - Basics and outlook, J Nucl Mater. 423 (2012)1-8.

DOI: 10.1016/j.jnucmat.2012.01.010

[3] P. Norajitra, L. Boccaccini, T. Ihli, G. Janeschitz, W. Krauss, R. Kruessmann, I. Landman, D. Maisonnier, P. Sardain, C. Nardi, Development of He-cooled Divertors for Fusion Power Plants, First generation of fusion power plants: Design and technology, Proceedings of a technical meeting, (2006).

DOI: 10.1088/0029-5515/45/11/007

[4] J. Reiser, M. Rieth, B. Dafferner, A. Hoffmann, X.O. Yi, D.E.J. Armstrong, Tungsten foil laminate for structural divertor applications - Analyses and characterisation of tungsten foil, J Nucl Mater. 424 (2012)197-203.

DOI: 10.1016/j.jnucmat.2012.02.030

[5] J. Reiser, M. Rieth, A. Moslang, B. Dafferner, A. Hoffmann, X.O. Yi, D.E.J. Armstrong, Tungsten foil laminate for structural divertor applications - Tensile test properties of tungsten foil, J Nucl Mater. 434 (2013)357-366.

DOI: 10.1016/j.jnucmat.2012.12.003

[6] Y.J. Guo, Z.Q. Shi, Y.K. Xu, G.J. Qiao, Correlation between microstructure and tensile behavior of metal-intermetallic laminate compound with different initial Ni foil thickness, Rare Metals. 33 (2014)196-202.

DOI: 10.1007/s12598-013-0203-1

[7] Z. Chen, X. Wu, H. Hu, Q. Chen, Q. Liu, Effect of Individual Layer Shape on the Mechanical Properties of Dissimilar Al Alloys Laminated Metal Composite Sheets, Journal of materials engineering and performance. 23 (2014)990-1001.

DOI: 10.1007/s11665-013-0804-8

[8] M. Pozuelo, C.M. Cepeda-Jimenez, J. Chao, F. Carreno, O.A. Ruano, Fracture toughness for interfacial delamination of Cr-Mo steel multilayer laminate, Mater Sci Tech-Lond, 25 (2009)632-635.

DOI: 10.1179/174328408x327713

[9] J. She, T. Inoue, K. Ueno, Multilayer Al<sub> 2</sub> O<sub> 3</sub>/SiC ceramics with improved mechanical behavior, Journal of the European Ceramic Society. 20 (2000)1771-1775.

DOI: 10.1016/s0955-2219(00)00048-0

[10] F.J. Gotor, R. Bermejo, J. Córdoba, E. Chicardi, V. Medri, D. Dalle Fabbriche, Y. Torres, Processing and characterisation of cermet/hardmetal laminates with strong interfaces, Materials & Design. 58 (2014)226-233.

DOI: 10.1016/j.matdes.2014.01.076

[11] L.M. Peng, H. Li, J.H. Wang, Processing and mechanical behavior of laminated titanium-titanium tri-aluminide (Ti-Al-3 Ti) composites, Mat Sci Eng a-Struct. 406 (2005)309-318.

DOI: 10.1016/j.msea.2005.06.067

[12] M. Pozuelo, F. Carreño, O.A. Ruano, Delamination effect on the impact toughness of an ultrahigh carbon–mild steel laminate composite, Composites science and technology. 66 (2006)2671-2676.

DOI: 10.1016/j.compscitech.2006.03.018

[13] T.M. Osman, J.J. Lewandowski, D.R. Lesuer, The fracture resistance of layered DRA materials: influence of laminae thickness, Materials Science and Engineering: A. 229 (1997)1-9.

DOI: 10.1016/s0921-5093(97)00001-4

[14] C.M. Cepeda-Jimenez, M. Pozuelo, J.M. Garcia-Infanta, O.A. Ruano, F. Carreno, Influence of the alumina thickness at the interfaces on the fracture mechanisms of aluminium multilayer composites, Mat Sci Eng a-Struct. 496 (2008)133-142.

DOI: 10.1016/j.msea.2008.05.015

[15] C. Cepeda-Jiménez, M. Pozuelo, O.A. Ruano, F. Carreño, Influence of the thermomechanical processing on the fracture mechanisms of high strength aluminium/pure aluminium multilayer laminate materials, Materials Science and Engineering: A. 490 (2008)319-327.

DOI: 10.1016/j.msea.2008.01.034

[16] K.S. Vecchio, Synthetic multifunctional metallic-intermetallic laminate composites, Jom. 57 (2005)25-31.

DOI: 10.1007/s11837-005-0229-4

[17] J. Wadsworth, D.R. Lesuer, Ancient and modem laminated composites - from the Great Pyramid of Gizeh to Y2K, Mater Charact. 45 (2000)289-313.

DOI: 10.1016/s1044-5803(00)00077-2

[18] J. Reiser, M. Rieth, A. Moslang, B. Dafferner, J. Hoffmann, T. Mrotzek, A. Hoffmann, D.E.J. Armstrong, X.O. Yi, Tungsten foil laminate for structural divertor applications - Joining of tungsten foils, J Nucl Mater. 436 (2013)47-55.

DOI: 10.1016/j.jnucmat.2013.01.295

[19] J. Zhang, R. Perez, E. Lavernia, Documentation of damping capacity of metallic, ceramic and metal-matrix composite materials, Journal of materials science. 28 (1993)2395-2404.

DOI: 10.1007/bf01151671

[20] Y. Chen, H.C. Jiang, L.J. Rong, L. Xiao, X.Q. Zhao, Mechanical behavior in NiTiNb shape memory alloys with low Nb content, Intermetallics. 19 (2011)217-220.

DOI: 10.1016/j.intermet.2010.08.011

[21] W. Liu, X.Q. Zhao, Mechanical Properties and Transformation Behavior of NiTiNb Shape Memory Alloys, Chinese J Aeronaut. 22 (2009)540-543.

DOI: 10.1016/s1000-9361(08)60138-7

[22] X.Q. Zhao, X.M. Yan, Y.Z. Yang, H.B. Xu, Wide hysteresis NiTi(Nb) shape memory alloys with low Nb content (4.5 at.%), Mat Sci Eng a-Struct. 438 (2006)575-578.

DOI: 10.1016/j.msea.2006.03.110

[23] S. Wang, F.M. Guo, D.Q. Jiang, Y. Liu, L.S. Cui, In situ W-NiTi shape memory alloy composite of high radiopacity, Scripta Mater. 81 (2014)4-7.

DOI: 10.1016/j.scriptamat.2014.02.002

[24] C. Cepeda-Jiménez, R. Alderliesten, O.A. Ruano, F. Carreño, Damage tolerance assessment by bend and shear tests of two multilayer composites: glass fibre reinforced metal laminate and aluminium roll-bonded laminate, Composites Science and Technology. 69 (2009)343-348.

DOI: 10.1016/j.compscitech.2008.10.010

[25] K. Otsuka, X. Ren, Physical metallurgy of Ti–Ni-based shape memory alloys, Progress in materials science. 50 (2005)511-678.

DOI: 10.1016/j.pmatsci.2004.10.001

[26] D.S. Li, X.P. Zhang, Z.P. Xiong, Y.W. Mai, Lightweight NiTi shape memory alloy based composites with high damping capacity and high strength, J Alloy Compd. 490 (2010)L15-L19.

DOI: 10.1016/j.jallcom.2009.10.025
