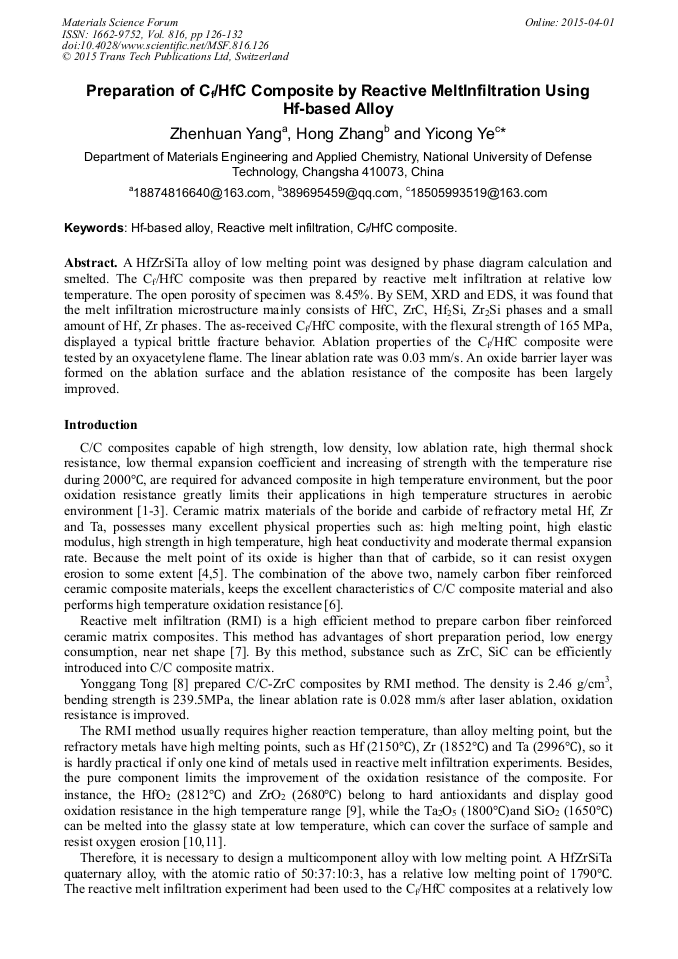

Preparation of C_f/HfC Composite by Reactive MeltInfiltration Using Hf-Based Alloy

Abstract:

A HfZrSiTa alloy of low melting point was designed by phase diagram calculation and smelted. The C_f/HfC composite was then prepared by reactive melt infiltration at relative low temperature. The open porosity of specimen was 8.45%. By SEM, XRD and EDS, it was found that the melt infiltration microstructure mainly consists of HfC, ZrC, Hf₂Si, Zr₂Si phases and a small amount of Hf, Zr phases. The as-received C_f/HfC composite, with the flexural strength of 165 MPa, displayed a typical brittle fracture behavior. Ablation properties of the C_f/HfC composite were tested by an oxyacetylene flame. The linear ablation rate was 0.03 mm/s. An oxide barrier layer was formed on the ablation surface and the ablation resistance of the composite has been largely improved.

• Periodical: Materials Science Forum (Volume 816)
• Pages: 126-132
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.816.126
• Online since: April 2015
• Authors: Zhen Huan Yang, Hong Zhang, Yi Cong Ye*
• Keywords: C_f/HfC Composite, Hf-Based Alloy, Reactive Melt Infiltration

References

[1] J.C. Han, P Hu, X.H. Zhang. Advances on ultra-high temperature materials[J]. Journal of Solid Rocket Technology, 2005(28): 289-294.

[2] Y. Zhang, X.B. He, X.H. Qu. Research progress and application of ultra high-temperature materials[J]. Materials Reviews, 2007(21): 60-64.

[3] D.L. Jiang. Recent research progress of high performance ceramics[J]. Materials China, 2009(28): 26-40.

[4] Y.J. Sun, X. T Li, Y. Song. Properties and microstructures of carbon fiber reinforced ultra-high temperature ceramic matrix composites[J]. Aerospace Materials & Technology, 2011: 81-84.

[5] Z.L. Hong, L.F. Cheng, L.J. Lu. Internal friction mechanisms and damage evaluation of continuous fiber reinforced ceramic matrix composites[J]. Materials Reviews, 2012(24): 1-7.

[6] A. Paul, S. Venugopal, J. G. P. Binner. UHTC-carbon fibre composites: preparation, oxyacetylene torch testing and characterisation[J]. Journal of the European Ceramic Society, 2013(33): 423-432.

DOI: 10.1016/j.jeurceramsoc.2012.08.018

[7] E.O. Einset. Analysis of reactive melt infiltration in the processing of ceramics and ceramic composites[J]. Chemical Engineering Science, 1998(53): 1027-1039.

DOI: 10.1016/s0009-2509(97)00379-5

[8] Y.G. Tong, S.X. Bai, K. Chen. C/C-ZrC composite prepared by chemical vapor infiltration combined with alloyed reactive melt infiltration[J]. Ceramics International, 2012(38): 5723-5730.

DOI: 10.1016/j.ceramint.2012.04.017

[9] X. Xiong, Y.L. Wang, G.D. Li. HfC/ZrC ablation protective coating for carbon/carbon composites[J]. Corrosion Science, 2013(77): 25-30.

DOI: 10.1016/j.corsci.2013.06.042

[10] S.A. Ghaffari, M.A. Faghihi-Sani, F. Golestani-Fard. Diffusion and solid solution formation between the binary carbides of TaC, HfC and ZrC[J]. International Journal of Refractory Metals and Hard Materials, 2013(41): 180-184.

DOI: 10.1016/j.ijrmhm.2013.03.009

[11] D.W. Ni, J.X. Liu, G.J. Zhang. Microstructure refinement and mechanical properties improvement of HfB2-SiC composites with the incorporation of HfC[J]. Journal of the European Ceramic Society, 2012(32): 2557-2563.

DOI: 10.1016/j.jeurceramsoc.2012.02.017

[12] Erik O. Einset. Analysis of reactive melt infiltration in the processing of ceramics and ceramic composites[J]. Chemical Engineering Science, 1998(53): 1027-1039.

DOI: 10.1016/s0009-2509(97)00379-5

[13] J.P. Wang, Z.H. Jin, J.M. Qian. Research progress on mechanism and kinetics of C/C-Si composites prepared by reactive melt infiltration[J]. Journal of the Chinese ceramic society, 2005(33): 1120-1126.

[14] X.T. Shen, K.Z. Li, H.J. Li. Microstructure and ablation properties of zirconium carbide doped carbon/carbon composites[J]. Carbon, 2010(48): 344-351.

DOI: 10.1016/j.carbon.2009.09.035

[15] Y.L. Wang, X. Xiong, G.D. Li. Preparation and ablation properties of Hf(Ta)C co-deposition coating for carbon/carbon composites[J]. Corrosion Science, 2013(66): 177-182.

DOI: 10.1016/j.corsci.2012.09.016
