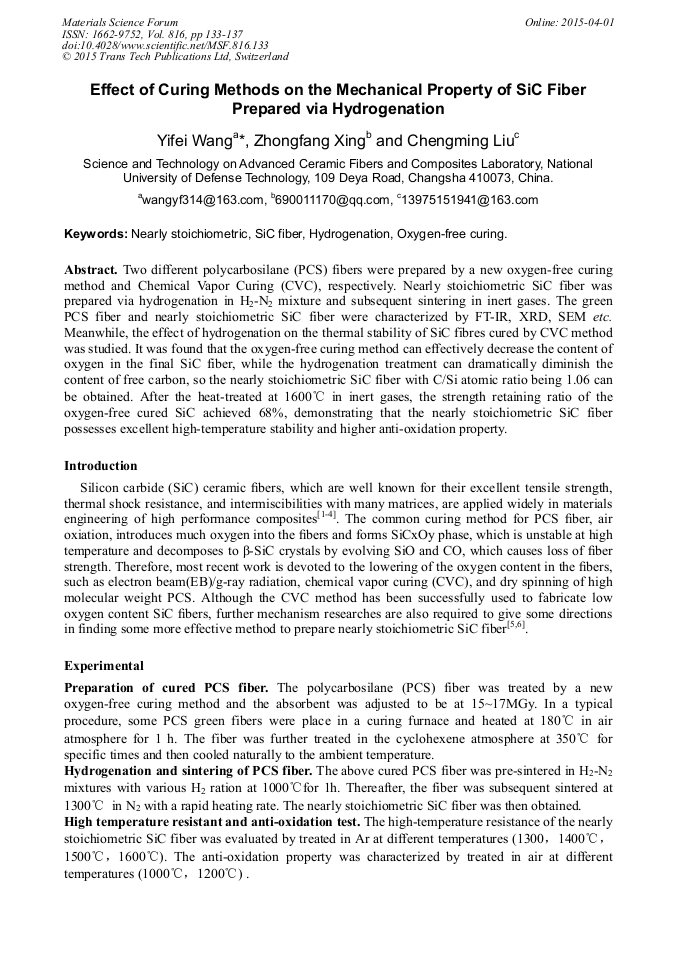

Effect of Curing Methods on the Mechanical Property of SiC Fiber Prepared via Hydrogenation

Abstract:

Two different polycarbosilane (PCS) fibers were prepared by a new oxygen-free curing method and Chemical Vapor Curing (CVC), respectively. Nearly stoichiometric SiC fiber was prepared via hydrogenation in H₂-N₂ mixture and subsequent sintering in inert gases. The green PCS fiber and nearly stoichiometric SiC fiber were characterized by FT-IR, XRD, SEM etc. Meanwhile, the effect of hydrogenation on the thermal stability of SiC fibres cured by CVC method was studied. It was found that the oxygen-free curing method can effectively decrease the content of oxygen in the final SiC fiber, while the hydrogenation treatment can dramatically diminish the content of free carbon, so the nearly stoichiometric SiC fiber with C/Si atomic ratio being 1.06 can be obtained. After the heat-treated at 1600°C in inert gases, the strength retaining ratio of the oxygen-free cured SiC achieved 68%, demonstrating that the nearly stoichiometric SiC fiber possesses excellent high-temperature stability and higher anti-oxidation property.

• Periodical: Materials Science Forum (Volume 816)
• Pages: 133-137
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.816.133
• Online since: April 2015
• Authors: Yi Fei Wang*, Zhong Fang Xing, Cheng Ming Liu
• Keywords: Hydrogenation, Nearly Stoichiometric, Oxygen-Free Curing, SiC Fiber

References

[1] Chunxiang Feng, Yingde Wang, Zhouchun Zou, Yongcai song. A Review of Applications of Continous SiC Fibers [J]. Materials Review, 1997, 11(6): 64-66.

[2] Dafang Zhao. Research on continuous technology of SA type silicon carbide fiber[D]. Changsha, National University of Defense Technology, (2008).

[3] Daxiang Yang, Yongcai Song. Current Situation of the Industrialized Production of Polymer-derived Continuous SiC Fibers [J]. Materials for mechanical engineering, 2007, 31(1): 1-4.

[4] Jianjun Cheng, Zhiqin Peng, Wengjun Dong. Development and Progress of Polymer-derived SiC Fibers [J]. Hi-tech Fiber & application, 2010, 35(1): 35-41.

[5] Guojian Zhang. Control of cracking atmosphere preparation of near stoichiometric SiC fiber research [D]. Xiamen: Xiamen University, (2006).

[6] Michio Takeda, Jun-ichi Sakamoto, Yoshikazu Imai, Hiroshi Ichikawa. Thermal stability of the low-oxygen-content silicon carbide fiber, Hi-NicalonTM[J]. Composites Science and Technology. 1999, 59: 813-819.

DOI: 10.1016/s0266-3538(99)00012-3

[7] Deyin Wang. Preparation and characterization of continuous SiC fibers and SiNO fibers [D]. Changsha, National University of Defense Technology, (2011).
