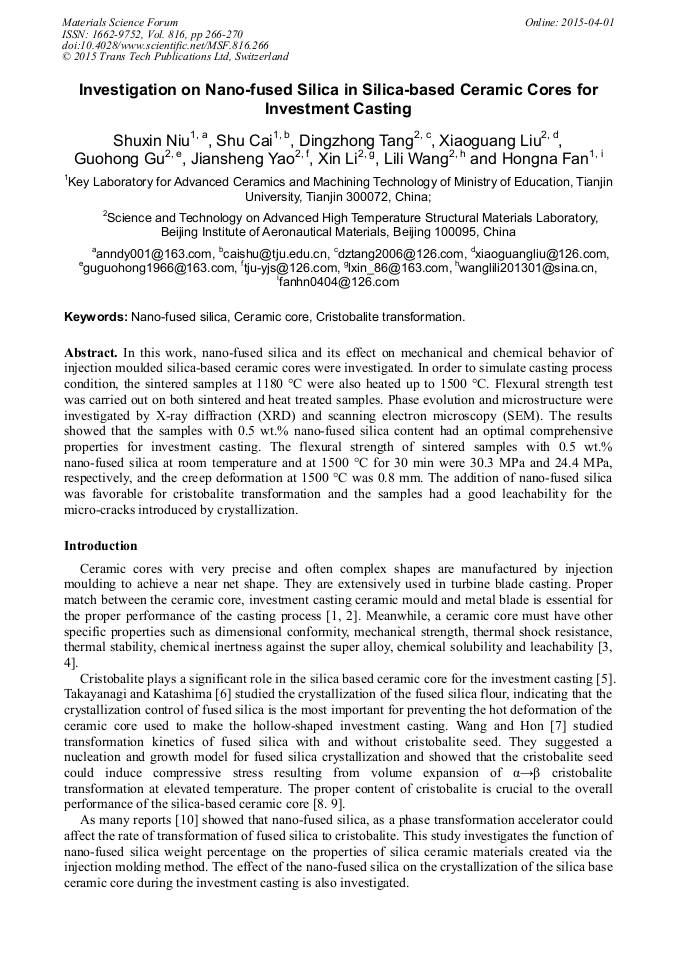

Investigation on Nano-Fused Silica in Silica-Based Ceramic Cores for Investment Casting

Abstract:

In this work, nanofused silica and its effect on mechanical and chemical behavior of injection moulded silica-based ceramic cores were investigated. In order to simulate casting process condition, the sintered samples at 1180 °C were also heated up to 1500 °C. Flexural strength test was carried out on both sintered and heat treated samples. Phase evolution and microstructure were investigated by X-ray diffraction (XRD) and scanning electron microscopy (SEM). The results showed that the samples with 0.5 wt.% nanofused silica content had an optimal comprehensive properties for investment casting. The flexural strength of sintered samples with 0.5 wt.% nanofused silica at room temperature and at 1500 °C for 30 min were 30.3 MPa and 24.4 MPa, respectively, and the creep deformation at 1500 °C was 0.8 mm. The addition of nanofused silica was favorable for cristobalite transformation and the samples had a good leachability for the micro-cracks introduced by crystallization.

• Periodical: Materials Science Forum (Volume 816)
• Pages: 266-270
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.816.266
• Online since: April 2015
• Authors: Shu Xin Niu*, Shu Cai, Ding Zhong Tang, Xiao Guang Liu, Guo Hong Gu, Jian Sheng Yao, Xin Li, Li Li Wang, Hong Na Fan
• Keywords: Ceramic Core, Cristobalite Transformation, Nanofused Silica

References

[1] A. Kazemi, M. A. Faghihi-Sani, H. R. Alizadeh, Investigation on cristobalite crystallization in silica-based ceramic cores for investment casting. J. Eur. Ceram. Soc. 33(2013) 3397-3402.

DOI: 10.1016/j.jeurceramsoc.2013.06.025

[2] A. Kazemi, M. A. Faghihi-Sani, M. J. Nayyeri, M. Mohammadi, M. Hajfathalian, Effect of zircon content on chemical and mechanical behavior of silica-based ceramic cores. Ceram. Int. 22(2013) 89-92.

DOI: 10.1016/j.ceramint.2013.06.108

[3] P. J. Wilson, S. Blackburn, R. W. Greenwood, B. Prajapti, K. Smalley, The role of zircon particle size distribution, surface area and contamination on the properties of silica-zircon ceramic materials. J. Eur. Ceram. Soc. 31(2011) 1849-1855.

DOI: 10.1016/j.jeurceramsoc.2011.03.005

[4] L.Y. Wang, M.H. Hon, The effect of cristobalite seed on the crystallization of fused silica based ceramic core-A kinetic study. Ceram. Int. 21(1995) 187-193.

DOI: 10.1016/0272-8842(95)90909-3

[5] R. Naghizadeh, F. Kazemi, F. Arianpour, R. Ghaderi, M.H. Fathalian, M. Taheri, H.R. Rezaie. A novel method for quantitative phase determination of cristobalite in ceramic cores using differential scanning calorimeter. J Therm Anal Calorim. DOI 10. 1007/s10973-014-4086-7.

DOI: 10.1007/s10973-014-4086-7

[6] E. H. Kim, G. H. Cho, Y. S. Yoo, S. M. Seo, Y. G. Jung, Development of a new process in high functioning ceramic core without shape deformation. Ceram. Int. 39(2013) 9041-9045.

DOI: 10.1016/j.ceramint.2013.04.107

[7] A. A. Wereszczak, K. Breder, M. K. Ferber, T. P. Kirkland, E. A. Payzant, C. J. Rawn, Dimensional changes and creep of silica core ceramics used in investment casting of superalloys. J. Mater. Sci. 37(2002) 4235-4245.

DOI: 10.1023/a:1020060508311

[8] L. Huang, L. Duffrene, J. Kieffer, Structural transitions in silica glass: thermo-mechanical anomalies and polyamorphism. J Non-Cryst Solids. 349(2004) 1-9.

DOI: 10.1016/j.jnoncrysol.2004.08.252

[9] M. Zawrah, E. Hamzawy, Effect of cristobalite formation on sinterability, microstructure and properties of glass/ceramic composites. Ceram Int. 28 (2002) 123-30.

DOI: 10.1016/s0272-8842(01)00067-0

[10] F.X. Huber, N. McArthur, J. Hillmeier, H.J. Kock, M. Baier, M. Diwo, I. Berger, P.J. Meeder, Void filling of tibia compression fracture zones using a novel resorbable nanocrystalline hydroxyapatite paste in combination with a hydroxyapatite ceramic core: first clinical results. Arch Orthop Trauma Surg. 126(2006).

DOI: 10.1007/s00402-006-0170-1

[11] C. H. Chao, H. Y. lu, Optimal composition of zircon-fused silica ceramic cores for casting superalloys. J. Am. Ceram. Soc. 85(2002) 73-79.

DOI: 10.1111/j.1151-2916.2002.tb00171.x
