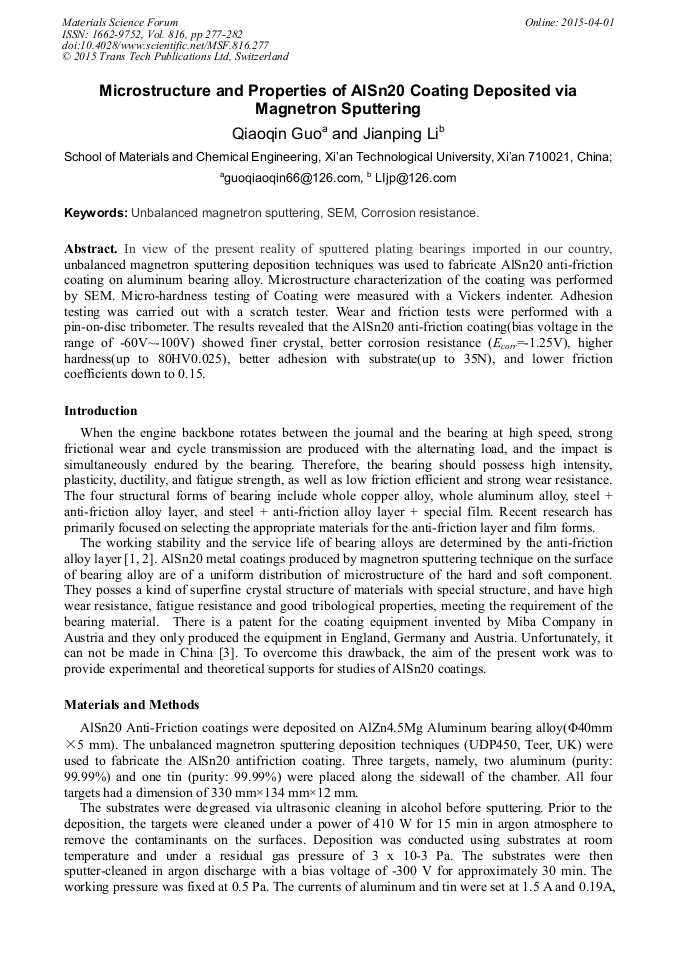

Microstructure and Properties of AlSn20 Coating Deposited via Magnetron Sputtering

Abstract:

In view of the present reality of sputtered plating bearings imported in our country, unbalanced magnetron sputtering deposition techniques was used to fabricate AlSn20 anti-friction coating on aluminum bearing alloy. Microstructure characterization of the coating was performed by SEM. Micro-hardness testing of Coating were measured with a Vickers indenter. Adhesion testing was carried out with a scratch tester. Wear and friction tests were performed with a pin-on-disc tribometer. The results revealed that the AlSn20 anti-friction coating (bias voltage in the range of-60V~-100V) showed finer crystal, better corrosion resistance (E_corr=-1.25V), higher hardness (up to 80HV0.025), better adhesion with substrate (up to 35N), and lower friction coefficients down to 0.15.

• Periodical: Materials Science Forum (Volume 816)
• Pages: 277-282
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.816.277
• Online since: April 2015
• Authors: Qiao Qin Guo*, Jian Ping Li
• Keywords: Corrosion Resistance, SEM, Unbalanced Magnetron Sputtering

References

[1] G. Q. Zou Application and Development Trend of Sliding Bearing, Diesel Engine, 12 (1996), 14~15.

[2] Z. W． Koros, A. R. Gonzalez-Elipe, Bearing new materials and their manufacturing method Combustion Engine, 27 (2000) 29-40.

[3] Y. J. Guo Q. F. Li. Research on new material of bearing prepared by magnetron sputtering coating bearing, Journal of Harbin Institute of Technology University. 22(2001) 93～96.

[4] P. J. Kelly R. D. Arnell. Magnetron sputtering: a review of recent developments and applications[J] Vacuum. 56(2011) 156-172.

DOI: 10.1016/s0042-207x(99)00189-x

[5] V. Jimenez, A. Fermandez. Interface effects for metal oxide thin films deposited on another metal oxide SnO deposited on SiO2Surf. Sci. 350 (2011)123.

DOI: 10.1016/0039-6028(95)01071-8

[6] Z. X. Zeng, L. P. Wang, A. M. Liang, L. Chen, Fabrication of a nano-crystalline Cr–C layer with excellent anti-wear performance, Material Letter. 61 (2007) 4107-410.

DOI: 10.1016/j.matlet.2007.01.066

[7] P. J. Anthony, J. N. Matossian. An overview of some advanced surface technology in Russion . Matal &Mater Tran . 29 (1998 ) 593-609.

[8] S. Zhang, D. Sun, Y. Q. Qing. H. J. Du. Recent advances of superhard nanocomposite coatings: a review . Surface and Coating Technology. 167(2009) 113-119.

DOI: 10.1016/s0257-8972(02)00903-9

[9] H. Z, Durusoy D.Z. Atilla. Influence of substrate temperature and bias voltage on the optical transmittance of TiN films, Vacuum. 70(2003) 21-28.

DOI: 10.1016/s0042-207x(02)00663-2

[10] J. Hampshire, P. J. Kelly, D. G. Teer, The structure of codeposited aluminium/titanium alloy coatings, Thin Solid Films. 447-448(2009) 418-424.

DOI: 10.1016/j.tsf.2003.08.006

[11] R. I. Bates, R. D. Microstructure of novel corrosion resistant coatings for steel components by unbalanced magnetron sputtering, Arnell. Surf Coat Technol, 1997, 89, 204-212.

DOI: 10.1016/s0257-8972(96)02890-3

[12] Tan J N, Hsieh J H. Deposition and characterization of (Nb, Cr)N thin films by unbalanced magnetron sputtering. Surf Coat Techno. 167 (2013) 154-160.

DOI: 10.1016/s0257-8972(02)00907-6

[13] J. Musil. J. Vlcˇek. A perspective of magnetron sputtering in surface engineering．Surface and Coatings Technology Surface and Coatings Technology. 112 (2008) 162–169.

DOI: 10.1016/s0257-8972(98)00748-8

[14] E. Lugscheider, K. Bobzin, K. Lackner. Investigations of mechanical and tribological properties of CrAlN+C thin coatings deposited on cutting tools. Surface and Coatings Technology, 174 (2003) 681-686.

DOI: 10.1016/s0257-8972(03)00566-8
