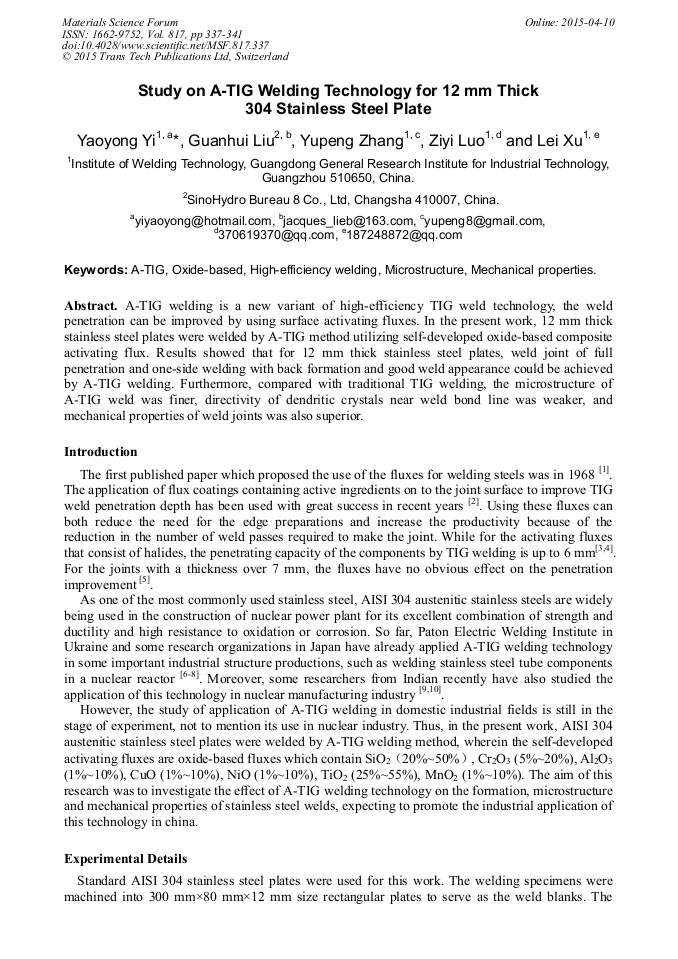

Study on A-TIG Welding Technology for 12 mm Thick 304 Stainless Steel Plate

Abstract:

A-TIG welding is a new variant of high-efficiency TIG weld technology, the weld penetration can be improved by using surface activating fluxes. In the present work, 12 mm thick stainless steel plates were welded by A-TIG method utilizing self-developed oxide-based composite activating flux. Results showed that for 12 mm thick stainless steel plates, weld joint of full penetration and one-side welding with back formation and good weld appearance could be achieved by A-TIG welding. Furthermore, compared with traditional TIG welding, the microstructure of A-TIG weld was finer, directivity of dendritic crystals near weld bond line was weaker, and mechanical properties of weld joints was also superior.

• Periodical: Materials Science Forum (Volume 817)
• Pages: 337-341
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.817.337
• Online since: April 2015
• Authors: Yao Yong Yi*, Guan Hui Liu, Yu Peng Zhang, Zi Yi Luo, Lei Xu
• Keywords: A-TIG, High-Efficiency Welding, Mechanical Properties, Microstructure, Oxide-Based

References

[1] A. M. Makara, et al．Automatic Welding，1968, 7: 78-79.

[2] S. W. Shyu, H. Y. Huang, K. H. Tseng and C. P. Chou, Mater. Eng. Perform. [J], 2008, 17, (2), 193–201.

[3] O. Ostrovskii, et al．Effect of activating fluxes on the penetrating capacity of the welding arc and energy concentration in the anode spot[J]．Svar Proiz, 1973, (3): 3-4.

[4] Savitskii M M, et al．Special features of weld formation in welding through an activating flux[J]．Avt Savarka, 1981, (2): 18-21.

[5] Demin E A, et al: Properties of welded joints in 18-9 chromium-nickel steels produced using an activating flux[J]．Engerget Stroit, 1983, (10): 67-69.

[6] W Lucas, D House. Activating flux-increasing the performance and productivity of the TIG and plasma processes[J]．Welding and Metal Fabrication, 1996, (1): 11-17.

[7] Kamo K，Toyoda M，Ito S．Application on GTA welding with activating flux to nuclear power plants．The 57th Annual Assembly of the International Institute of Welding [C]．Osaka，2004：425-441.

[8] Asai S，Tsuboi R，Kamimura K，et al．Application of A-TIG process to repair welding in power plants．The 57th Annual Assembly of the International Institute of Welding [C]．Osaka，2004：442-453.

[9] Vasantharaja P，Vasudevan M．Studies on A-TIG welding of Low Activation Ferrite/Martensitic (LAFM) steel [J]．Journal of Nuclear Materials，2012，421：117-123.

DOI: 10.1016/j.jnucmat.2011.11.062

[10] Sakthivel T，Vasudevan M，et al．Comparison of creep rupture behavior of type 316L(N) austenitic stainless steel by method of TIG and A-TIG welding processes [J]．Materials Science and Engineering A，2011，528：6971-6980.

DOI: 10.1016/j.msea.2011.05.052
