HomeMaterials Science ForumMaterials Science Forum Vol. 817Characterization of Crack Initiation Life in...

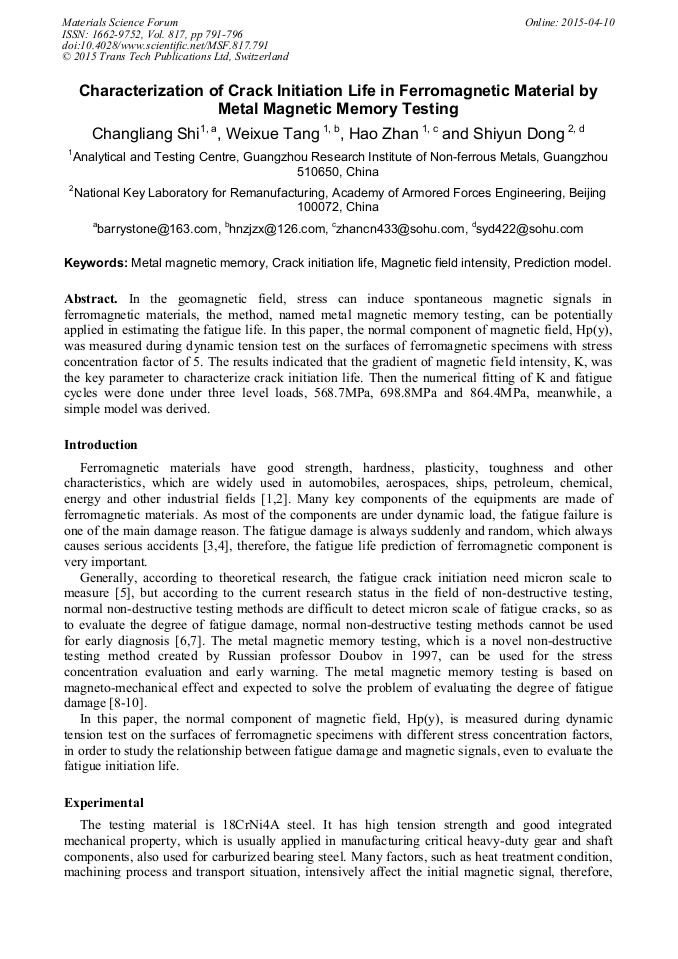

Characterization of Crack Initiation Life in Ferromagnetic Material by Metal Magnetic Memory Testing

Abstract:

In the geomagnetic field, stress can induce spontaneous magnetic signals in ferromagnetic materials, the method, named metal magnetic memory testing, can be potentially applied in estimating the fatigue life. In this paper, the normal component of magnetic field, Hp (y), was measured during dynamic tension test on the surfaces of ferromagnetic specimens with stress concentration factor of 5. The results indicated that the gradient of magnetic field intensity, K, was the key parameter to characterize crack initiation life. Then the numerical fitting of K and fatigue cycles were done under three level loads, 568.7MPa, 698.8MPa and 864.4MPa, meanwhile, a simple model was derived.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Materials Science Forum (Volume 817)

Pages:

791-796

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.817.791

Citation:

Cite this paper

Online since:

April 2015

Authors:

Chang Liang Shi, Wei Xue Tang, Hao Zhan, Shi Yun Dong

Keywords:

Crack Initiation Life, Magnetic Field Intensity, Metal Magnetic Memory, Prediction Model

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Tchankov, S. Ohta, A. Suzuki, Random loading fatigue life assessments for notched plates, Int. J. Fatigue. 21(1999) 941–946.

DOI: 10.1016/s0142-1123(99)00078-x

Google Scholar

[2] N. Li, B.P. Du, The effect of low-stress high-cycle fatigue on the microstructure and fatigue threshold of a 40Cr steel, Int. J. Fatigue. 17(1995) 43–48.

DOI: 10.1016/0142-1123(95)93049-8

Google Scholar

[3] X.L. Zheng, On some basic problems of fatigue research in engineering, Int. J. Fatigue. 23 (2001) 751–766.

DOI: 10.1016/s0142-1123(01)00040-8

Google Scholar

[4] G. Dobmann, L.G. Debarberis, J. F. Coste, Aging material evaluation and studies by non-destructive techniques (AMESNDT) – a European network project, Nucl. Eng. Des. 206(2001) 363–374.

DOI: 10.1016/s0029-5493(00)00422-2

Google Scholar

[5] A.A. Doubov, A Technique for Monitoring The Bends of Boiler and Steam-Line Tubes Using The Magnetic Memory of Metal, Therm. Eng. 48(2001) 289-295.

Google Scholar

[6] M.A. Jiboory, D.G. Lord, Y.J. Bi, Magnetic domains and microstructural defects in Terfenol-D, J. Appl. Phys. 73(1993) 61–68.

Google Scholar

[7] Chechko Π, Using the method of magnetic memory of metal to evaluate the service life of the items of power equipment at the Konakovo District Power station, Therm. Eng. 49(2002) 1028.

Google Scholar

[8] L.H. Dong, S.Y. Dong, B.S. Xu, Investigation of metal magnetic memory signals from the surface of low-carbon steel and low-carbon alloyed steel, J. Cen. Sou. Uni. Tech. 14(2007) 24–27.

DOI: 10.1007/s11771-007-0005-4

Google Scholar

[9] T. Yamasaki, S. Yamamoto, M. Hirao, Effect of applied stresses on magnetostriction of low carbon steel, NDT&E Int. 29(1996) 263–268.

DOI: 10.1016/s0963-8695(96)00028-x

Google Scholar

[10] R.M. Hornreich, H. Rubinstein, R.J. Spain, Magnetostrictive phenomena in metallic materials and some of their device applications, IEEE Trans. Magn. 7(1971) 29.

DOI: 10.1109/tmag.1971.1067004

Google Scholar

[11] L.M. Li, S.L. Huang, X.F. Wang, Magnetic field abnormality caused by welding residual stress, J. Magn. Magn. Mater. 261(2003) 385–391.

Google Scholar
