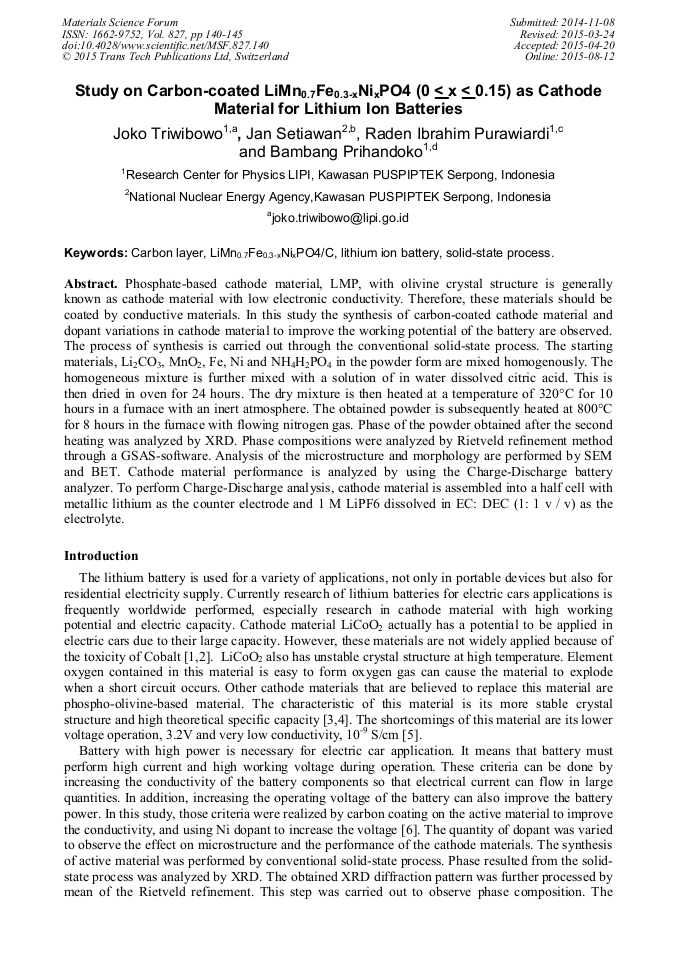

Study on Carbon-Coated LiMn_0.7Fe_0.3-xNi_xPO₄ (0 ≤ x ≤ 0.15) as Cathode Material for Lithium Ion Batteries

Abstract:

Phosphate-based cathode material, LMP, with olivine crystal structure is generally known as cathode material with low electronic conductivity. Therefore, these materials should be coated by conductive materials. In this study the synthesis of carbon-coated cathode material and dopant variations in cathode material to improve the working potential of the battery are observed. The process of synthesis is carried out through the conventional solid-state process. The starting materials, Li₂CO₃, MnO₂, Fe, Ni and NH₄H₂PO₄ in the powder form are mixed homogenously. The homogeneous mixture is further mixed with a solution of in water dissolved citric acid. This is then dried in oven for 24 hours. The dry mixture is then heated at a temperature of 320°C for 10 hours in a furnace with an inert atmosphere. The obtained powder is subsequently heated at 800°C for 8 hours in the furnace with flowing nitrogen gas. Phase of the powder obtained after the second heating was analyzed by XRD. Phase compositions were analyzed by Rietveld refinement method through a GSAS-software. Analysis of the microstructure and morphology are performed by SEM and BET. Cathode material performance is analyzed by using the Charge-Discharge battery analyzer. To perform Charge-Discharge analysis, cathode material is assembled into a half cell with metallic lithium as the counter electrode and 1 M LiPF6 dissolved in EC: DEC (1: 1 v / v) as the electrolyte.

• Periodical: Materials Science Forum (Volume 827)
• Pages: 140-145
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.827.140
• Online since: August 2015
• Authors: Joko Triwibowo*, Jan Setiawan, Raden Ibrahim Purawiardi, Bambang Prihandoko
• Keywords: Carbon Layer, LiMn_0.7Fe_0.3-xNi_xPO₄/C, Lithium Ion Battery, Solid-State Process

References

[1] Y. G. Huang, F. H. Zheng, X. H. Zhang, Q. Y. Li, H. Q. Wang, Effect of carbon coating on cycle performance of LiFePO4/C composite cathodes using Tween80 as carbon source, Electrochimica Acta 130 (2014) 740-747.

DOI: 10.1016/j.electacta.2014.03.091

[2] N. Alias, A. A. Mohamad, Synthesis and electrochemical behavior of LiFePO4/C with an air-electrode in an aqueous lithium ion battery, Ceramics International 40 (2014) 13089-13096.

DOI: 10.1016/j.ceramint.2014.05.008

[3] Z. Tian, S. Liu, F. Ye, S. Yao, Z. Zhou, S. Wang, Synthesis and characterization of LiFePO4 electrode materials coated by graphene, Applied Surface Science 305 (2014) 427-432.

DOI: 10.1016/j.apsusc.2014.03.106

[4] S. Beninati, L. Damen, M. Mastragostino, Fast sol-gel synthesis of LiFePO4/C for high power lithium-ion batteries for hybrid electric vehicle application, Journal of Power Source 194 (2009) 1094-1098.

DOI: 10.1016/j.jpowsour.2009.06.035

[5] H. Gabrisch, J. D. Wilcox, M. M. Doeff, Carbon surface layers on a high-rate LiFePO4, Electrochemical and Solid-State Letters 9 (2006) A360-A363.

DOI: 10.1149/1.2203309

[6] N. Kiziltas-Yavuz, A. Bhaskar, D. Dixon, M. Yavuz, K. Nikolowski, L. Lu, R. A. Eichel, H. Ehrenberg, Improving the rate capability of high voltage lithium-ion battery cathode material LiNi0. 5Mn1. 5O4 by ruthenium doping, Journal of Power Sources 267 (2014).

DOI: 10.1016/j.jpowsour.2014.05.110

[7] Information on http: /home. gwu. edu/~xqiu/links_info/science/atom_radii. htm#covalent.

[8] G. R. Lumpkin, P. H. Ribbe, Composition Order-disorder and lattice parameter of olivines: relationships in silicate, germanate, beryllate, phosphate and borate olivines, American Mineralogist 68 (1983) 164-176.

[9] I. Buchmann, Batteries in a Portable World: A Handbook on Rechargeable Batteries for Non-Engineers, second ed., Cadex Electronics Inc., Richmond, (2001).

[10] S. Akimoto, I. Taniguchi, Synthesis and characterization of LiCo1/3Mn1/3Fe1/3PO4/C nanocomposite cathode of lithium batteries with high rate performance, Journal of Power Sources 242 (2013) 627-630.

DOI: 10.1016/j.jpowsour.2013.05.104
