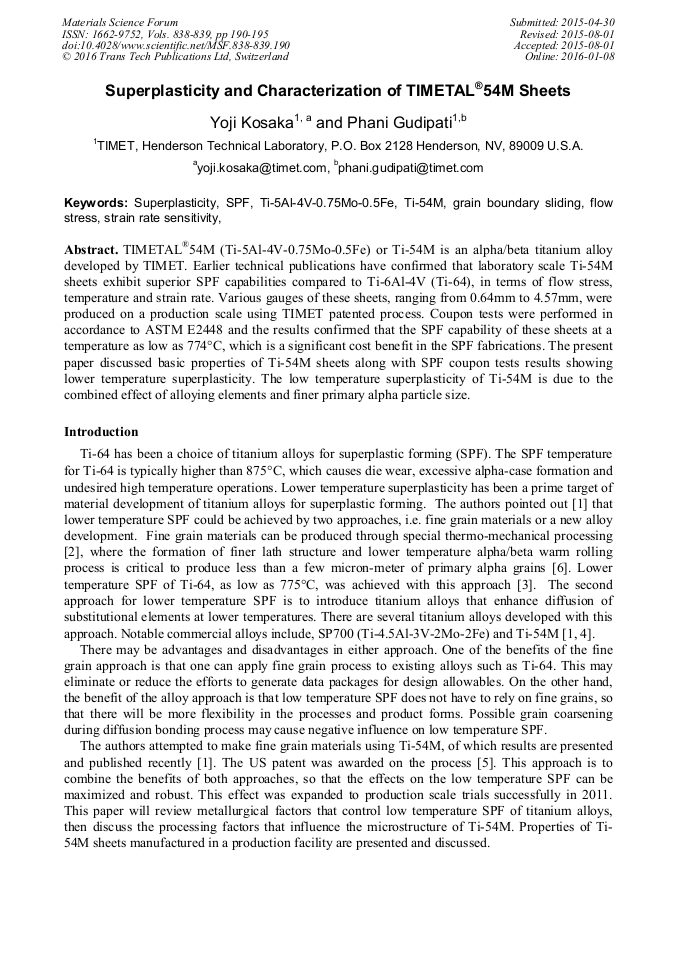

Superplasticity and Characterization of TIMETAL^®54M Sheets

Abstract:

TIMETAL^®54M (Ti-5Al-4V-0.75Mo-0.5Fe) or Ti-54M is an alpha/beta titanium alloy developed by TIMET. Earlier technical publications have confirmed that laboratory scale Ti-54M sheets exhibit superior SPF capabilities compared to Ti-6Al-4V (Ti-64), in terms of flow stress, temperature and strain rate. Various gauges of these sheets, ranging from 0.64mm to 4.57mm, were produced on a production scale using TIMET patented process. Coupon tests were performed in accordance to ASTM E2448 and the results confirmed that the SPF capability of these sheets at a temperature as low as 774°C, which is a significant cost benefit in the SPF fabrications. The present paper discussed basic properties of Ti-54M sheets along with SPF coupon tests results showing lower temperature superplasticity. The low temperature superplasticity of Ti-54M is due to the combined effect of alloying elements and finer primary alpha particle size.

You might also be interested in these eBooks

Superplasticity in Advanced Materials - ICSAM 2015

View Preview

Info:

Periodical:

Materials Science Forum (Volumes 838-839)

Pages:

190-195

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.838-839.190

Citation:

Cite this paper

Online since:

January 2016

Authors:

Yoji Kosaka*, Phani Gudipati

Keywords:

Flow Stress, Grain Boundary Sliding, SPF, Strain Rate Sensitivity, Superplasticity, Ti-54M, Ti-5Al-4V-0.75Mo-0.5Fe

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] Y. Kosaka and P. P. Gudipati, Superplastic Properties of Fine Grain TIMETAL®54M (Ti-5Al-4V-0. 75Mo-0. 5Fe), in Ti-2011 Proceedings of the 12th World Conference on Titanium, edited by L. Zhou et al, published by Science Press Beijing, 2012, p.1821.

DOI: 10.4028/www.scientific.net/kem.433.311

Google Scholar

[2] G.A. Salishchev, O.R. Valiakhmetov, R.M. Galeyev and F.H. Froes, Production of Submicron-Grained Ti-6Al-4V Sheets with Enhances Superplastic Properties., in Ti2003 Science and Technology, edited by C. Lutjering et. al., published by DGM, 2003, p.569.

DOI: 10.4028/www.scientific.net/msf.447-448.441

Google Scholar

[3] L. D. Hefti, Elevated Temperature Fabrication of Titanium Aerospace Components., Key Eng. Mater., vol. 433 (2010), p.49.

DOI: 10.4028/www.scientific.net/kem.433.49

Google Scholar

[4] US Patent Number US 6, 786, 985.

Google Scholar

[5] US Patent Number US 8, 551, 264.

Google Scholar

[6] H. Inagaki, Enhanced Superplasticity in High Strength Ti-Alloys. ", Z. Metalkd, vol. 87(1996), p.179.

Google Scholar

[7] Y. Kosaka and P. P. Gudipati, Superplastic Forming Properties of TIMETAL® 54M (Ti-5%Al-4%V-0. 6%Mo-0. 4%Fe) Sheets., Key Eng. Mater., vol. 433 (2010), p.311.

DOI: 10.4028/www.scientific.net/kem.433.311

Google Scholar

[8] H. Nakajima and M. Koiwa, Diffusion in Titanium., ISIJ International, vol. 31(1991), p.757.

Google Scholar

[9] P. P. Gudipati and Y. Kosaka, Diffusion Bonding of Similar and Dissimilar Titanium Alloys., to be published in the proceedings of Ti-2015 World Conference, in San Diego, U.S. A.

DOI: 10.1002/9781119296126.ch273

Google Scholar
