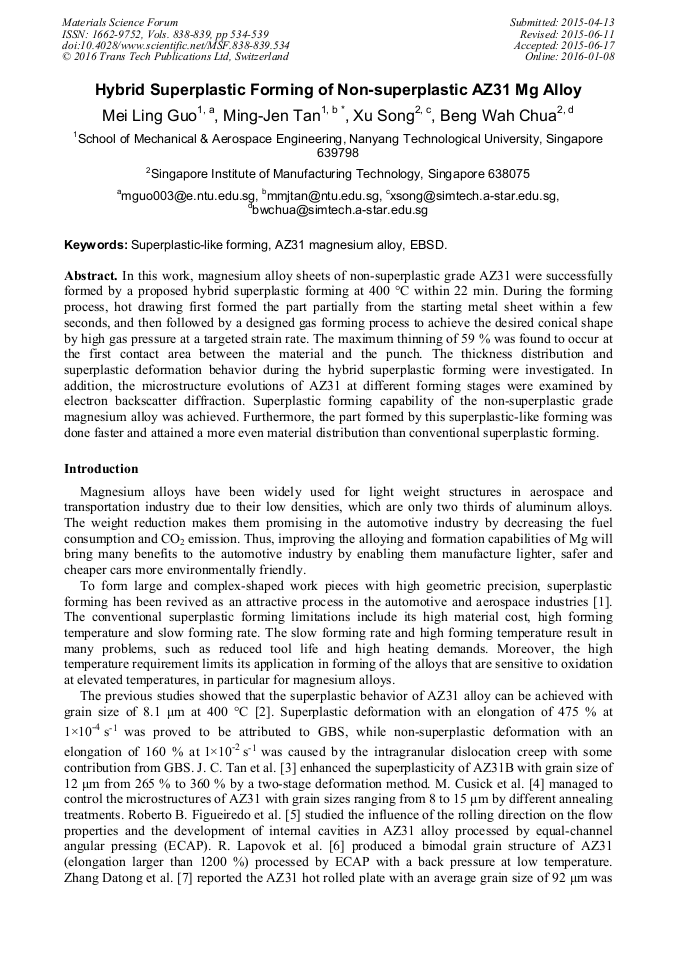

Hybrid Superplastic Forming of Non-Superplastic AZ31 Mg Alloy

Abstract:

In this work, magnesium alloy sheets of non-superplastic grade AZ31 were successfully formed by a proposed hybrid superplastic forming at 400 °C within 22 min. During the forming process, hot drawing first formed the part partially from the starting metal sheet within a few seconds, and then followed by a designed gas forming process to achieve the desired conical shape by high gas pressure at a targeted strain rate. The maximum thinning of 59 % was found to occur at the first contact area between the material and the punch. The thickness distribution and superplastic deformation behavior during the hybrid superplastic forming were investigated. In addition, the microstructure evolutions of AZ31 at different forming stages were examined by electron backscatter diffraction. Superplastic forming capability of the non-superplastic grade magnesium alloy was achieved. Furthermore, the part formed by this superplastic-like forming was done faster and attained a more even material distribution than conventional superplastic forming.

• Periodical: Materials Science Forum (Volumes 838-839)
• Pages: 534-539
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.838-839.534
• Online since: January 2016
• Authors: Mei Ling Guo, Ming Jen Tan*, Xu Song, Beng Wah Chua
• Keywords: AZ31 Magnesium Alloy, EBSD, Superplastic-Like Forming

References

[1] Barnes, A.J., Superplastic forming 40 years and still growing, J Mater Eng Perform. 16 (2007) 440-454.

DOI: 10.1007/s11665-007-9076-5

[2] Panicker, R., A.H. Chokshi, R.K. Mishra, R. Verma, and P.E. Krajewski, Microstructural evolution and grain boundary sliding in a superplastic magnesium AZ31 alloy, Acta Mater. 57 (2009) 3683-3693.

DOI: 10.1016/j.actamat.2009.04.011

[3] Tan, J.C. and M.J. Tan, Superplasticity and grain boundary sliding characteristics in two stage deformation of Mg-3Al-lZn alloy sheet, Mat Sci Eng A-Struct. 339 (2003) 81-89.

DOI: 10.1016/s0921-5093(02)00097-7

[4] Cusick, M., F. Abu-Farha, P. Lours, Y. Maoult, G. Bernhart, and M. Khraisheh, Superplastic forming of AZ31 magnesium alloy with controlled microstructure, Materialwiss Werkst. 43 (2012) 810-816.

DOI: 10.1002/mawe.201200035

[5] Figueiredo, R.B. and T.G. Langdon, Influence of rolling direction on flow and cavitation in a superplastic magnesium alloy processed by equal-channel angular pressing, Mat Sci Eng A-Struct. 556 (2012) 211-220.

DOI: 10.1016/j.msea.2012.06.079

[6] Lopovok, R., Y. Estrin, M.V. Popov, and T.G. Langdon, Enhanced superplasticity in a magnesium alloy processed by equal-channel angular pressing with a back-pressure, Adv Eng Mater. 10 (2008) 429-433.

DOI: 10.1002/adem.200700363

[7] Zhang, D.T., F. Xiong, W.W. Zhang, C. Qiu, and W. Zhang, Superplasticity of AZ31 magnesium alloy prepared by friction stir processing, T Nonferr Metal Soc. 21 (2011) 1911-(1916).

DOI: 10.1016/s1003-6326(11)60949-7

[8] Luo, Y., S.G. Luckey, P.A. Friedman, and Y. Peng, Development of an advanced superplastic forming process utilizing a mechanical pre-forming operation, Int J Mach Tool Manu. 48 (2008) 1509-1518.

DOI: 10.1016/j.ijmachtools.2007.12.010

[9] Liu, J., M.J. Tan, A.E.W. Jarfors, S.C.V. Lim, K.S. Fong, and S. Castagne, Greener manufacturing: Superplastic-like forming, Eco-Mates 2011. (2012) 379.

DOI: 10.1088/1742-6596/379/1/012034

[10] Liu, J., M.J. Tan, Y. Aue-U-Lan, A.E.W. Jarfors, K.S. Fong, and S. Castagne, Superplastic-like forming of non-superplastic AA5083 combined with mechanical pre-forming, Int J Adv Manuf Tech. 52 (2011) 123-129.

DOI: 10.1007/s00170-010-2729-9

[11] Liu, J., M.J. Tan, S. Castagne, and S.C.V. Lim, EBSD Study of Microstructure Development during Superplastic-like Forming, Mater Sci Forum. 735 (2013) 37-42.

DOI: 10.4028/www.scientific.net/msf.735.37

[12] Nave, M.D. and M.R. Barnett, Microstructures and textures of pure magnesium deformed in plane-strain compression, Scripta Mater. 51 (2004) 881-885.

DOI: 10.1016/j.scriptamat.2004.07.002

[13] Koike, J., T. Kobayashi, T. Mukai, H. Watanabe, M. Suzuki, K. Maruyama, and K. Higashi, The activity of non-basal slip systems and dynamic recovery at room temperature in fine-grained AZ31B magnesium alloys, Acta Mater. 51 (2003) 2055-(2065).

DOI: 10.1016/s1359-6454(03)00005-3
