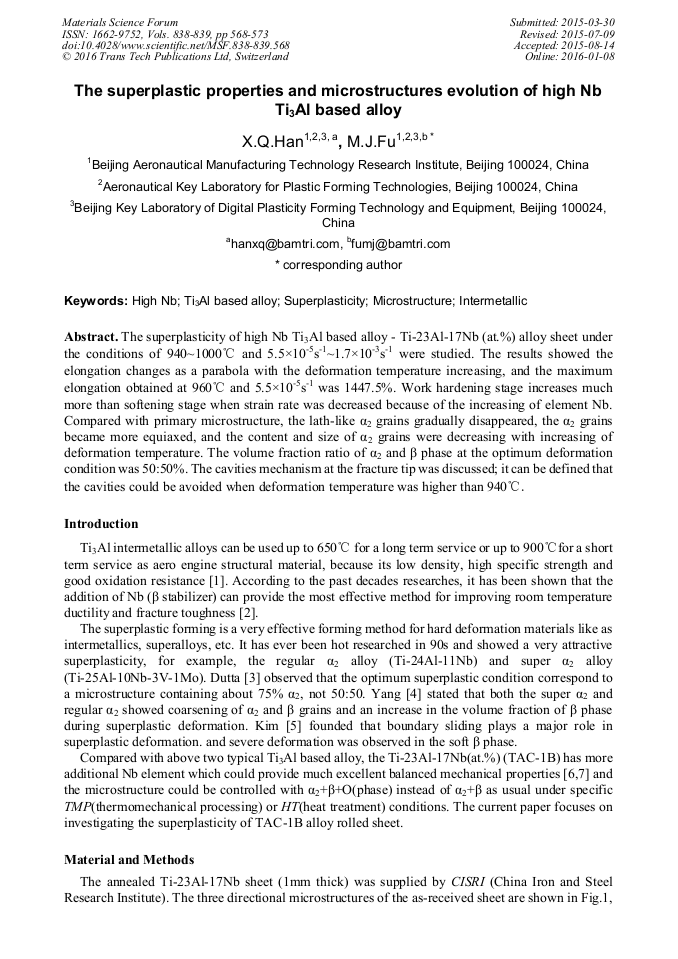

The Superplastic Properties and Microstructures Evolution of High Nb Ti₃Al Based Alloy

Abstract:

The superplasticity of high Nb Ti₃Al based alloy - Ti-23Al-17Nb (at.%) alloy sheet under the conditions of 940~1000°C and 5.5×10^-5s^-1~1.7×10^-3s^-1are studied. The results show the elongation changes as a parabola with the deformation temperature increasing, and the maximum elongation obtained at 960°C and 5.5x10^-5s^-1 is 1447.5%. Work hardening stage increases much more than softening stage when strain rate is decreased due to the increasing of element Nb. Compared with primary microstructure, the lath-like α₂ grains gradually disappeared, the α₂ grains became more equiaxed, and the content and size of α₂ grains are decreasing with increasing of deformation temperature. The volume fraction ratio of α₂ and β phase at the optimum deformation condition is 50:50%. The cavities mechanism at the fracture tip was discussed; it can be defined that the cavities could be avoided when deformation temperature is higher than 940°C.

• Periodical: Materials Science Forum (Volumes 838-839)
• Pages: 568-573
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.838-839.568
• Online since: January 2016
• Authors: Xiu Quan Han, Ming Jie Fu*
• Keywords: High Nb, Intermetallic, Microstructure, Superplasticity, Ti₃Al Based Alloy

References

[1] J.W. Zhang, S.Q. Li, X.B. Liang, Y.J. Cheng, Research and application of Ti3Al and Ti2AlNb based alloys, Chinese J. Nonfer. Metals. 20(s. 1)(2010)s336-341.

[2] S.Q. Li, J.W. Zhang, Y.J. Cheng, X.B. Liang, Current status on development of Ti3Al and Ti2AlNb intermetallic structural materials, Rare Metal Mater. Eng. 34(s. 3)(2005)104-109.

[3] A. Dutta, D. Banerjee, Superplastic behaviour in a Ti3Al-Nb alloy, Scpripta Metall. Mater. 24(1990)1319-1322.

DOI: 10.1016/0956-716x(90)90349-l

[4] H.S. Yang, P. Jin, A.K. Mukherjee, Superplastic behavior of regular α2 and super α2 titanium aluminides, Mater. Sci. Eng. A153(1992)457-464.

DOI: 10.1016/b978-1-85166-822-9.50074-1

[5] J.H. Kim, C.G. Park, T.K. Ha, Y.W. Chang, Microscopic observation of superplastic deformation in a2-phase Ti3Al-Nb alloy, Mater. Sci. Eng. A269(1999)197-204.

DOI: 10.1016/s0921-5093(99)00141-0

[6] Y.J. Cheng, J.T. Han, J.W. Zhang, X.B. Liang, Microstructure and properties of Ti-23Al-17Nb alloy foring disk, Chinese J. Nonfer. Metals. 20(s. 1)(2010)s215-218.

[7] J.W. Zhang, H.S. Zhang, X.C. Zhang, X.B. Liang, Y.J. Cheng, S.Q. Li, Control of duplex- microstructure and its effect on mechanical properties of Ti-23Al-17Nb alloys, Rare Metal Mater. Eng. 39(2)(2010)372-376.

[8] H.C. Fu, J.C. Huang, T.D. Wang, C.C. Bampton, Evolution of microstructure and superplastic deformation mechanism in super α2 Ti3Al base alloys, Acta Mater. 46(2)(1998)465-479.

DOI: 10.1016/s1359-6454(97)00278-4

[9] C.S. Liauo, H.C. Fu, I.C. Hsiao, J.C. Huang, On the β-transus and order/disorder transition temperature in superplastic super α2 Ti3Al base alloy, Mater. Sci. Eng. A(1999)275-285.

DOI: 10.1016/s0921-5093(99)00215-4

[10] Y.T. Wu, C.H. Koo, Effects of texture on the superplasticity of Ti-25Al-10Nb alloy, Intermetallics. 5(1997)29-36.

DOI: 10.1016/s0966-9795(96)00062-3

[11] R. Imayev, N. Gabdullin, G. Salishchev, Effect of grain size on superplasticity of an intermetallic Ti3Al compound, Intermetallics. 5(1997)229-236.

DOI: 10.1016/s0966-9795(96)00085-4

[12] M.J. Fu, X.Q. Han, W. Wu, J.W. Zhang, Superplasticity Research of Ti-23Al-17Nb, Acta Metall. Sin. 50(8)(2014)955-961.

[13] J.W. Zhang, L.S. Qiong, C.Y. Jun, Microstructure and texture of hot rolled sheet of Ti-23Al-17Nb, New progress of material science and engineering in China. (2002)2034-(2039).

[14] L.A. Bendersky, W.J. Boettinger, A. Roytburd, Proceedings of international symposium on intermetallic compounds, Sendai: JIM. 1991: 845.
