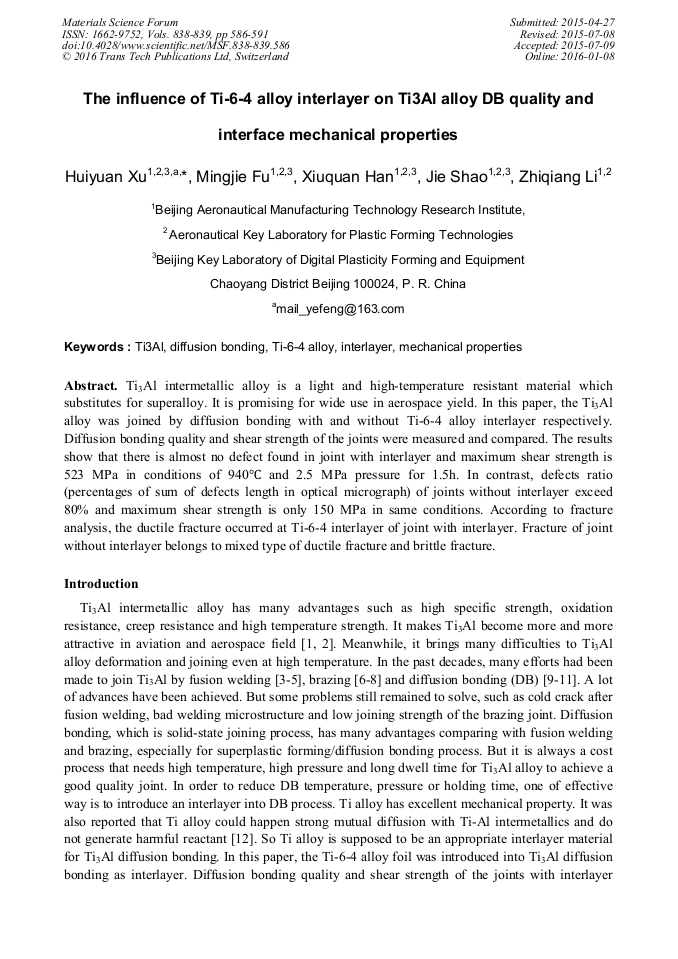

The Influence of Ti-6-4 Alloy Interlayer on Ti3Al Alloy DB Quality and Interface Mechanical Properties

Abstract:

Ti₃Al intermetallic alloy is a light and high-temperature resistant material which substitutes for superalloy. It is promising for wide use in aerospace yield. In this paper, the Ti₃Al alloy was joined by diffusion bonding with and without Ti-6-4 alloy interlayer respectively. Diffusion bonding quality and shear strength of the joints were measured and compared. The results show that there was almost no defect found in joints with interlayer and maximum shear strength is 523 MPa in conditions of 940°C and 2.5 MPa pressure for 1.5h. In contrast, defect rate (percentages of sum of defects length in optical micrograph) of joints without interlayer exceeds 80% and maximum shear strength is only 150 MPa in same conditions. According to fracture analysis, the ductile fracture occurred at Ti-6-4 interlayer of joint with interlayer. Fracture of joint without interlayer belongs to mixed type of ductile fracture and brittle fracture.

• Periodical: Materials Science Forum (Volumes 838-839)
• Pages: 586-591
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.838-839.586
• Online since: January 2016
• Authors: Hui Yuan Xu*, Ming Jie Fu, Xiu Quan Han, Jie Shao, Zhi Qiang Li
• Keywords: Diffusion Bonding, Interlayer, Mechanical Properties, Ti₃Al, Ti-6-4 Alloy

References

[1] S. Djanarthany, J. -C. Viala, J. Bouix, An overview of monolithic titanium aluminides based on Ti3Al and TiAl, Materials Chemistry and Physics 72 (2001) 301–319.

DOI: 10.1016/s0254-0584(01)00328-5

[2] Y. Rosenberg, A.K. Mukherjee. The superplastic properties of a Ti3Al-Nb alloy Materials Science and Engineering A192/193 (1995) 788-792.

DOI: 10.1016/0921-5093(95)03315-7

[3] Liu Yingying，Yao Zekun，Guo Hongzhen，Progress in studying on superplasticity of Ti3Al intermetallic compound, Journal of Materials Engineering 4(2008) 65-69.

[4] Bingqing Chen, Huaping Xiong, Bingbing Sun, Siyi Tang, Borui Du, Neng Li, Microstructures and mechanical properties of Ti3Al/Ni-based superalloy joints arc welded with Ti–Nb and Ti–Ni–Nb filler alloys, Progress in NaturalScience: MaterialsInternational24(2014).

DOI: 10.1016/j.pnsc.2014.06.003

[5] Bingqing Chen, Huaping Xiong, Bingbing Sun, Siyi Tang, Shaoqing Guo, Xuejun Zhang, Microstructure Evolution and Tensile Properties of Ti3Al/Ni-based Superalloy Welded Joint, J. Mater. Sci. Technol., 2014, 30(7), 715-721.

DOI: 10.1016/j.jmst.2014.06.004

[6] P. He, J.C. Feng, H. Zhou，Microstructure and strength of brazed joints of Ti3Al-base alloy with different filler metals，Materials Characterization 54 (2005) 338– 346.

DOI: 10.1016/j.matchar.2004.12.003

[7] R.K. Shiue, S.K. Wu*, Y.T. Chen, Strong bonding of infrared brazed a2-Ti3Al and Ti–6Al–4V using Ti–Cu–Ni fillers, Intermetallics 18 (2010) 107–108 07–114.

DOI: 10.1016/j.intermet.2009.06.017

[8] P. He, J.C. Feng, H. Zhou, Microstructure and strength of brazed joints of Ti3Al-base alloy with TiZrNiCu filler metal, Materials Science and Engineering A 392 (2005) 81–86.

DOI: 10.1016/j.msea.2004.07.068

[9] Yi Guo, Jinman Zhu, Zhijing He, Pifen Lian and Qiang Wu, Diffusion bonding of Ti3Al based alloy, Journal of Materials Science and Technology, 1996; 12( 6): 467.

[10] Peng HE, Jicai FENG, Yi yu QIAN, Analysis of diffusion bond interface of TiAl base alloy with Ti, TC4 alloy and 40Cr steel, Journal of Harbin Institute of Technology (New Series) , Vol . 7, No. 2, (2000).

[11] Erhu Xie, Guisheng Zou, Hailin Bai, Aiping Wu, Qing Wang, Jialie Ren, Diffusion bonding of high Nb-content Ti3Al-based alloy, J Tsinghua Univ (Sci&Tech), 2007, Vo l. 47, No. 11.

[12] Ridley N. Superplastic behavior and diffusion of a titanium aluminide alloy. In: Proc. int. confo high temperature intermetallics, London, InstituteM e tals, 1991: 198.

[13] Gu Xiaoyan, Sun Daqian, Liu Li , Duan Zhenzhen, Microstructural Evolution of TLP Bonded Ti3Al Based Alloy/ T i6Al4V Joint, Journal of Materials Engineering 2010 No. 6 pp.59-67.

[14] Zhang Qinglai, Bondarev AB, AndreevVA, Wang Lili, Han Weidong, Influence of heat treatment on microstructure and properties of Ti-Al-Nb based alloys, HEAT TREATMENT OF METALS Vol. 34 No. 5 May (2009).

[15] Dong-Geun Leea, Yang Gon Kima, Duk-Hyun Nama, Sun-Moo Hurb, Sunghak Lee Dynamic deformation behavior and ballistic performance of Ti–6Al–4V alloy containing fine α2 (Ti3Al) precipitates, Materials Science and Engineering A 391 (2005) 221–234.

DOI: 10.1016/j.msea.2004.08.076
