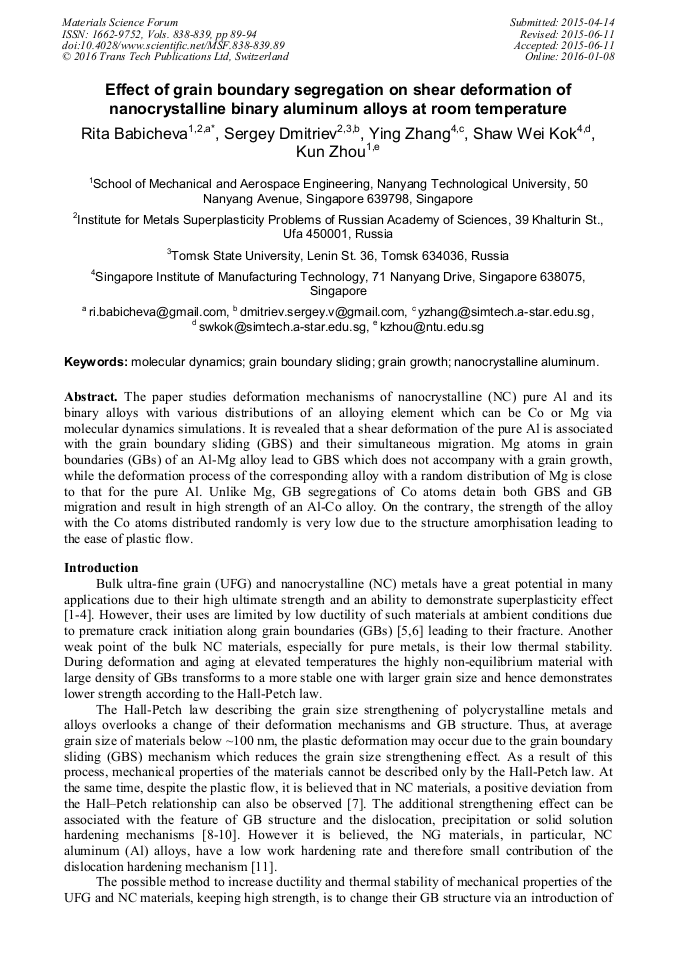

Effect of Grain Boundary Segregation on Shear Deformation of Nanocrystalline Binary Aluminum Alloys at Room Temperature

Abstract:

The paper studies deformation mechanisms of nanocrystalline (NC) pure Al and its binary alloys with various distributions of an alloying element which can be Co or Mg via molecular dynamics simulations. It is revealed that a shear deformation of the pure Al is associated with the grain boundary sliding (GBS) and their simultaneous migration. Mg atoms in grain boundaries (GBs) of an Al-Mg alloy lead to GBS which does not accompany with a grain growth, while the deformation process of the corresponding alloy with a random distribution of Mg is close to that for the pure Al. Unlike Mg, GB segregations of Co atoms detain both GBS and GB migration and result in high strength of an Al-Co alloy. On the contrary, the strength of the alloy with the Co atoms distributed randomly is very low due to the structure amorphisation leading to the ease of plastic flow.

• Periodical: Materials Science Forum (Volumes 838-839)
• Pages: 89-94
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.838-839.89
• Online since: January 2016
• Authors: Rita Babicheva*, Sergey V. Dmitriev, Ying Zhang, Shaw Wei Kok, Kun Zhou
• Keywords: Grain Boundary Sliding, Grain Growth, Molecular Dynamics, Nanocrystalline Aluminum

References

[1] Y. Estrin, A. Vinogradov, Extreme grain refinement by severe plastic deformation: A wealth of challenging science, Acta Mater. 61 (2013) 782–817.

DOI: 10.1016/j.actamat.2012.10.038

[2] O. Sitdikov, E. Avtokratova, R. Babicheva, T. Sakai, K. Tsuzaki, Y. Watanabe, Influence of processing regimes on fine-grained microstructure development in an AlMgSc alloy by hot equal-channel angular pressing, Mater. Trans. 53(1) (2012) 56–62.

DOI: 10.2320/matertrans.md201108

[3] M. Zehetbauer, R. Grössinger, H. Krenn, M. Krystian, R. Pippan, P. Rogl, T. Waitz, R. Würschum, Bulk nanostructured functional materials by severe plastic deformation, Adv. Eng. Mater. 12(8) (2010) 692–700.

DOI: 10.1002/adem.201000119

[4] R.Z. Valiev, I. Sabirov, A.P. Zhilyaev, T.G. Langdon, Bulk nanostructured metals for innovative applications, JOM 64(10) (2012) 1134–1142.

DOI: 10.1007/s11837-012-0427-9

[5] A. Abdollahi, I. Arias, Numerical simulation of intergranular and transgranular crack propagation in ferroelectric polycrystals, Int. J. Fract. 174 (2012) 3–15.

DOI: 10.1007/s10704-011-9664-0

[6] V. Yamakov, E. Saether, E. H. Glaessgen, Multiscale modeling of intergranular fracture in aluminum: constitutive relation for interface debonding, J. Mater. Sci. 43 (2008) 7488–7494.

DOI: 10.1007/s10853-008-2823-7

[7] H.J. Choi, S.W. Lee, J.S. Park, D.H. Bae, Tensile behavior of bulk nanocrystalline aluminum synthesized by hot extrusion of ball-milled powders, Scripta Mater. 59 (2008) 1123–1126.

DOI: 10.1016/j.scriptamat.2008.07.030

[8] I. Sabirov, M. Yu. Murashkin, R.Z. Valiev, Nanostructured aluminium alloys produced by severe plastic deformation: New horizons in development, Mater. Sci. Eng. A560 (2013) 1–24.

DOI: 10.1016/j.msea.2012.09.020

[9] T.D. Topping, B. Ahn, Y. Li, S.R. Nutt, E.J. Lavernia, Influence of process parameters on the mechanical behavior of an ultrafine-grained Al alloy, Metall. Mater. Trans. A43 (2012) 505–519.

DOI: 10.1007/s11661-011-0849-y

[10] Y. Li, Y.H. Zhao, V. Ortalan, W. Liu, Z.H. Zhang, R.G. Vogt, N.D. Browning, E.J. Lavernia, J.M. Schoenung, Investigation of aluminum-based nanocomposites with ultra-high strength, Mater. Sci. Eng. A527 (2009) 305–316.

DOI: 10.1016/j.msea.2009.07.067

[11] B.Q. Han, E.J. Lavernia, Deformation mechanisms of nanostructured Al alloys, Adv. Eng. Mater. 7(6) (2005) 457–465.

DOI: 10.1002/adem.200400219

[12] G. Sha, S.P. Ringer, Z.C. Duan, T.G. Langdon, An atom probe characterisation of grain boundaries in an aluminium alloy processed by equal-channel angular pressing, Int. J. Mater. Res. 100 (2009) 1674–1678.

DOI: 10.3139/146.110227

[13] R.Z. Valiev, N.A. Enikeev, M. Yu. Murashkin, V.U. Kazykhanov, X. Sauvage, On the origin of the extremely high strength of ultrafine-grained Al alloys produced by severe plastic deformation, Scripta Mater. 63(9) (2010) 949–952.

DOI: 10.1016/j.scriptamat.2010.07.014

[14] R.I. Babicheva, S.V. Dmitriev, Y. Zhang, S.W. Kok, N. Srikanth, B. Liu, K. Zhou, Effect of GB segregations of Fe, Co, Cu, Ti, Mg and Pb on small plastic deformation of nanocrystalline Al, Comput. Mater. Sci. 98 (2015) 410–416.

DOI: 10.1016/j.commatsci.2014.11.038

[15] R.I. Babicheva, S.V. Dmitriev, Y. Zhang, S.W. Kok, K. Zhou, Effect of Co Distribution on Plastic Deformation of Nanocrystalline Al-10. 2 at. % Co Alloy, J. Nanomat. (2015), Article ID 231848, 8 pages, http: /dx. doi. org/10. 1155/2015/231848.

DOI: 10.1155/2015/231848
