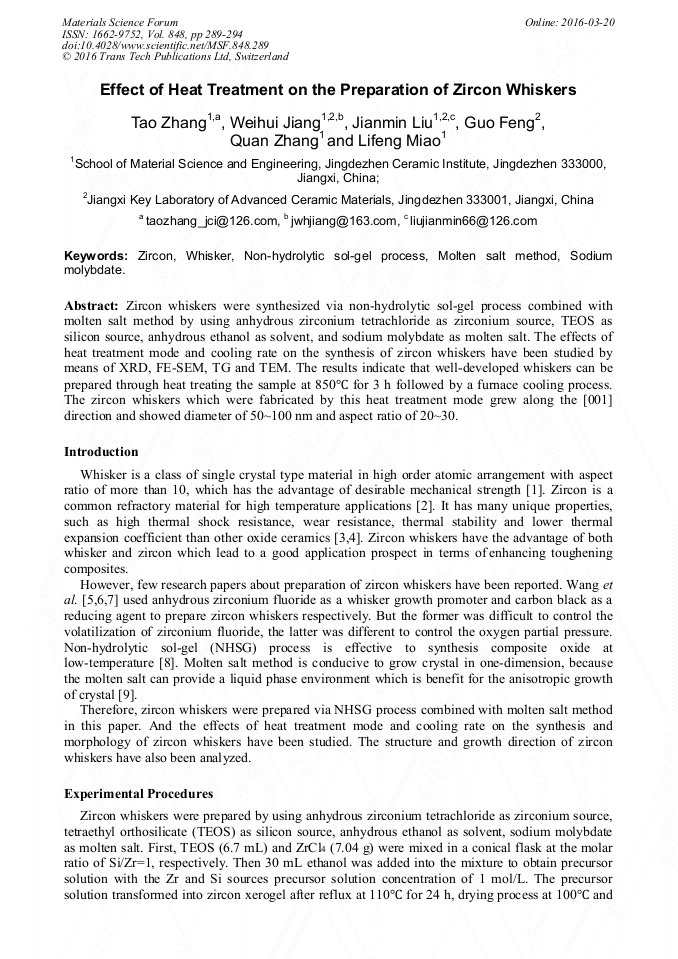

Effect of Heat Treatment on the Preparation of Zircon Whiskers

Abstract:

Zircon whiskers were synthesized via non-hydrolytic sol-gel process combined with molten salt method by using anhydrous zirconium tetrachloride as zirconium source, TEOS as silicon source, anhydrous ethanol as solvent, and sodium molybdate as molten salt. The effects of heat treatment mode and cooling rate on the synthesis of zircon whiskers have been studied by means of XRD, FE-SEM, TG and TEM. The results indicate that well-developed whiskers can be prepared through heat treating the sample at 850°C for 3 h followed by a furnace cooling process. The zircon whiskers which were fabricated by this heat treatment mode grew along the [001] direction and showed diameter of 50~100 nm and aspect ratio of 20~30.

• Periodical: Materials Science Forum (Volume 848)
• Pages: 289-294
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.848.289
• Online since: March 2016
• Authors: Tao Zhang, Wei Hui Jiang, Jian Min Liu, Guo Feng, Quan Zhang, Li Feng Miao
• Keywords: Molten Salt Method, Non-Hydrolytic Sol-Gel Process, Sodium Molybdate, Whisker, Zircon

References

[1] F. Liu, T. Li, X. D. Wang. Influence of hydrothermal conditions on ultra-light calcium silicate material in situ strengthened with xonotlite whiskers, Adv. Mater. Res. 648 (2013): 139-142.

DOI: 10.4028/www.scientific.net/amr.648.139

[2] C. Veytizou, J. F. Quinson, Y. Jorand. Preparation of zircon bodies from amorphous precursor powder synthesized by sol-gel processing, J. Eur. Ceram. Soc. 22 (2002): 2901-2909.

DOI: 10.1016/s0955-2219(02)00038-9

[3] Y. Kanno, Thermodynamic and crystallographic discussion of the formation and dissociation of zircon, J. Mater. Sci, 24 (1989): 2415-2420.

DOI: 10.1007/bf01174504

[4] W. H. Jiang, S. Cheng, Q. X. Zhu, Effects of solvents on synthesis and dispersion of zircon powder via non-hydrolytic sol-gel route, Key Eng. Mater. 512 (2012): 54-58.

DOI: 10.4028/www.scientific.net/kem.512-515.54

[5] S. H. Wang, W. H. Jiang, G. Feng, Preliminary study on zirconium silicate whiskers prepared by NHSG method, J. Synth. Cryst. 43 (2014): 1206-1211.

[6] S. H. Wang, W. H. Jiang, G. Feng, Preparation of zircon whisker by non-hydrolytic sol-gel method, J. Chin. Ceram. Soc, 43 (2015): 322-326.

[7] S. H. Wang, W. H. Jiang, G. Feng, Preparation of zircon whisker using carbon black as reducing agent, J. Inorg. Mater. 29 (2014): 835-838.

[8] Y. Dimitriev, Y. Ivanova, and R. Iordanova, History of sol-gel science and technology, J. UCTM. 43 (2008) 181-192.

[9] J. F. Hou, Z. J. Wu, Y. T. Wang, and M. F. Bi, Research progress in preparation of anisometric single-crystal particles by molten salt synthesis method, China Ceram. 2 (2012) 1-3.

[10] K. Yoon, Y Cho, D. Kang, Molten salt synthesis of lead-based relaxors, J. Mater. Sci. 33 (1998): 2977-2984.

DOI: 10.1023/a:1004310931643

[11] S.L. Wang, Y.J. Fu, X Sun, Y.P. Li, KDP crystal growth by decreasing temperature using supersaturation-control system, J. Inorg. Mater. 16 (2001): 37-44.
