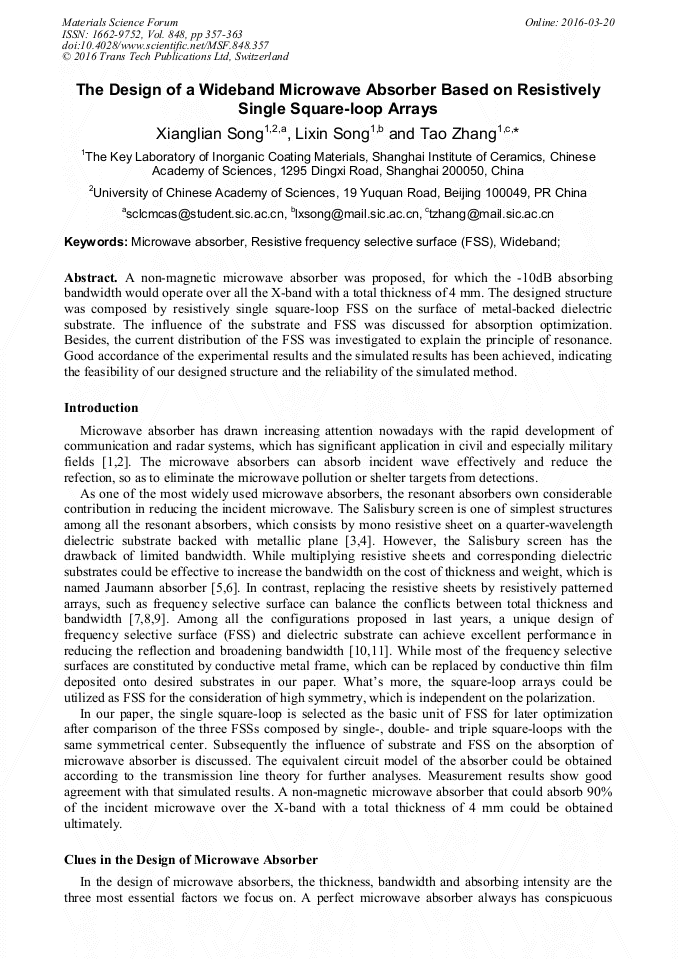

The Design of a Wideband Microwave Absorber Based on Resistively Single Square-Loop Arrays

Abstract:

A non-magnetic microwave absorber was proposed, for which the-10dB absorbing bandwidth would operate over all the X-band with a total thickness of 4 mm. The designed structure was composed by resistively single square-loop FSS on the surface of metal-backed dielectric substrate. The influence of the substrate and FSS was discussed for absorption optimization. Besides, the current distribution of the FSS was investigated to explain the principle of resonance. Good accordance of the experimental results and the simulated results has been achieved, indicating the feasibility of our designed structure and the reliability of the simulated method.

• Periodical: Materials Science Forum (Volume 848)
• Pages: 357-363
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.848.357
• Online since: March 2016
• Authors: Xiang Lian Song, Li Xin Song, Tao Zhang
• Keywords: Microwave Absorber, Resistive Frequency Selective Surface (FSS), Wideband

References

[1] M. A. Alves, R. J. Port, and M. C. Rezende, Simulation of the radar cross section of a stealth aircraft, Microwave and optoelectronics conference, 2007, pp.409-412.

DOI: 10.1109/imoc.2007.4404292

[2] F. Qin and C. Brosseau, A review and analysis of microwave absorption in polymer composites filled with carbonaceous particles, J Appl Phys. 111 (2012), 061301.

DOI: 10.1063/1.3688435

[3] K. Jin-Bong and B. Joon-Hyung, Salisbury screen absorbers of dielectric lossy sheets of carbon Nanocomposite laminates, IEEE T ELECTROMAGN C. 54 (2012), 37-42.

DOI: 10.1109/temc.2011.2172983

[4] F. C. Smith, Design principles of broadband adaptive Salisbury screen absorber, ELECTRON LETT. 38 (2002), 1052-1054.

DOI: 10.1049/el:20020699

[5] A. Motevasselian and B. L. G. Jonsson, A partially transparent joumann absorber applied to an aircraft wing profile, Antennas and Propagation Society International Symposium, 2010, pp: 1-4.

DOI: 10.1109/aps.2010.5561759

[6] B. A. Munk, P. Munk, and J. Pryor, On the designing jaumann and circuit analog absorbers (CA absorbers) for oblique angle of incidence, IEEE T ANTENN PROPAG. 55 (2007) 186-193.

DOI: 10.1109/tap.2006.888395

[7] A. Kazemzadeh and A. Karlsson, Multilayered wideband absorbers for oblique angle of incidence, IEEE T ANTENN PROPAG. 58 (2010), 3637-3646.

DOI: 10.1109/tap.2010.2071366

[8] A. Kazemzadeh, The wideband absorber with optimal thickness, 20th URSI International Symposium on Electromagnetic Theory, 2010, pp.676-679.

DOI: 10.1109/ursi-emts.2010.5637290

[9] A. K. Rashid, Z. Shen, and R. Mittra, On the optimal design of a single-layer thin wideband radar absorber, IEEE International Symposium on Antennas and Propagation and USNC/URSI National Radio Science Meeting, 2011, pp: 2916-2919.

DOI: 10.1109/aps.2011.5997138

[10] G. D. Wang, M. H. Liu, X. W. Hu, L. H. Kong, L. L. Cheng, and Z. Q. Chen, Broadband and ultra-thin terahertz metamaterial absorber based on multi-circular patches, European Physical Journal B. 86 (2013).

DOI: 10.1140/epjb/e2013-30879-7

[11] C. Sudhendra, A. Phillai, A. Madhu, K. Rao, A novel 6 to 14 GHz thin radar absorber based on circular resistive patch FSS, Circuits, control and communications, 2013, pp: 1-4.

DOI: 10.1109/ccube.2013.6718574
