HomeMaterials Science ForumMaterials Science Forum Vol. 848Synthesis and Characterization of Magnetic...

Synthesis and Characterization of Magnetic Fe₃O₄/PAAm/LMSH Nanocomposite Hydrogel

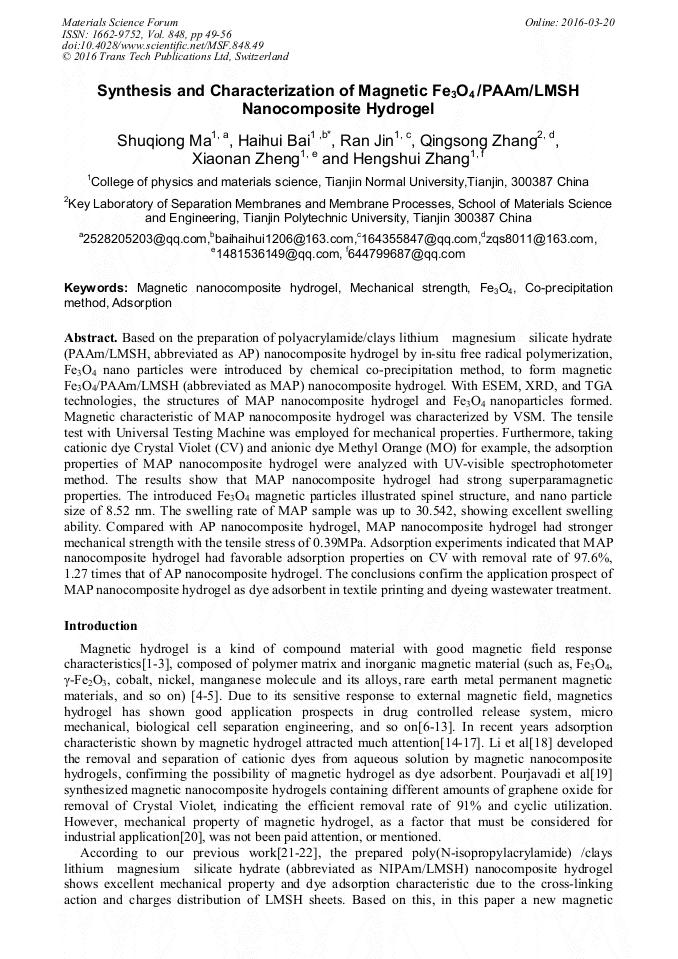

Article Preview

Abstract:

Based on the preparation of polyacrylamide/clays lithium magnesium silicate hydrate (PAAm/LMSH, abbreviated as AP) nanocomposite hydrogel by in-situ free radical polymerization, Fe₃O₄ nanoparticles were introduced by chemical co-precipitation method, to form magnetic Fe₃O₄/PAAm/LMSH (abbreviated as MAP) nanocomposite hydrogel. With ESEM, XRD, and TGA technologies, the structures of MAP nanocomposite hydrogel and Fe₃O₄ nanoparticles formed. Magnetic characteristic of MAP nanocomposite hydrogel was characterized by VSM. The tensile test with Universal Testing Machine was employed for mechanical properties. Furthermore, taking cationic dye Crystal Violet (CV) and anionic dye Methyl Orange (MO) for example, the adsorption properties of MAP nanocomposite hydrogel were analyzed with UV-visible spectrophotometer method. The results show that MAP nanocomposite hydrogel had strong superparamagnetic properties. The introduced Fe₃O₄ magnetic particles illustrated spinel structure, and nanoparticle size of 8.52 nm. The swelling rate of MAP sample was up to 30.542, showing excellent swelling ability. Compared with AP nanocomposite hydrogel, MAP nanocomposite hydrogel had stronger mechanical strength with the tensile stress of 0.39MPa. Adsorption experiments indicated that MAP nanocomposite hydrogel had favorable adsorption properties on CV with removal rate of 97.6%, 1.27 times that of AP nanocomposite hydrogel. The conclusions confirm the application prospect of MAP nanocomposite hydrogel as dye adsorbent in textile printing and dyeing wastewater treatment.

You might also be interested in these eBooks

Functional and Functionally Structured Materials

Info:

Periodical:

Materials Science Forum (Volume 848)

Pages:

49-56

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.848.49

Citation:

Cite this paper

Online since:

March 2016

Authors:

Shu Qiong Ma, Hai Hui Bai, Ran Jin, Qing Song Zhang, Xiao Nan Zheng, Heng Shui Zhang

Keywords:

Adsorption, Co-Precipitation Method, Fe₃O₄, Magnetic Nanocomposite Hydrogel, Mechanical Strength

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2016 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] Bi M, Hao H, Li T, et al., Smart hydrogel latest developments, J. Ion Exch. Adsorpt. 24(2008)188-192.

[2] Liu H, Wang C, Gao Q, Liu X, et al., Magnetic hydrogels with supracolloidal structures prepared by suspension polymerization stabilized by Fe2O3 nano particles, J. Acta Biomater. 6(2010)275-281.

DOI: 10.1016/j.actbio.2009.06.018

[3] Sui X. W, Huang J. H, Ta B. L, et al., Polyacrylamide hydrogel magnetic interpenetrating modified, J. Mat. Sci. Eng. 33(2015)51-55.

[4] Rao S. Q, Xu Z. S, Lu G. H, et al. Progress in preparation and application of magnetic hydrogels, J. New Chem. Mater. 41(2013)187-190.

[5] Gao Y. Z, Wang M, Yan F. Y, et al. Preparing composite of hydrogels with metal nano particles and its application as catalyst, J. Prog. Chem. 6(2014) 626-637.

[6] Alexandre T, Paulino. Marcos R, Guilherme. Elisangela A.M.S. de Almeida, et al. One-pot synthesis of a chitosan-based hydrogel as a potential device for magnetic biomaterial, J. Magn. Magn. Mater. 321(2009)2636-2642.

DOI: 10.1016/j.jmmm.2009.03.078

[7] Ding, X. B, Sun, Z. H, Wan, G. X, Jiang, Y. Y. Interactions between thermosensitive magnetic polymer micro spheres and proteins, J. Acta Polym. Sin. 1(2000)9-13.

[8] Xiang M, Zheng Z. W, Wang H. L, He C. C, Research progress in magnetic field-sensitive hydrogel, J. Chin. Polym. Bull. 3(2010)16-22.

[9] Qin J, Asempah I, Laurent S, et al. Injectable superparamagnetic ferrogels for controlled release of hydrophobic drugs, J. Adv. Mater. 21(2009) 1354-1357.

DOI: 10.1002/adma.200800764

[10] Ramanujan R. V, Lao L. L, The mechanical behavior of smart magnet–hydrogel composites, J. Smart Mater. Struct. 15( 2006) 952-956.

DOI: 10.1088/0964-1726/15/4/008

[11] Xiang, M, He, C. C, Wang, H. L, Magnetic polyacrylamide/Fe3O4 nanocomposite hydrogel with high mechanical strength, J. Acta Phys. Chim. Sin. 27(2011)1267-1272.

[12] Zhang H. R, Liu W. T, He S. Q, et al. Research progress in magnetic hydrogels, J. Mater. Rev. 23(2009)106-110.

[13] Lu C, Zha L. S, Progress in response to sexual stimulation intelligent nano-hydrogels, J. Funct. Polym. 25(2012)212-220.

[14] Mahdavinia G. R., Massoudi A., Baghban A., Shokri E., Study of adsorption of cationic dye on magnetic kappa-carrageenan/PVA nanocomposite hydrogels, Environ. Chem. Eng. J. 2(2014)1578-1587.

DOI: 10.1016/j.jece.2014.05.020

[15] Sun X. F., Liu B.C., Jing Z.X., Wang H.H., Preparation and adsorption property of xylan/poly(acrylic acid) magnetic nanocomposite hydrogel adsorbent, J. Carbohyd. Polym. 118(2015)16-23.

DOI: 10.1016/j.carbpol.2014.11.013

[16] Bonetto L.R., Ferrarini F., De Marco C., Crespo J.S., Gu´egan R´egis, Giovanela M., Removal of methyl violet 2B dye from aqueous solution using a magnetic composite as an adsorbent, J. Water Process Eng. 6(2015)11-20.

DOI: 10.1016/j.jwpe.2015.02.006

[17] Sudha Vani J., Madhusudhna Rao K., Siva Gangi Reddy N., Krishna Rao K.S.V., Synthesis and characterization of sodium carboxy methyl cellulose/poly (acrylamide) magnetic nano composite semi ipn's for removal of heavy metal ions, J. Nano Sci. Technol. 2(2013).

[18] Li S.F., Liu X.L., Huang W.D., Li W., Xia X.Y., Yan S.L., Yu J.Y., Magnetically assisted removal and separation of cationic dyes from aqueous solution by magnetic nanocomposite hydrogels, J. Polym. Adv. Technol. 22(2011)1-9.

DOI: 10.1002/pat.1782

[19] Pourjavadi A., Nazaria M., Hosseinia S.H., Synthesis of magnetic graphene oxide-containing nanocomposite hydrogels for adsorption of crystal violet from aqueous solution, J. RSC Adv. 41(2015) 32263-32271.

DOI: 10.1039/c4ra17103a

[20] Xiang M., Zheng Z.W., Wang H.L., He C.C., Research process in magnetic field-sensitive hydrogel, J. Polym. Bull. 3(2010)16-22.

[21] Zhang, Q.S., Li, X.W., Zhao, Y.P., Chen L., Preparation and performance of nanocomposite hydrogels based on different clay. J. Appl. Clay Sci. 46(2009)346-350.

DOI: 10.1016/j.clay.2009.09.003

[22] Zhang, Q.S., Zhang, T.T., He, T., Chen, L., Removal of crystal violet by clay/NIPAm nanocomposite hydrogels with various clay contents. J. Appl. Clay Sci. 90(2014)1-5.

DOI: 10.1016/j.clay.2014.01.003

[23] Su J, Lu Y. C, The method of preparation and development trend of magnetic polymer micro spheres, J. Mate. Rev. 23(2009)343-346.

[24] Ramanujan R V, Lao L L, The mechanical behavior of smart magnetic hydrogel composites, J. Smart Mater. Struct. 15(2006)952-956.

DOI: 10.1088/0964-1726/15/4/008

[25] Liu B. C, Shun X. F, Jing Z. X, et al., Magnetic hemicellulose grafted polyacrylamide hydrogel adsorption of Methyl Blue, J. Technol. Water Treatment. 39(2013)13-22.

[26] Xiang M., He C.C., Wang H.L., Magnetic polyacrylamide/Fe3O4 nanocomposite hydrogel with high mechanical strength, J. Acta Phys. -Chim. Sin. 27 (2011) 1267-1272.
