Effects of High-Energy Ball Milling Time on the Sintering Process of FeSe Superconductors

Abstract:

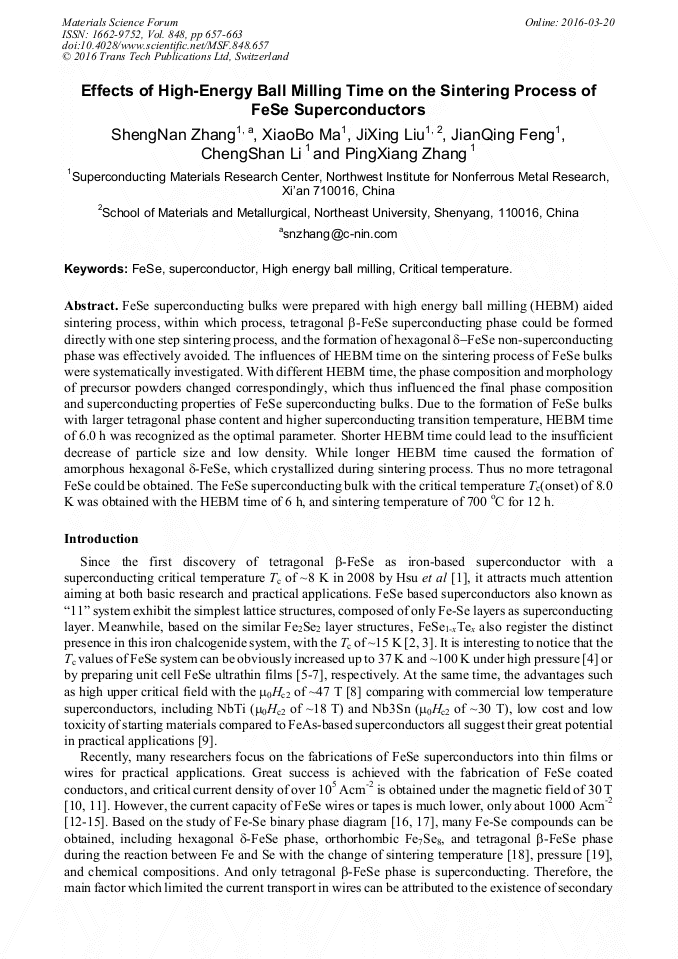

FeSe superconducting bulks were prepared with high energy ball milling (HEBM) aided sintering process, within which process, tetragonal β-FeSe superconducting phase could be formed directly with one step sintering process, and the formation of hexagonal δ-FeSe non-superconducting phase was effectively avoided. The influences of HEBM time on the sintering process of FeSe bulks were systematically investigated. With different HEBM time, the phase composition and morphology of precursor powders changed correspondingly, which thus influenced the final phase composition and superconducting properties of FeSe superconducting bulks. Due to the formation of FeSe bulks with larger tetragonal phase content and higher superconducting transition temperature, HEBM time of 6.0 h was recognized as the optimal parameter. Shorter HEBM time could lead to the insufficient decrease of particle size and low density. While longer HEBM time caused the formation of amorphous hexagonal δ-FeSe, which crystallized during sintering process. Thus no more tetragonal FeSe could be obtained. The FeSe superconducting bulk with the critical temperature T_c(onset) of 8.0 K was obtained with the HEBM time of 6 h, and sintering temperature of 700 ^oC for 12 h.

• Periodical: Materials Science Forum (Volume 848)
• Pages: 657-663
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.848.657
• Online since: March 2016
• Authors: Sheng Nan Zhang, Xiao Bo Ma, Ji Xing Liu, Jian Qing Feng, Cheng Shan Li, Ping Xiang Zhang
• Keywords: Critical Temperature, FeSe, High Energy Ball Milling, Superconductor

References

[1] Hsu F C, Luo J Y, Yeh K W, Chen T K, Huang T W, Wu P M, Lee Y C, Huang Y L, Chu Y Y, Yan D C, WU M K Superconductivity in the PbO-type structure a-FeSe Proc. Natl. Acad Sci USA 2008; 105: 14262-14264.

DOI: 10.1073/pnas.0807325105

[2] Wang W, Li J, Yang J, Gu C, Chen X, Zhang Z, Zhu X, Lu W, Wang H-B, Wu P-H, Yang Z, Tian M, Zhang Y, Moshchalkov V V Scotch tape induced strains for enhancing superconductivity of FeSe0. 5Te0. 5 single crystals Applied Physics Letters 2014; 105: 232602.

DOI: 10.1063/1.4903922

[3] Sun Y, Tsuchiya Y, Yamada T, Taen T, Pyon S, Shi Z X, Tamegai T Chalcogen (O2, S, Se, Te) atomosphere annealing induced bulk superconductivity in Fe1+yTe1-xSex single crystal Physica C 2014; 504: 12-15.

DOI: 10.1016/j.physc.2014.02.022

[4] Medvedev S, McQueen T M, Troyan I A, Palasyuk T, Eremets M I, Cava R J, Naghavi S, Casper F, Ksenofontov V, Wortmann G Electronic and magnetic phase diagram of β-Fe1. 01Se with superconductivity at 36. 7 K under pressure Nat. Mater. 2009; 8: 630-633.

DOI: 10.1038/nmat2491

[5] He S L, He J F, Zhang W H, Zhao L, Liu D F, Liu X, Mou D X, Ou Y B, Wang Q Y, Li Z, Wang L L, Peng Y Y, Liu Y, Chen C Y, Yu L, Liu G D, Dong X L, Zhang J, Chen C T, Xu Z Y, Chen X, Ma X C, Xue Q K, Zhou X J Phase diagram and electronic indication of high-temperature superconductivity at 65 K in single-layer FeSe films Nat. Mater. 2013; 12: 605-610.

DOI: 10.1038/nmat3648

[6] Zhang W H, Li Z, Li F S, Zhang H M, Peng J P, Tang C J, Wang Q Y, He K, Chen X, Wang L L, Ma X C, Xue Q K Interface charge doping effects on superconductivity of single-unit-cell FeSe films on SrTiO3 substrates Phys. Rev. B 2014; 89: 060506(R).

DOI: 10.1103/physrevb.89.060506

[7] Liu D F, Zhang W, Mou D, He J, Ou Y B, Wang Q Y, Li Z, Wang L, Zhao L, He S, Peng Y, Liu X, Chen C, Yu L, Liu G, Dong X, Zhang J, Chen C, Xu Z, Hu J, Chen X, Ma X, Xue Q K, Zhou X J Electonic origin of high-temperature superconductivity in single-layer FeSe superconductor Nature Commun. 2012; 3: 931.

DOI: 10.1038/ncomms1946

[8] Fang M H, Yang J H, Balakirev F F, Kohama Y, Singleton J, Qian B, Mao Z Q, Wang H D, Yuan H Q Weak anisotropy of the superconducting upper critical field in Fe1. 11Te0. 6Se0. 4 single crystals Phys. Rev. B 2010; 81: 020509.

[9] Ma Y W Progress in wire fabrication of iron-based superconductors Supercond. Sci. Technol. 2012; 25: 113001.

DOI: 10.1088/0953-2048/25/11/113001

[10] Si W D, Han S J, Shi X Y, Ehrlich S N, Jaroszynski J, Goyal A, Li Q High current superconductivity in FeSe0. 5Te0. 5-coated conductors at 30 Tesla Nature Commun. 2013; 4: 1347.

DOI: 10.1038/ncomms2337

[11] Si W D, Zhou J, Jie Q, Dimitrov I, Solovyov V, Johnson P D, Jaroszynski J, Matias V, Sheehan C, Li Q Iron-chalcogenide FeSe0. 5Te0. 5 coated superconducting tapes for high field applications Appl. Phys. Lett. 2011; 98: 262509.

DOI: 10.1063/1.3606557

[12] Gao Z S, Qi Y P, Wang L, Wang D L, Zhang X P, Yao C, Ma Y W Superconducting properties of FeSe wires and tapes prepared by a gas diffusion technique Supercond. Sci. Technol. 2011; 24: 065022.

DOI: 10.1088/0953-2048/24/6/065022

[13] Mizuguchi Y, Deguchi K, Tsuda S, Yamaguchi T, Takeya H, Kumakura H, Takano Y Fabrication of the iron-based superconducting wire using Fe(Se, Te) Appl. Phys. Express 2009; 2: 083004.

DOI: 10.1143/apex.2.083004

[14] Mizuguchi Y, Izawa H, Ozaki T, Takano Y, Miura O Transport properties of the single- and 3-core Fe-Se wires fabricated by a novel chemical-transformation PIT process Supercond. Sci. Technol. 2011; 24: 125003.

DOI: 10.1088/0953-2048/24/12/125003

[15] Ozaki T, Deguchi K, Mizuguchi Y, Kawasaki Y, Tanaka T, Yamaguchi T, Tsuda S, Kumakura H, Takano Y Transport properties and microstructure of mono- and seven-core wires of FeSe1-xTex superconductor produced by the Fe-diffusion powder-in-tube method Supercond. Sci. Technol. 2011; 24: 105002.

DOI: 10.1088/0953-2048/24/10/105002

[16] Okamoto H The Fe-Se (Iron-Selenium) System J. Phase Equilib. 1991; 12: 383-389.

[17] Schuster W, Mikler H, Komarek K L Transition metal-Chalcogen systems, VII: The iron-selenium phase diagram Monatsch. Chem. 1979; 110: 1153-1170.

DOI: 10.1007/bf00910963

[18] Izawa H, Mizuguchi Y, Ozaki T, Takano Y, Miura O Evolution of tetragonal phase in the FeSe wire fabricated by a novel chemical-transformation PIT process Jpn. J. Appl. Phys. 2012; 51: 010101.

DOI: 10.7567/jjap.51.010101

[19] Rahman G, Kim I G, Freeman A J Ab initio prediction of pressure-induced structural phase transition of superconducting FeSe J. Phys.: Condens. Matter 2012; 24: 095502.

DOI: 10.1088/0953-8984/24/9/095502

[20] Svendsen S R Decomposition pressures and standard enthalpy of formation for the iron selenides FeSe, Fe7Se8, Fe3Se4 and FeSe2 Acta Chemica Scandinavica 1972; 26: 3757-3774.

DOI: 10.3891/acta.chem.scand.26-3757

[21] Ding Q P, Mohan S, Tsuchiya Y, Taen T, Nakajima Y, Tamegai T Magneto-optical imaging and transport properties of FeSe superconducting tapes prepared by diffusion method Supercond. Sci. Technol. 2011; 25: 025003.

DOI: 10.1088/0953-2048/25/2/025003

[22] Ozaki T, Deguchi K, Mizuguchi Y, Kawasaki Y, Tanaka T, Yamaguchi H, Kumakura H, Takano Y Fabrication of binary FeSe superconducting wires by novel diffusion process J. Appl. Phys. 2011; 111: 112620.

DOI: 10.1063/1.4726243

[23] Sala A, Palenzona A, Bernini C, Caglieris F, Cimberle M R, Ferdeghini C, Lamura G, Martinelli A, Pani M, Putti M The role of Fe deficiency in FeySe0. 5Te0. 5 samples prepared by a melting process Physica C 2013; 494: 69-73.

DOI: 10.1016/j.physc.2013.05.026

[24] Zhang S N, Liu J X, Feng J Q, Wang Y, Ma X B, Li C S, Zhang P X Fabrication Mechanism of FeSe Superconductors with High-Energy Ball milling Aided Sintering Process Mater. Chem. Phys. 2015; submitted.

DOI: 10.1016/j.matchemphys.2015.08.028

[25] Sun W Z Y, Zhang S, Zhuang J, Yuan F, Li X, Shi Z, Yamada T, Tsuchiya Y, Tamegai T Bulk Superconductivity in Fe1+yTe0. 6Se0. 4 Induced by Removal of Excess Fe J. Phys. Soc. Jap. 2014; 83: 064704.

DOI: 10.7566/jpsj.83.064704

[26] Sun Y, Tsuchiya Y, Taen T, Yamada T, Pyon S, Sugimoto A, Ekino T, Shi Z X Dynamics and mechanism of oxygen annealing in Fe1+yTe0. 6Se0. 4 single crystal Sci. Rep. 2014; 4: 4585.

DOI: 10.1038/srep04585
