Study on Rotating Bending Fatigue Property of Ti65 Titanium Alloy

Abstract:

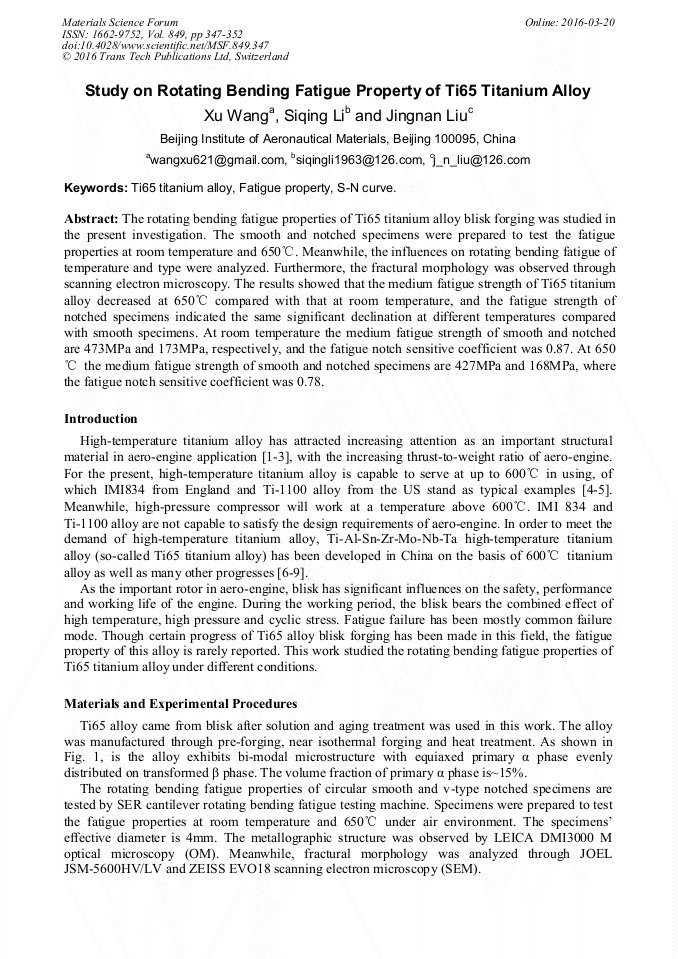

The rotating bending fatigue properties of Ti65 titanium alloy blisk forging was studied in the present investigation. The smooth and notched specimens were prepared to test the fatigue properties at room temperature and 650°C. Meanwhile, the influences on rotating bending fatigue of temperature and type were analyzed. Furthermore, the fractural morphology was observed through scanning electron microscopy. The results showed that the medium fatigue strength of Ti65 titanium alloy decreased at 650°C compared with that at room temperature, and the fatigue strength of notched specimens indicated the same significant declination at different temperatures compared with smooth specimens. At room temperature the medium fatigue strength of smooth and notched are 473MPa and 173MPa, respectively, and the fatigue notch sensitive coefficient was 0.87. At 650°C the medium fatigue strength of smooth and notched specimens are 427MPa and 168MPa, where the fatigue notch sensitive coefficient was 0.78.

• Periodical: Materials Science Forum (Volume 849)
• Pages: 347-352
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.849.347
• Online since: March 2016
• Authors: Xu Wang, Si Qing Li, Jing Nan Liu
• Keywords: Fatigue Property, S-N Curve, Ti65 Titanium Alloy

References

[1] J.M. Cai, Z.X. Li, J.M. Ma, X. Huang, C.X. Cao, Research and development of 600℃ high temperature titanium alloys for aero-engine, Materials Review. 19(2005): 50-53.

[2] Y.Y. Fu, Y.Q. Song, S.X. Hui, X.J. Mi, Research and application of typical aerospace titanium alloys, Chinese Journal of Rare Metals. 30(2006): 850-856.

[3] L.Y. Zeng, Y.Q. Zhao, Q. Hong, X.N. Mao, Y.L. Qi, Research and development of high temperature titanium alloys at 600 ℃, Titanium Industry Progress. 29(2012): 1-5.

[4] S. D. Meshram, T. Mohandas, Influence of matrix microstructure on aging response of near alpha titanium alloy (IMI 834) parent metal and welds on toughness, Materials Science & Technology. 27(2011): 235-239.

DOI: 10.1179/174328409x439141

[5] P. Vo, M. Jahazi, S. Yue, Recrystallization during thermomechanical processing of IMI834, Metallurgical and Transactions A. 39(2008): 2965-2980.

DOI: 10.1007/s11661-008-9666-3

[6] B. Lu, R. Yang, Heat treatment on microstructure and mechanical properties of Ti650 alloy sheet for short- term use at 650℃, Aerospace Materials and Technology. 37(2007): 77-81.

[7] Y. Wang, B. Lu, R. Yang, Effects of heat treatment on the microstructure and phase evolution of Ti650 titanium alloy, Rare Materials and Engineering. 37(2008): 7-4-707.

[8] X. Wang, S.Q. Li, Z.X. Li, X. Huang, J.N. Liu, Effects of aging treatment on properties of Ti65 high-temperature titanium alloy, The Chinese Journal of Nonferrous Metals. 23(2013): 477-479.

[9] X. Wang, S.Q. Li, Z.X. Li, X. Huang, J.N. Liu, Effects of solution treatment on properties and microstructures of Ti65 high-temperature titanium alloy, The Chinese Journal of Nonferrous Metals. 23(2013): 437-440.

[10] B.R. Hu, J.Z. Liu, J.F. Chen. Relationship between fatigue notch factor Kf and stress concentration factor Kt, Journal of Materials Engineering. 7(2007): 70-73.
