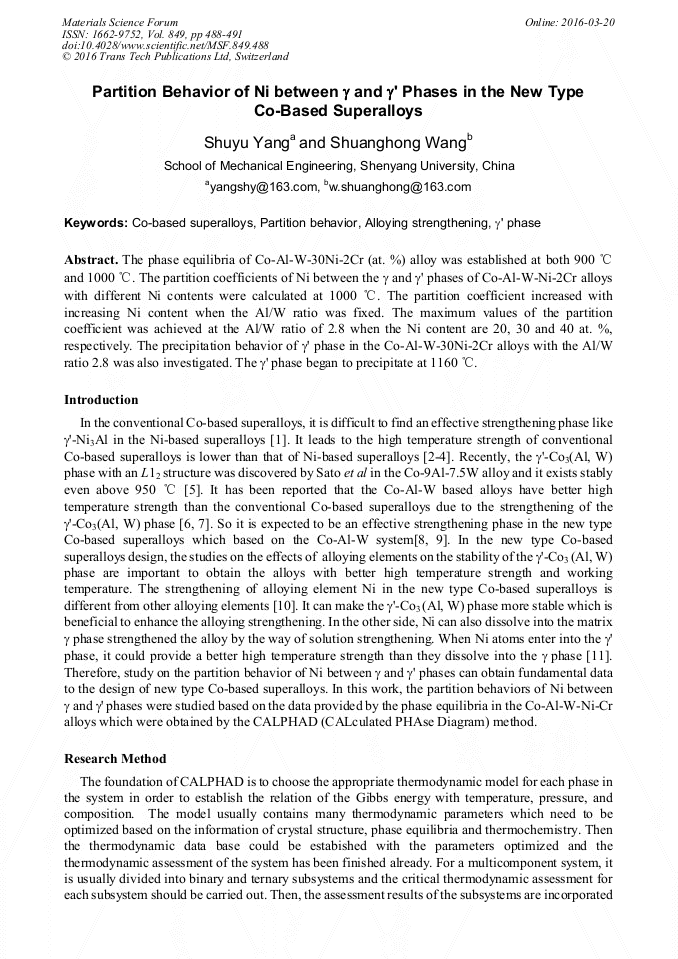

Partition Behavior of Ni between γ and γ' Phases in the New Type Co-Based Superalloys

Abstract:

The phase equilibria of Co-Al-W-30Ni-2Cr (at. %) alloy was established at both 900 °C and 1000 °C. The partition coefficients of Ni between the γ and γ' phases of Co-Al-W-Ni-2Cr alloys with different Ni contents were calculated at 1000 °C. The partition coefficient increased with increasing Ni content when the Al/W ratio was fixed. The maximum values of the partition coefficient was achieved at the Al/W ratio of 2.8 when the Ni content are 20, 30 and 40 at. %, respectively. The precipitation behavior of γ' phase in the Co-Al-W-30Ni-2Cr alloys with the Al/W ratio 2.8 was also investigated. The γ' phase began to precipitate at 1160 °C.

• Periodical: Materials Science Forum (Volume 849)
• Pages: 488-491
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.849.488
• Online since: March 2016
• Authors: Shu Yu Yang, Shuang Hong Wang
• Keywords: Alloying Strengthening, Co-Based Superalloys, Partition Behavior, γ' Phase

References

[1] P. Viatour, J. M. Drapier, D. Coutsouradis. Stability of the g'-Co3Ti compound in simple and complex cobalt alloys[J]. Cobalt, 1973, 3: 67-74.

[2] A. Nitz, E. Nembach. Critical resolved shear stress anomalies of the L12-long-range ordered g' phase of the superalloy Nimonic 105[J]. Materials Science and Engineer A, 1999, 263(1): 15-22.

DOI: 10.1016/s0921-5093(98)01025-9

[3] A. Vennemann, E. Langmaack, E. Nembach. On the temperature dependence of the critical resolved shear stress of the g'-strengthened superalloy Nimonic PE16 [J], Scripta Materialia, 2002, 46(10): 723-728.

DOI: 10.1016/s1359-6462(02)00059-3

[4] W. Betteridge, S. W. S. Shaw. Development of superalloys[J]. Material Science and Technology, 1987, 3(9): 682-694.

[5] J. Sato, T. Omori, K. Oikawa, et al. Cobalt-base high-temperature alloys[J]. Science, 2006, 312(5770): 90-91.

DOI: 10.1126/science.1121738

[6] A. Suzuki, T. M. Pollock. High-temperature strength and deformation of g/g' two phase Co-Al-W-base alloys[J]. Acta Materials, 2008, 56(6): 1288-1297.

DOI: 10.1016/j.actamat.2007.11.014

[7] A. Bauer, S. Neumeire, F. Pyczak, et al. Microstructure and creep strength of different g/g'-strengthened Co-base superalloy variants[J]. Scripta Materialia, 2010, 63(12): 1197-1200.

DOI: 10.1016/j.scriptamat.2010.08.036

[8] H.Y. Yan, V.A. Vorontsov, D. Dye. Alloying effects in polycrystalline g' strengthened Co-Al-W base alloys. Intermetallics, 2014(48): 44-53.

DOI: 10.1016/j.intermet.2013.10.022

[9] F. Xue, H.J. Zhou and X.F. Ding, et al. Improved high temperature γ' stability of Co–Al–W-base alloys containing Ti and Ta. Materials Letters, 2013(112): 215-218.

DOI: 10.1016/j.matlet.2013.09.023

[10] K. Shinagawa, T. Omori, J. Sato, et al. Phase equilibria and microstructure on g' phase in Co-Ni-Al-W system. Materials Transactions, 2008, 49(6): 1474-1479.

DOI: 10.2320/matertrans.mer2008073

[11] S Y Yang, M Jiang, L Wang. Thermodynamic analysis of g and g' phases in new-type Co- based superalloy. Journal of Northeastern University (Natural Science), 2012, 33(9): 1274-1277.

[12] S. Y. Yang, M. Jiang, H. X. Li, et al. Assessment of the Co-Cr-Ni ternary system by CALPHAD technique. Rare Metals, 2012, 31(1): 75-80.

DOI: 10.1007/s12598-012-0466-y

[13] S. Y. Yang, M. Jiang, H. X. Li, et al. Thermodynamic assessment of Co-Cr-W ternary system. Trans. Nonferrous Met. Soc. China, 2011, 21: 2270-2275.

DOI: 10.1016/s1003-6326(11)61007-8

[14] S. Y. Yang, M. Jiang, L. Wang. Applications of thermodynamic calculations of phase diagrams to new-type Co-based superalloy design[J]. Journal of Materials and Metallurgy, 2011, 10(4): 278-282.

[15] L. R. Liu, T. Jin, X. F. Sun, et al. Effect of Al, Ti and Ta contents on the micriostricture in Ni-base single crystal superalloy during Aging[J]. Rare Metal Materials and Engineering, 2008, 37(7): 1253-1256.

[16] A Volek, F Pyczak, R F Singer, et al. Partitioning of Re between γ and γ' phase in nickel-base. superalloys. Scripta Materialia, 2005, 52(2): 141-145.

DOI: 10.1016/j.scriptamat.2004.09.013
