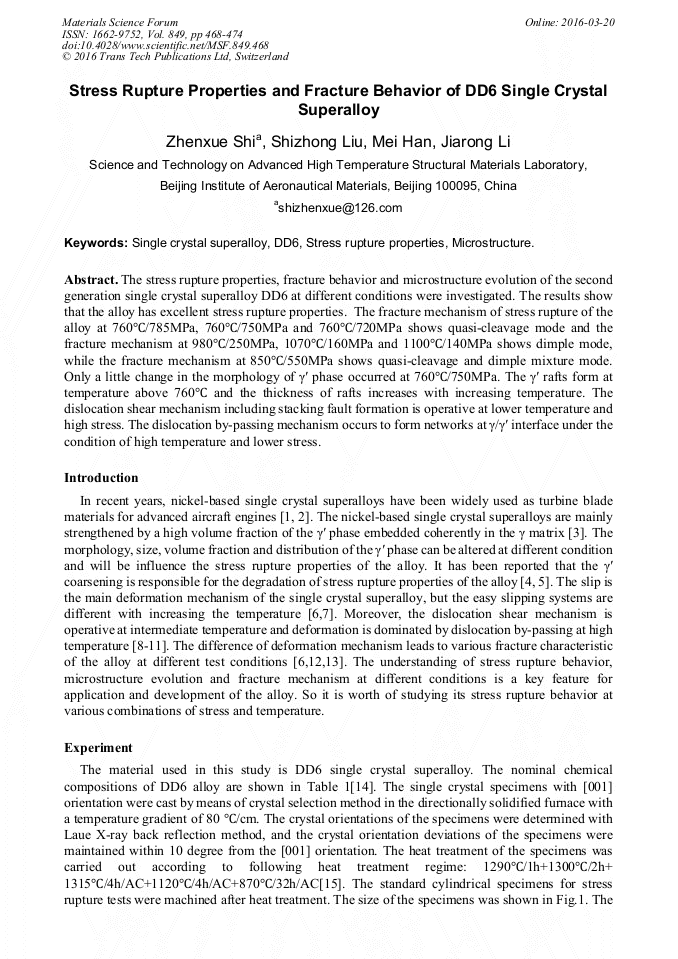

Stress Rupture Properties and Fracture Behavior of DD6 Single Crystal Superalloy

Abstract:

The stress rupture properties, fracture behavior and microstructure evolution of the second generation single crystal superalloy DD6 at different conditions were investigated. The results show that the alloy has excellent stress rupture properties. The fracture mechanism of stress rupture of the alloy at 760°C/785MPa, 760°C/750MPa and 760°C/720MPa shows quasi-cleavage mode and the fracture mechanism at 980°C/250MPa, 1070°C/160MPa and 1100°C/140MPa shows dimple mode, while the fracture mechanism at 850°C/550MPa shows quasi-cleavage and dimple mixture mode. Only a little change in the morphology of γ′ phase occurred at 760°C/750MPa. The γ′ rafts form at temperature above 760°C and the thickness of rafts increases with increasing temperature. The dislocation shear mechanism including stacking fault formation is operative at lower temperature and high stress. The dislocation by-passing mechanism occurs to form networks at γ/γ′ interface under the condition of high temperature and lower stress.

• Periodical: Materials Science Forum (Volume 849)
• Pages: 468-474
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.849.468
• Online since: March 2016
• Authors: Zhen Xue Shi, Shi Zhong Liu, Mei Han, Jia Rong Li
• Keywords: DD6, Microstructure, Single Crystal Superalloy, Stress Rupture Property

References

[1] P. Caron, T. Khan, Aerospace Science Technology 3 (1999) 513–523.

[2] S. Walston, A. Cetel, R. Mackay, K. OHara, D. Duhl, R. Dreshfield, in: K.A. Green, T.M. Pollok, H. Harada, T.W. Howson, R.C. Reed, J.J. Schirra, S. Walston (Eds. ), Superalloys, Pennsylvania, TMS, 2004, p.15–24.

DOI: 10.7449/2004/superalloys_2004_15_24

[3] D.M. Shah, D.N. Duhl, in: M. Gell, C.S. Kortovich, R.H. Bricknell, et al. (Eds. ), Superalloys 1984, TMS, Pennsylvania, 1984, p.105–114.

[4] M.V. Acharya, G.E. Fuchs, Materials Science and Engineering A, 381(2004) 143–153.

[5] J.L. Liu, T. Jin, J.J. Yu, X.F. Sun, H.R. Guan, Z.Q. Hu, Materials Science and Engineering A, 527(2010) 890–897.

[6] Z.X. Wen, N.X. Hou, Z.X. Dou, Z.F. Yue, Journal of Material Science, 43(2008)5878–5883.

[7] T.M. Pollock, A.S. Argon, in: S. Reichman, N. Duhld, G. Maurer, S. Antolovich, C. Lund (Eds. ). Superalloys1988, Warrendale, TMS, 1988, 285–294.

[8] C.M.F. Rae, R.C. Reed, Acta Materialia, 55(2007)1067–1081.

[9] S.G. Tian, J.H. Zhang, H.H. Zhou, H.C. Yang, Y.B. XU, Z. Q Hu, Materials Science and Engineering A, 279(2000)160–165.

[10] J.J. Yu, X.F. Sun, T. Jin, N.R. Zhao, H.R. Guan, Z. Q Hu, Materials Science and Engineering A, 527(2010)2379–2389.

[11] J.X. Zhang, T. Murakumo, Y. Koizumi, T. Kobayashi, H. Harada, S. Masaki, Metallurgical and Materials Transactions A, 33(2002)3741–3746.

DOI: 10.1007/s11661-002-0246-7

[12] L.R. Liu, T. Jin, N.R. Zhao, Z.H. Wang, X.F. Sun, H.R. Guan, Z.Q. Hu, Acta Metallurgica Sinica, 20(2004) 858–862.

[13] S.G. Tian, X. Ding, Z.G. Guo, J. Xie, Y.C. Xue, D.L. Su, Materials Science and Engineering A, 594 (2014) 7–16.

[14] J.R. Li, Z.G. Zhong, D.Z. Tang, et al. in: T. M. Pollock, R.D. Kissinger, R.R. Bowman, K.A. Green, M. Mclean, S. Olson, J.J. Schirra (eds), Superalloys 2000 [C], Warrendale, TMS, 2000, p.777–783.

[15] The Editional Committee of China Aeronautical Materials Handbook. China Aeronautical Materials Handbook (VOL. 2). Beijing: China standard press, 2002, p.812–818.

[16] J.D. Liu, T. Jin, N.R. Zhao, Z.H. Wang, X.F. Sun, H.R. Guan, Z.Q. Hu, Materials Characterization, 59(2008 )68–73.

[17] S.G. Tian, J.H. Zhang, H.H. Zhou, H.C. Yang, Y.B. XU, Z. Q Hu, Materials Science and Engineering A, 262 (1999) 271–278.
