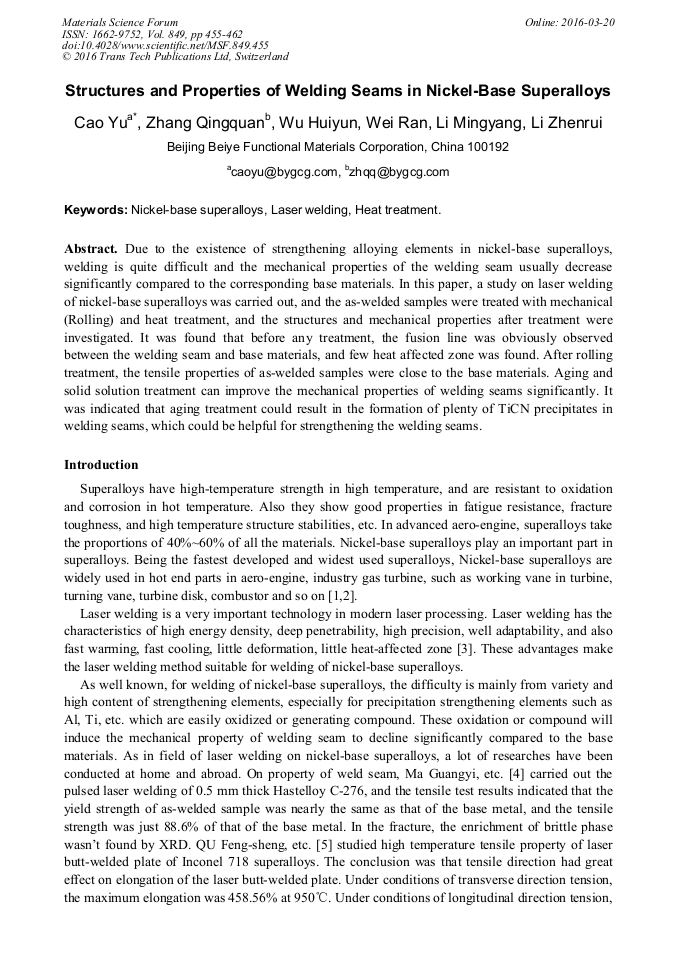

Structures and Properties of Welding Seams in Nickel-Base Superalloys

Abstract:

Due to the existence of strengthening alloying elements in nickel-base superalloys, welding is quite difficult and the mechanical properties of the welding seam usually decrease significantly compared to the corresponding base materials. In this paper, a study on laser welding of nickel-base superalloys was carried out, and the as-welded samples were treated with mechanical (Rolling) and heat treatment, and the structures and mechanical properties after treatment were investigated. It was found that before any treatment, the fusion line was obviously observed between the welding seam and base materials, and few heat affected zone was found. After rolling treatment, the tensile properties of as-welded samples were close to the base materials. Aging and solid solution treatment can improve the mechanical properties of welding seams significantly. It was indicated that aging treatment could result in the formation of plenty of TiCN precipitates in welding seams, which could be helpful for strengthening the welding seams.

• Periodical: Materials Science Forum (Volume 849)
• Pages: 455-462
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.849.455
• Online since: March 2016
• Authors: Cao Yu, Qing Quan Zhang, Hui Yun Wu, Ran Wei, Ming Yang Li, Zhen Rui Li
• Keywords: Heat Treatment, Laser Welding, Nickel-Based Superalloys

References

[1] <China Areonautical Materials Handbook> Editorial Board, China Areonautical Materials Handbook: Volume 2 [M], 2nd Edition, Standards Press of China, 2002, pp.5-7, 547.

[2] <China Materials Engineering Canon> Editorial Board, China Materials Engineering Canon: Volume 4 [M], 1st Edition, Chemical Industry Press, 2006, p.378.

[3] J.M. Chen, X.Z. Xu, R.S. Xiao, The Modern Manufacturing Technology of Laser, National Defense Industry Press, 2007, pp.82-83.

[4] G.Y. Ma, D.J. Wu, Y.Q. Guo, Z. M Gao, D.M. Guo, Tensile Properties of Weld Joint on Thin Hastelloy C-276 Sheet of Pulsed Laser Welding, Rare Metal Materials and Engineering, 42(2013) 1241-1245.

DOI: 10.1016/j.phpro.2010.08.034

[5] F. S Qu, X.G. Liu, F. Xing, K.F. Zhang, High temperature tensile properties of laser butt-welded plate of Inconel 718 superalloy with ultra-fine grains, Transactions of Nonferrous Metals Society of China, 22(2012) 2379-2388.

DOI: 10.1016/s1003-6326(11)61474-x

[6] J.G. Xiong, L.Q. Wang, Q. Hu, Z.Y. Li, A.Q. Duan, Study on laser welding of superalloy GH140, Electric Welding Machine, 31(2001) 7-9, 24.

[7] J.G. Xiong, Q.W. Hu, F.S. Wu, Z.Y. Li, A.Q. Duan, Microstructure Characteristics and Weld Cracking Formation in Nickel Superalloy Laser Welded Joints, Applied Laser, 21(2001), 309-312.

[8] J.P. Wang, Longitudinal seam laser welding of ultra-thin tube with small diameter, Journal of Rocket Propulsion, 31(2005), 44-46.

[9] K.R. Zhang, J.X. Zhang, Numerical simulation on temperature field of laser deep penetration welding of GH4133 alloy, 37(2007) 21-24.

[10] Y.Q. Guo, D.J. Wu, G.Y. Ma. Influence of fixture restraint distance on pulsed laser welding distortion of Hastelloy C-276 thin sheet. Optics and Precision Engineering. 20(2012) 2465-2471.

DOI: 10.3788/ope.20122011.2465
