Microstructure and Room Temperature Mechanical Properties of a New Corrosion-Resistant Alloy GH945 for Oil and Gas Applications

Article Preview

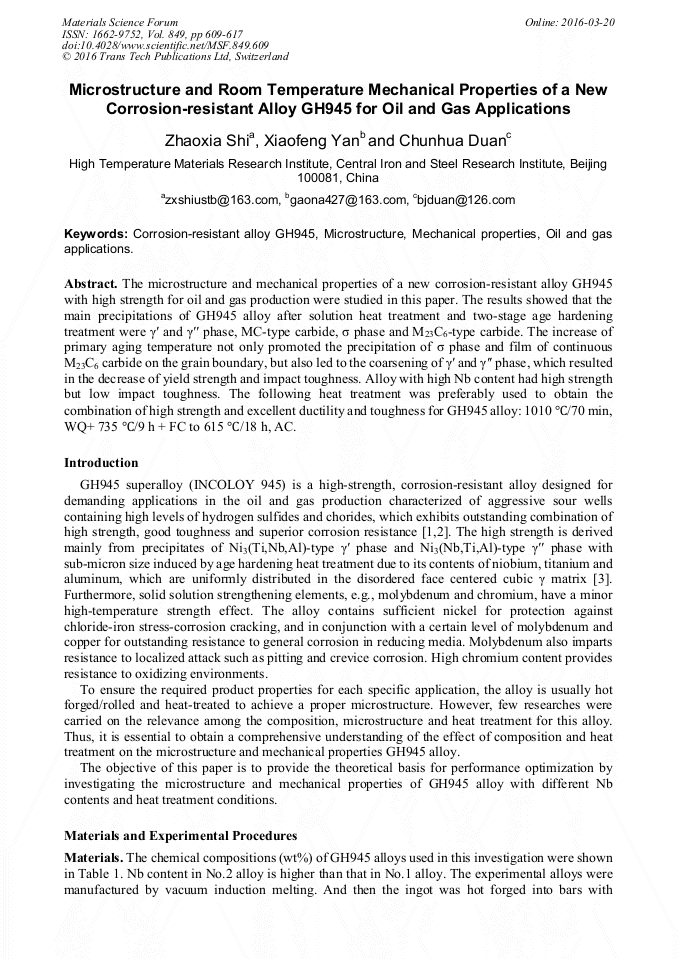

Abstract:

The microstructure and mechanical properties of a new corrosion-resistant alloy GH945 with high strength for oil and gas production were studied in this paper. The results showed that the main precipitations of GH945 alloy after solution heat treatment and two-stage age hardening treatment were γ′ and γ′′ phase, MC-type carbide, σ phase and M23C6-type carbide. The increase of primary aging temperature not only promoted the precipitation of σ phase and film of continuous M23C6 carbide on the grain boundary, but also led to the coarsening of γ′ and γ′′ phase, which resulted in the decrease of yield strength and impact toughness. Alloy with high Nb content had high strength but low impact toughness. The following heat treatment was preferably used to obtain the combination of high strength and excellent ductility and toughness for GH945 alloy: 1010 °C/70 min, WQ+ 735 °C/9 h + FC to 615 °C/18 h, AC.

You might also be interested in these eBooks

Info:

Periodical:

Pages:

609-617

Citation:

Online since:

March 2016

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2016 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] S. Mannan, S. Patel, A new Ni-base superalloy for oil and gas applications, Superalloys 2008, Edited by Roger C, Reed, et al, TMS, 2008, 31-39.

DOI: 10.7449/2008/superalloys_2008_31_39

Google Scholar

[2] S. Mannan, Time-temperature-transformation diagram of alloy 945, 7th International Symposium on Superalloy 718 and Derivatives, Edited by E. A. Ott, J. R. Groh, et al, TMS, 2010, 629-643.

DOI: 10.1002/9781118495223.ch49

Google Scholar

[3] A. Amiri, S. Bruschi, M. H. Sadeghi, P. Bariani, Investigation on hot deformation behavior of Waspaloy, Materials Science and Engineering: A, 562 (2013), 77-82.

DOI: 10.1016/j.msea.2012.11.024

Google Scholar

[4] Thermo-Calc version 2: Foundation of Computational Thermodynamics, Stockholm, Sweden, Copyright (1995, 2002), http: /www. thermocalc. com.

Google Scholar

[5] N. Zhou, D. C. Lv, H. L. Zhang, D. McAllister, F. Zhang, M. J. Mills, Y. Wang, Computer simulation of phase transformation and plastic deformation in IN718 superalloy: Microstructural evolution during precipitation, Acta Materialia, 65 (2014).

DOI: 10.1016/j.actamat.2013.10.069

Google Scholar

[6] J. Andersson, G. P. SjȪberg, L. Viskari, M. Chaturvedi, Effects of different solution heat treatments on the hot ductility of superalloys, Materials Science and Technology, 29 (2013), 43-53.

DOI: 10.1179/1743284712y.0000000108

Google Scholar

[7] N. Sun, L. Zhang, Z. Li, A. Shan, Effect of heat-treatment on microstructure and high-temperature deformation behavior of a low rhenium-containing single crystal nickel-based superalloy, Materials Science and Engineering: A, 606 (2014), 417-425.

DOI: 10.1016/j.msea.2014.03.093

Google Scholar

[8] R. Sharghi-Moshtaghin, S. Asgari, The influence of thermal exposure on the γ' precipitates characteristics and tensile behavior of superalloy IN-738LC, Journal of Matrials Processing Technology, 147 (2004), 343-350. (C c) B C.

DOI: 10.1016/j.jmatprotec.2004.01.006

Google Scholar

[9] Z. Shi, J. Dong, M. Zhang, L. Zheng, Solidification characteristics and segregation behavior of Ni-based superalloy K418 for auto turbocharger turbine, Journal of Alloys and Compounds, 571(2013), 168-177.

DOI: 10.1016/j.jallcom.2013.03.241

Google Scholar
