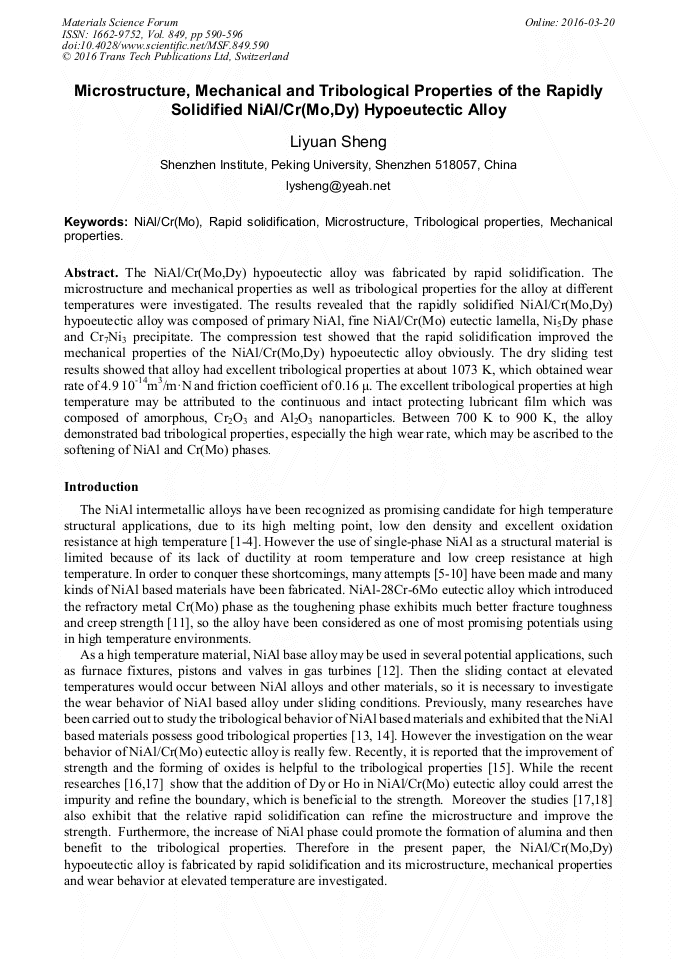

Microstructure, Mechanical and Tribological Properties of the Rapidly Solidified NiAl/Cr(Mo,Dy) Hypoeutectic Alloy

Abstract:

The NiAl/Cr (Mo,Dy) hypoeutectic alloy was fabricated by rapid solidification. The microstructure and mechanical properties as well as tribological properties for the alloy at different temperatures were investigated. The results revealed that the rapidly solidified NiAl/Cr (Mo,Dy) hypoeutectic alloy was composed of primary NiAl, fine NiAl/Cr (Mo) eutectic lamella, Ni₅Dy phase and Cr₇Ni₃ precipitate. The compression test showed that the rapid solidification improved the mechanical properties of the NiAl/Cr (Mo,Dy) hypoeutectic alloy obviously. The dry sliding test results showed that alloy had excellent tribological properties at about 1073 K, which obtained wear rate of 4.9 10^-14m³/m·N and friction coefficient of 0.16 μ. The excellent tribological properties at high temperature may be attributed to the continuous and intact protecting lubricant film which was composed of amorphous, Cr₂O₃ and Al₂O₃ nanoparticles. Between 700 K to 900 K, the alloy demonstrated bad tribological properties, especially the high wear rate, which may be ascribed to the softening of NiAl and Cr (Mo) phases.

• Periodical: Materials Science Forum (Volume 849)
• Pages: 590-596
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.849.590
• Online since: March 2016
• Authors: Li Yuan Sheng
• Keywords: Mechanical Properties, Microstructure, NiAl/Cr (Mo), Rapid Solidification, Tribological Properties

References

[1] R. Darolia, NiAl alloys for high-temperature structural applications, JOM 43 (1991) 44-49.

DOI: 10.1007/bf03220163

[2] L.Y. Sheng, Y. Xie, T.F. Xi, J.T. Guo, Y.F. Zheng, H.Q. Ye: Microstructure characteristics and compressive properties of NiAl-based multiphase alloy during heat treatments, Mater. Sci. Eng. A, 2011, 528, 8324-8331.

DOI: 10.1016/j.msea.2011.07.072

[3] J.D. Whittenberger, Effect of composition and grain size on slow plastic flow properties of NiAl between 1200 and 1400 K, J. Mater. Sci. 22 (1987) 394-402.

DOI: 10.1007/bf01160744

[4] L.Y. Sheng, J.T. Guo, Y.X. Tian, L.Z. Zhou, H.Q. Ye, Microstructure and mechanical properties of rapidly solidified NiAl-Cr(Mo) eutectic alloy doped with trace Dy, J. Alloy Comp. 475(2009) 730–734.

DOI: 10.1016/j.jallcom.2008.07.109

[5] L.Y. Sheng, W. Zhang, J.T. Guo, L.Z. Zhou, H.Q. Ye, Microstructure evolution and mechanical properties' improvement of NiAl-Cr(Mo)-Hf eutectic alloy during suction casting and subsequent HIP treatment, Intermetallics 17(2009)1115-1119.

DOI: 10.1016/j.intermet.2009.05.003

[6] H. Bei and E.P. George, Microstructures and mechanical properties of a directionally solidified NiAl–Mo eutectic alloy, Acta Mater. 53(2005)69-77.

DOI: 10.1016/j.actamat.2004.09.003

[7] L.Y. Sheng, J.T. Guo, L.Z. Zhou, H.Q. Ye, Microstructure and compressive properties of NiAl-Cr(Mo)-Dy near eutectic alloy prepared by suction casting, Mater. Sci. Technol. 26(2010)164-168.

DOI: 10.1179/174328408x365801

[8] L.Y. Sheng, J.T. Guo, C. Lai, T.F. Xi, Effect of Zr addition on microstructure and mechanical properties of NiAl/Cr(Mo) base eutectic alloy, Acta Metall. Sin. 51(2015)828-834.

[9] L.Y. Sheng, L. Nan, W. Zhang, J.T. Guo, H.Q. Ye, Microstructure and Mechanical Properties Determined in Compressive Tests of Quasi-Rapidly Solidified NiAl-Cr(Mo)-Hf Eutectic Alloy After Hot Isostatic Pressure and High Temperature Treatments, J. Mater. Eng. Perform. 19(2010).

DOI: 10.1007/s11665-009-9526-3

[10] L.Y. Sheng, F. Yang, J.T. Guo, T.F. Xi, Anomalous yield and intermediate temperature brittleness behaviors of directionally solidified nickel-based superalloy. Trans. Nonferrous Met. Soc. China 24(2014)673−681.

DOI: 10.1016/s1003-6326(14)63110-1

[11] D.R. Johnson, X.F. Chen, B.F. Oliver, R.D. Noebe, J.D. Whittenberger. Processing and mechanical properties of in-situ composites from the NiAl–Cr and theNiAl–(Cr, Mo) eutectic systems, Intermetallics 3 (1995) 99–113.

DOI: 10.1016/0966-9795(95)92674-o

[12] J. -H. Jin, D.J. Stephenson, The sliding wear behaviour of reactively hot pressed nickel aluminides, Wear 217 (1998)200–207.

DOI: 10.1016/s0043-1648(98)00177-x

[13] J.A. Hawk, D.E. Alman, Abrasive wear behavior of NiAl and NiAl–TiB2 composites, Wear 225–229(1999)544-556.

DOI: 10.1016/s0043-1648(99)00006-x

[14] L.Y. Sheng, C. Lai, F. Yang, Q. L. Wang, T. F. Xi, Microstructure and wear behaviour of ceramic particles strengthening NiAl based composite, Mater. Res. Innov. 18(2014)544-549.

DOI: 10.1179/1432891714z.000000000738

[15] L.Y. Sheng, F. Yang, T.F. Xi, J.T. Guo, Investigation on microstructure and wear behavior of the NiAl–TiC–Al2O3 composite fabricated by self-propagation high-temperature synthesis with extrusion, J. Alloys Compd. 554( 2013)182-188.

DOI: 10.1016/j.jallcom.2012.11.144

[16] L.Y. Sheng, L.J. Wang, T.F. Xi, Y.F. Zheng, H.Q. Ye, Microstructure, precipitates and compressive properties of various holmium doped NiAl/Cr(Mo, Hf) eutectic alloys, Mater. Design 32(2011)4810-4817.

DOI: 10.1016/j.matdes.2011.06.026

[17] L.Y. Sheng, J.T. Guo, Y.X. Tian, L.Z. Zhou, H.Q. Ye, Microstructure and mechanical properties of rapidly solidified NiAl–Cr(Mo) eutectic alloy doped with trace Dy, J Alloy Compd. 475(2009)730-734.

DOI: 10.1016/j.jallcom.2008.07.109

[18] L.Y. Sheng, F. Yang, T.F. Xi, Y.F. Zheng, J.T. Guo, Microstructure and room temperature mechanical properties of NiAl-Cr(Mo)-(Hf, Dy) hypoeutectic alloy prepared by injection casting, Trans. Nonferrous Met. Soc. China 23(2013)983−990.

DOI: 10.1016/s1003-6326(13)62556-x

[19] Z.P. Xing, J.T. Guo, Y.F. Han, L.G. Yu: Microstructure and mechanical behavior of the NiAl-TiC in-situ composite, Metall. Trans., 1997, 28A, 1079-1087.

DOI: 10.1007/s11661-997-0237-9

[20] L.Y. Sheng, T.F. Xi, C. Lai, J.T. Guo, Y.F. Zheng, Effect of extrusion process on microstructure and mechanical properties of Ni3Al-B-Cr alloy during self-propagation high-temperature synthesis, Trans. Nonferrous Met. Soc. China 22(2012)489-495.

DOI: 10.1016/s1003-6326(11)61203-x

[21] C. Sierra, A.J. Va´zquez, Dry sliding wear behaviour of nickel aluminides coatings produced by self-propagating high-temperature synthesis, Intermetallics 14 (2006) 848–852.

DOI: 10.1016/j.intermet.2005.12.005

[22] L.Y. Sheng, F. Yang, J.T. Guo, T.F. Xi, H.Q. Ye, Investigation on NiAl-TiC-Al2O3 composite prepared by self-propagation high temperature synthesis with hot extrusion, Compos. Part B- Eng. 45(2013)785-791.

DOI: 10.1016/j.compositesb.2012.05.038
