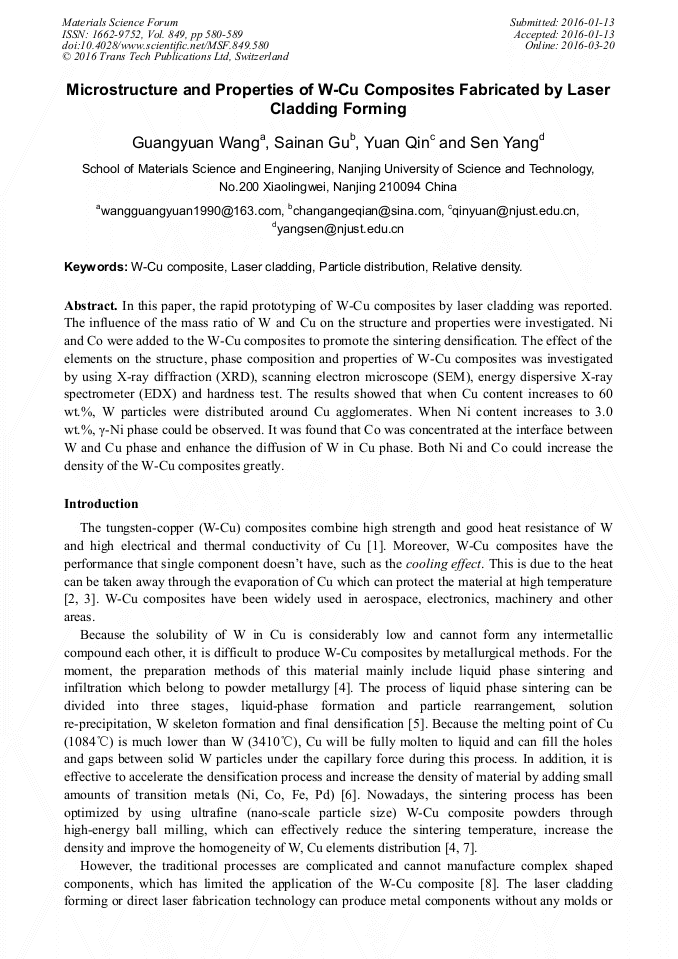

Microstructure and Properties of W-Cu Composites Fabricated by Laser Cladding Forming

Abstract:

In this paper, the rapid prototyping of W-Cu composites by laser cladding was reported. The influence of the mass ratio of W and Cu on the structure and properties were investigated. Ni and Co were added to the W-Cu composites to promote the sintering densification. The effect of the elements on the structure, phase composition and properties of W-Cu composites was investigated by using X-ray diffraction (XRD), scanning electron microscope (SEM), energy dispersive X-ray spectrometer (EDX) and hardness test. The results showed that when Cu content increases to 60 wt.%, W particles were distributed around Cu agglomerates. When Ni content increases to 3.0 wt.%, γ-Ni phase could be observed. It was found that Co was concentrated at the interface between W and Cu phase and enhance the diffusion of W in Cu phase. Both Ni and Co could increase the density of the W-Cu composites greatly.

• Periodical: Materials Science Forum (Volume 849)
• Pages: 580-589
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.849.580
• Online since: March 2016
• Authors: Guang Yuan Wang*, Sai Nan Gu, Yuan Qin, Sen Yang
• Keywords: Laser Cladding, Particle Distribution, Relative Density, W-Cu Composite

References

[1] A.G. Hamidi, H. Arabi, S. Rastegari, Tungsten–copper composite production by activated sintering and infiltration. Int. J. Refract. Met. Hard Mater. 29(2011) 538-541.

DOI: 10.1016/j.ijrmhm.2011.03.009

[2] J.L. Fan, S.G. Peng, T. Liu, et al., Application and research situation of W-Cu composite material. Rare Metals and Cemented Carbides. 34(2006) d0.

[3] J. Matějíček, F. Zahálka, J. Bensch, et al., Copper-tungsten composites sprayed by HVOF. J. Therm. Spray. Tech. 17(2008) 177-180.

DOI: 10.1007/s11666-008-9165-5

[4] J.C. Kim, S.S. Ryu, Do Kim Y, et al., Densification behavior of mechanically alloyed W-Cu composite powders by the double rearrangement process. Scr. Mater. 39(1998) 669-676.

DOI: 10.1016/s1359-6462(98)00232-2

[5] R.M. German, P. Suri, S.J. Park, Review: liquid phase sintering. J. Mater. Sci. 44(2009) 1-39.

[6] J.L. Johnson, R.M. German, Phase equilibria effects on the enhanced liquid phase sintering of tungsten-copper. Metall. Trans. A 24(1993) 2369-2377.

DOI: 10.1007/bf02646516

[7] Y. Li, X. Qu, Z. Zheng, et al., Properties of W–Cu composite powder produced by a thermo-mechanical method. Int. J. Refract. Met. Hard Mater. 21(2003) 259-264.

DOI: 10.1016/j.ijrmhm.2003.08.001

[8] C. Song, Y. Yang, Y. Liu, et al., Study on manufacturing of W-Cu alloy thin wall parts by selective laser melting. Int. J. Adv. Manuf. Tech. 78(2014) 885-893.

DOI: 10.1007/s00170-014-6689-3

[9] G.A. Ravi, X.J. Hao, N. Wain, et al., Direct laser fabrication of three dimensional components using SC420 stainless steel. Materials & Design. 47(2013) 731-736.

DOI: 10.1016/j.matdes.2012.12.062

[10] J.O. Milewski, G.K. Lewis, D.J. Thoma, et al., Directed light fabrication of a solid metal hemisphere using 5-axis powder deposition. J. Mater. Process. Tech. 75(1998) 165-172.

DOI: 10.1016/s0924-0136(97)00321-x

[11] M. Zhong, W. Liu, G. Ning, et al., Laser direct manufacturing of tungsten nickel collimation component. J. Mater. Process. Tech. 147(2004) 167-173.

DOI: 10.1016/j.jmatprotec.2003.12.009

[12] C. Atwood, M. Ensz, D. Greene, et al., Laser engineered net shaping (LENS (TM): A tool for direct fabrication of metal parts. Sandia National Laboratories, Albuquerque, NM, and Livermore, CA, (1998).

DOI: 10.2351/1.5059147

[13] X. Wu, A review of laser fabrication of metallic engineering components and of materials. Mater. Sci. Technol. 23(2007) 631-640.

[14] D.D. Gu, Y.F. Shen, Influence of Cu-liquid content on densification and microstructure of direct laser sintered submicron W–Cu/micron Cu powder mixture. Mater. Sci. Eng. A 489(2008) 169–177.

DOI: 10.1016/j.msea.2007.12.008

[15] D.D. Gu, Y.F. Shen, Effects of processing parameters on consolidation and microstructure of W–Cu components by DMLS. J. Alloys Compd. 473(2009) 107–115.

DOI: 10.1016/j.jallcom.2008.05.065

[16] H.H. Zhu, L. Lu, J.Y.H. Fuh, Influence of binder's liquid volume fraction on direct laser sintering of metallic powder. Mater. Sci. Eng. A 371(2004) 170-177.

DOI: 10.1016/j.msea.2003.11.048

[17] D.D. Gu, Y.F. Shen, X. Wu, Formation of a novel W-rim/Cu-core structure during direct laser sintering of W–Cu composite system. Mater. Lett. 62(2008) 1765-1768.

DOI: 10.1016/j.matlet.2007.09.087

[18] D.D. Gu, Y.F. Shen, Balling phenomena during direct laser sintering of multi-component Cu-based metal powder. J. Alloys Compd. 432(2007)163–166.

DOI: 10.1016/j.jallcom.2006.06.011

[19] I. Takamichi, I.L.G. Roderick, The physical properties of liquid metals, Clarendon Press, Oxford (1993).

[20] J.L. Johnson, J.J. Brezovsky, R.M. German, Effect of liquid content on distortion and rearrangement densification of liquid-phase-sintered W-Cu. Metall. Mater. Trans. A 36(2005) 1557-1565.

DOI: 10.1007/s11661-005-0247-4

[21] J.L. Johnson, J.J. Brezovsky, R.M. German, Effects of Tungsten Particle Size and Copper Content on Densification of Liquid-Phase-Sintered W-Cu. Metall. Mater. Trans. A 36(2005) 2807-2814.

DOI: 10.1007/s11661-005-0277-y
