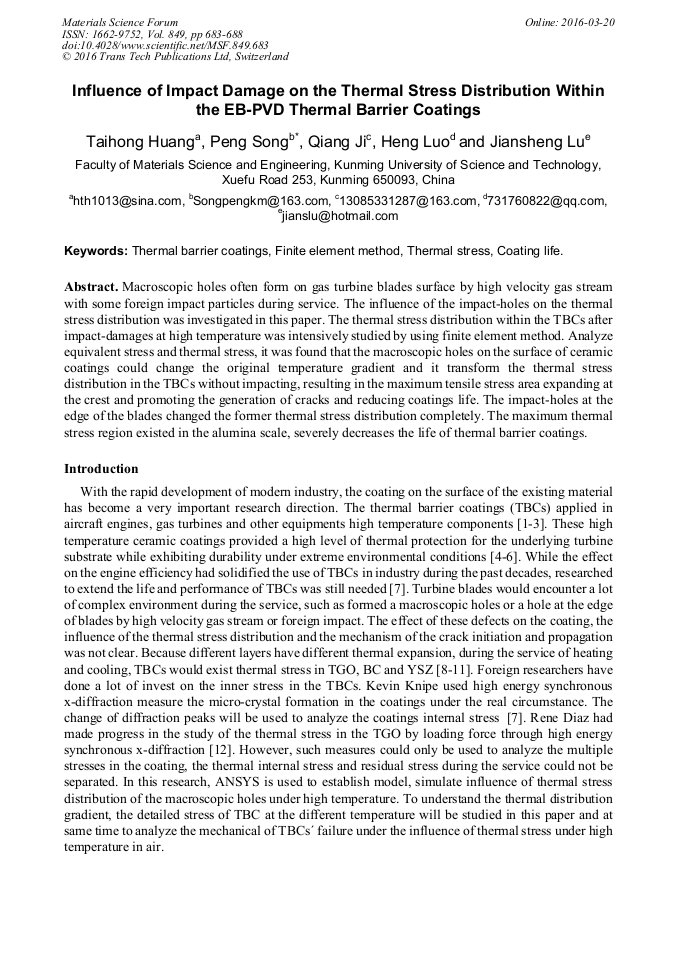

Influence of Impact Damage on the Thermal Stress Distribution within the EB-PVD Thermal Barrier Coatings

Abstract:

Macroscopic holes often form on gas turbine blades surface by high velocity gas stream with some foreign impact particles during service. The influence of the impact-holes on the thermal stress distribution was investigated in this paper. The thermal stress distribution within the TBCs after impact-damages at high temperature was intensively studied by using finite element method. Analyze equivalent stress and thermal stress, it was found that the macroscopic holes on the surface of ceramic coatings could change the original temperature gradient and it transform the thermal stress distribution in the TBCs without impacting, resulting in the maximum tensile stress area expanding at the crest and promoting the generation of cracks and reducing coatings life. The impact-holes at the edge of the blades changed the former thermal stress distribution completely. The maximum thermal stress region existed in the alumina scale, severely decreases the life of thermal barrier coatings.

• Periodical: Materials Science Forum (Volume 849)
• Pages: 683-688
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.849.683
• Online since: March 2016
• Authors: Tai Hong Huang, Peng Song*, Qiang Ji, Heng Luo, Jian Sheng Lu
• Keywords: Coating Life, Finite Element Method, Thermal Barrier Coatings, Thermal Stress

References

[1] A. G. Evans, D. R. Mumm, J. W. Hutchinson, Mechanisms controlling the durability of thermal barrier coatings, Prog. Mater. Sci. 46(2001)505-553.

DOI: 10.1016/s0079-6425(00)00020-7

[2] N. Patdture, M. Gell, E. Jordan, Thermal barrier coatings for gas turbine engine applications, Sci. 296(2002)280-284.

DOI: 10.1126/science.1068609

[3] A.G. Evans, D. R. Clarke, C. G. Levi, The influence of oxides on the performance of advanced gas turbines, J European Ceramic Soc. 28(2008)1405-1419.

DOI: 10.1016/j.jeurceramsoc.2007.12.023

[4] C. Pertorak, J. IlavNsky, H. Wang, Microstructural evolution of 7 wt. % Y2O3-ZrO2 thermal barrier coatings due to stress relaxation at elevated temperatures and the concomitant changes in thermal conductivity, Surf. Coat. Technol. 205(2010)57-65.

DOI: 10.1016/j.surfcoat.2010.06.007

[5] M. Gell, J. Eric, V. Krishnakumar, K. McCarron, Bond strength, bond stress and spallation mechanisms of thermal barrier coatings, Surf. Coat. Technol. 120(1999), 53-60.

DOI: 10.1016/s0257-8972(99)00338-2

[6] X. Wang, R. Wu, A. Atkinson, Characterization of residual stress and interface degradation in TBCs by photo-luminescence piezo-spectroscopy, Surf. Coat. Technol. 204(2010)2472-2482.

DOI: 10.1016/j.surfcoat.2010.01.035

[7] K. Knipe1, A. Manero II1, S. F. Siddiqui, Strain response of thermal barrier coatings captured under extreme engine environments through synchrotron X-ray diffraction, Nature Communications. 2014, DOI: 10. 1038/ncomms5559.

DOI: 10.1038/ncomms5559

[8] E. Busso, H. Evans, Z. Qian, Effects of breakaway oxidation on local stresses in thermal barrier coatings, Acta Mater. 58(2009)1242-1251.

DOI: 10.1016/j.actamat.2009.10.028

[9] C. Mercer, K. Kawagishi, T. Tomimatsu, A comparative investigation of oxide formation on eq (equilibrium) and NiCoCrAlY bond coats under stepped thermal cycling, Surf. Coat. Technol. 205(2011)3066-3072.

DOI: 10.1016/j.surfcoat.2010.11.026

[10] M. Wen, E. H. Jordan, M. Gell, Effect of temperature on rumpling and thermally grown oxide stress in an EB-PVD thermal barrier coating, Surf. Coat. Technol. 201(2006)3289-3298.

DOI: 10.1016/j.surfcoat.2006.07.212

[11] Y. Zhou, T. Hashida, Coupled effects of temperature gradient and oxidation on thermal stress in thermal barrier coating system, Int. J. Solids Struct. 38(2006)4235-4264.

DOI: 10.1016/s0020-7683(00)00309-7

[12] D. Rene, J. Melan, M. Mitra, Role of mechanical loads in inducing in-cycle tensile stress in thermally grown oxide. Appl. Phys. Lett. 100 (2012) 111906.
