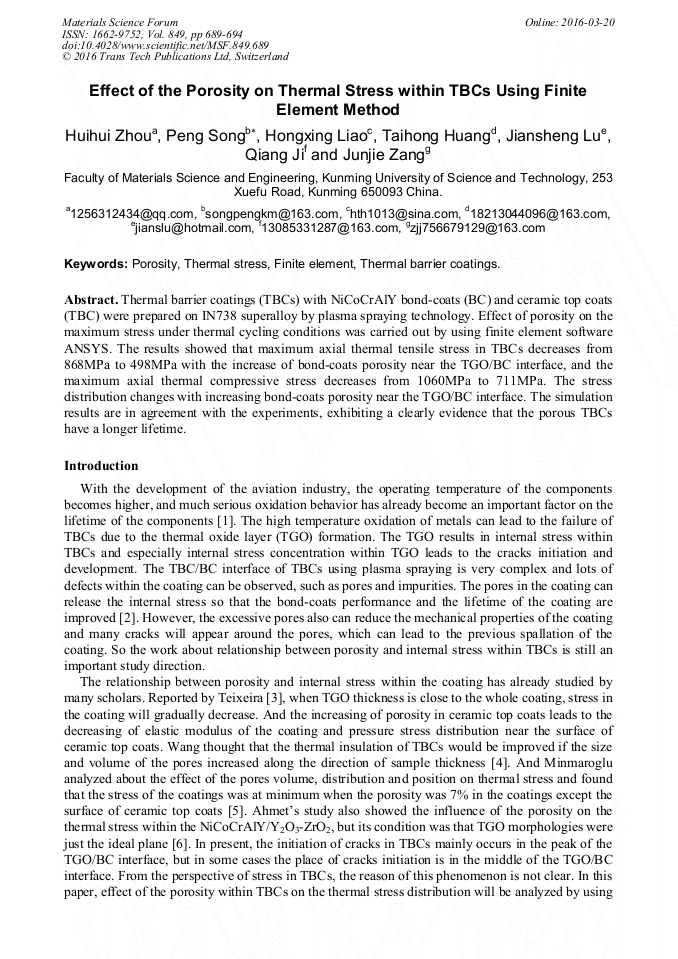

Effect of the Porosity on Thermal Stress within TBCs Using Finite Element Method

Abstract:

Thermal barrier coatings (TBCs) with NiCoCrAlY bond-coats (BC) and ceramic top coats (TBC) were prepared on IN738 superalloy by plasma spraying technology. Effect of porosity on the maximum stress under thermal cycling conditions was carried out by using finite element software ANSYS. The results showed that maximum axial thermal tensile stress in TBCs decreases from 868MPa to 498MPa with the increase of bond-coats porosity near the TGO/BC interface, and the maximum axial thermal compressive stress decreases from 1060MPa to 711MPa. The stress distribution changes with increasing bond-coats porosity near the TGO/BC interface. The simulation results are in agreement with the experiments, exhibiting a clearly evidence that the porous TBCs have a longer lifetime.

• Periodical: Materials Science Forum (Volume 849)
• Pages: 689-694
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.849.689
• Online since: March 2016
• Authors: Hui Hui Zhou, Peng Song*, Hong Xing Liao, Tai Hong Huang, J.S. Lu, Qiang Ji, Jun Jie Zang
• Keywords: Finite Element, Porosity, Thermal Barrier Coatings, Thermal Stress

References

[1] J. R. Nicholls, R. M. Stephenson, High temperature coatings for gas turbines, Met. and Mater. 17 (1991) 156-163.

[2] A. Bennett, Properties of thermal barrier coatings, Mate. Sci. and Technol. 2 (1986) 257-261.

[3] T. Vasco, Numerical analysis of the influence of coating porosity and substrate elastic properties on the residual stresses in high temperature graded coatings, Surf. and Coat. Technol. s 146–147 (2001) 79-84.

DOI: 10.1016/s0257-8972(01)01457-8

[4] L. Wang, Y. Wang, X. G. Sun, Influence of pores on the thermal insulation behavior of thermal barrier coatings prepared by atmospheric plasma spray, Mater. and Des. 32 (2011) 36-47.

DOI: 10.1016/j.matdes.2010.06.040

[5] A. Mimaroglu, U. Kocabicak, S. Genc, Influence of porosity characteristics in MgO. ZrO2-GG coatings subjected to thermal loading, Mater. and Des. 18 (1997) 77-80.

DOI: 10.1016/s0261-3069(97)00042-3

[6] P. Ahmet, S. Ozkan, C. Erdal, Effects of porosity on thermal loadings of functionally graded Y2O3-ZrO2/ NiCoCrAlY coatings, Mater. and Des. 23 (2002) 641-644.

DOI: 10.1016/s0261-3069(02)00064-x

[7] Peng Song, Influence of Material and Testing Parameters on the Lifetime of TBC Systems with MCrAlY and NiPtAl Bondcoats, Forschungszentrum Juelich GmbH, Juelich, (2012).

[8] D. R. Mumm, A. G. Evans, On the role of imperfections in the failure of a thermal barrier coating made by electron beam deposition, Acta Mater. 48(2000) 1815-1827.

DOI: 10.1016/s1359-6454(99)00473-5

[9] X. F. Bi, H. B. Xu, S. K. Gong, Investigation of the failure mechanism of thermal barrier coatings prepared by electron beam physical vapor deposition, Surf. and Coat. Technol. 130 (2000) 122-127.

DOI: 10.1016/s0257-8972(00)00693-9
