Microstructure and Mechanical Properties of the Weld Joint of Small Diameter Glass-Lined Metal Pipe with Inner Surface Layer

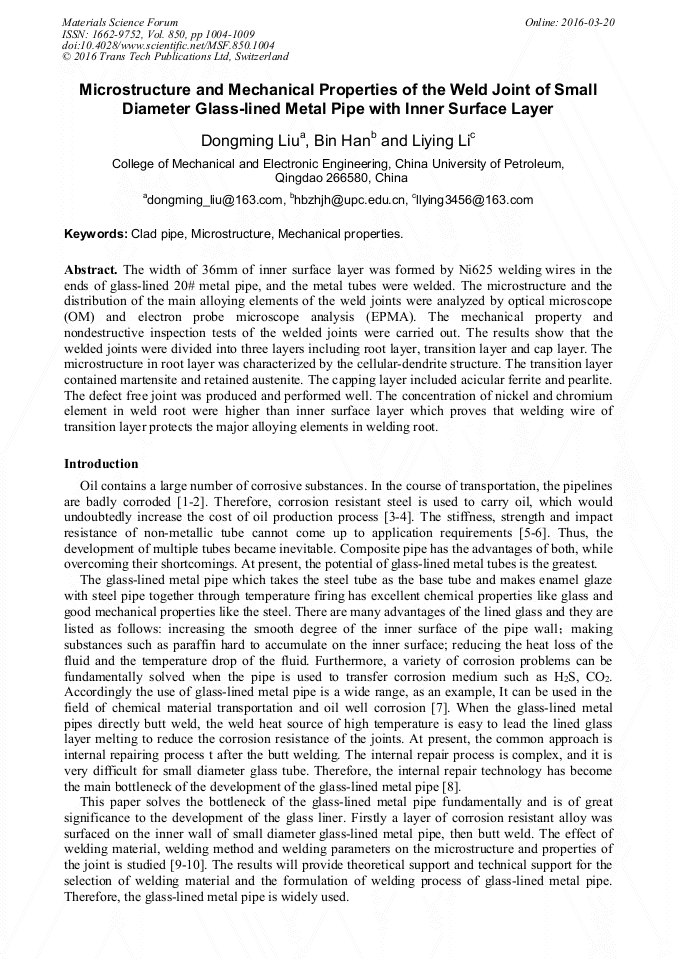

Abstract:

The width of 36mm of inner surface layer was formed by Ni625 welding wires in the ends of glass-lined 20# metal pipe, and the metal tubes were welded. The microstructure and the distribution of the main alloying elements of the weld joints were analyzed by optical microscope (OM) and electron probe microscope analysis (EPMA). The mechanical property and nondestructive inspection tests of the welded joints were carried out. The results show that the welded joints were divided into three layers including root layer, transition layer and cap layer. The microstructure in root layer was characterized by the cellular-dendrite structure. The transition layer contained martensite and retained austenite. The capping layer included acicular ferrite and pearlite. The defect free joint was produced and performed well. The concentration of nickel and chromium element in weld root were higher than inner surface layer which proves that welding wire of transition layer protects the major alloying elements in welding root.

• Periodical: Materials Science Forum (Volume 850)
• Pages: 1004-1009
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.850.1004
• Online since: March 2016
• Authors: Dong Ming Liu, Bin Han, Li Ying Li
• Keywords: Clad Pipe, Mechanical Properties, Microstructure

References

[1] M.B. Kermani, A. Morshed, Carbon dioxide corrosion in oil and gas production-a compendium, J. Corrosion, 2003, 59( 8): 659-683.

DOI: 10.5006/1.3277596

[2] M.X. Lu, Z.Q. Bai, X.W. Zhao, et al. Actuality and typical cases for corrosion in the process of extraction, gathering, storage and transmission for oil and gas, J. Corrosion ＆ protection, 2002, 23(3): 105-113.

[3] F. Yu, J.P. Qin, Application of dual metal pipe in pipe line service, J. Steel Pipe, 2000, 29(1): 34-36.

[4] N.L. Wang, X.D. Pan, J. Xue, Welding procedure and resistant to corrosion properties for welded joint of 20/ 0Cr18Ni9 clad pipe, J. Welding & Joining, 2003( 5) : 23-26.

[5] M.A. Spence, C.V. Roscoe, Bi-metal CRA-lined pipe employed for north sea field development, J. Oil ＆Gas Journal, 1999, 97(18): 80－88.

[6] A.M. Torbati, R.M. Miranda, L. Quintino, et al, Optimization procedures for GMAW of bimetal pipes[J]. Journal of Materials Processing Technology, 2011, 211(6): 1112-1116.

DOI: 10.1016/j.jmatprotec.2011.01.013

[7] W.C. Chen, C.W. Petersen. Corrosion performance of welded CRA-lined pipes for flow lines[J]. SPE Production Engineering, 1992, 7(4): 375-378.

DOI: 10.2118/22501-pa

[8] B.S. Huang, Z.K. Wang. State of art and trends of Internal coating technology of oil and gas pipeline[J]. Corrosion Science and Protection Technology, 2012, 04: 345-348.

[9] B.S. Huang, G. Liu, J. Liu. Effect of aging treatment on microstructure and properties of dissimilar materials joint[J]. Transactions of Materials and Heat Treatment, 2013, 10: 139-145.

[10] L.Y. Li, C. Wang, B. Han. Microstructure and mechanical properties of L415 /316L clad pipe joint fabricated by free-argon welding[J]. Transactions of Materials and Heat Treatment, 2014, 01: 125-130.
