Failure Analysis on a Non-Occupation Refined-Oil Pipeline

Feng Wang; Bin Feng; Bao Min Chu; Yu Ran Fan; Qiao Fei Sun; Yu Hai Gao

doi:10.4028/www.scientific.net/MSF.850.977

Paper Titles

Residual Strength Analysis of Oil Tubes with Corrosion Defect
p.950

Contrastive Study on Finite Element Models of High-Strength Pipelines Crossing Active Faults
p.957

Mechanisms of Thermo-Mechanical Process on Grain Boundary Character Distribution of 316L Austenitic Stainless Steel
p.965

Analysis of N80 Tubing Failure for CBM Well Drainage
p.971

Failure Analysis on a Non-Occupation Refined-Oil Pipeline
p.977

Influence of Deformation and Temperature on the Austenitic Stainless Steel Performance
p.984

Effects of Finish Cooling Temperature on Microstructure and Properties of X100 Pipeline Steels
p.993

Feasibility of FRP as the Oil and Gas Long-Distance Pipeline Material in the Area with the High Voltage Electric-Power Line
p.1000

Microstructure and Mechanical Properties of the Weld Joint of Small Diameter Glass-Lined Metal Pipe with Inner Surface Layer
p.1004

HomeMaterials Science ForumMaterials Science Forum Vol. 850Failure Analysis on a Non-Occupation Refined-Oil...

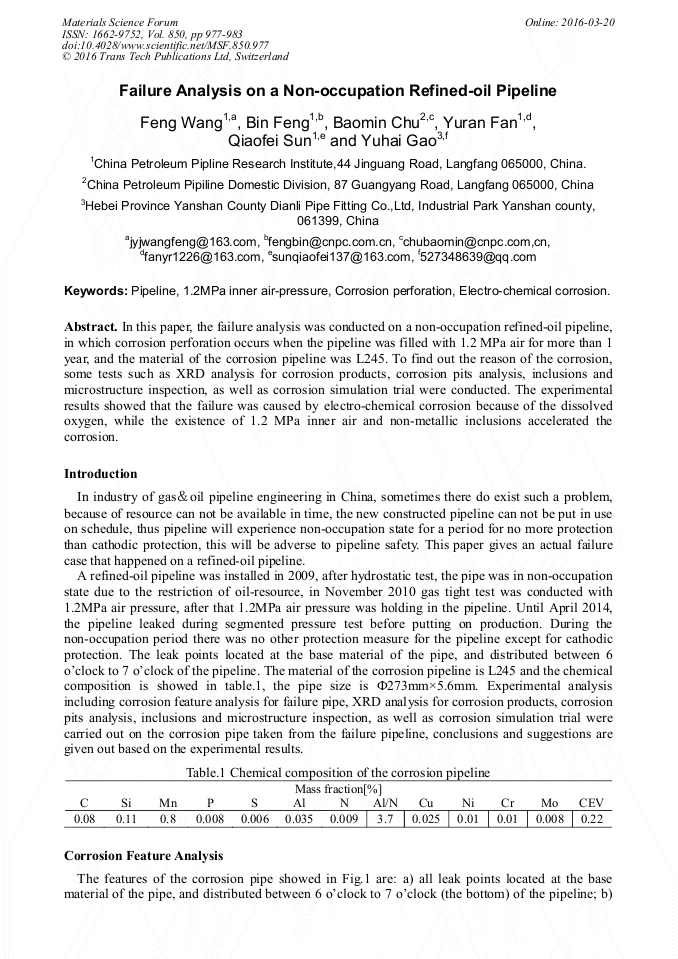

Failure Analysis on a Non-Occupation Refined-Oil Pipeline

Abstract:

In this paper, the failure analysis was conducted on a non-occupation refined-oil pipeline, in which corrosion perforation occurs when the pipeline was filled with 1.2 MPa air for more than 1 year, and the material of the corrosion pipeline was L245. To find out the reason of the corrosion, some tests such as XRD analysis for corrosion products, corrosion pits analysis, inclusions and microstructure inspection, as well as corrosion simulation trial were conducted. The experimental results showed that the failure was caused by electro-chemical corrosion because of the dissolved oxygen, while the existence of 1.2 MPa inner air and non-metallic inclusions accelerated the corrosion.

You might also be interested in these eBooks

Methods of Design and Characterization of Materials, Research and Development of Technological Processes

View Preview

Info:

Periodical:

Materials Science Forum (Volume 850)

Pages:

977-983

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.850.977

Citation:

Cite this paper

Online since:

March 2016

Authors:

Feng Wang, Bin Feng, Bao Min Chu, Yu Ran Fan, Qiao Fei Sun, Yu Hai Gao

Keywords:

1.2MPa Inner Air-Pressure, Corrosion Perforation, Electro-Chemical Corrosion, Pipeline

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] C.J. Tan, H. Jiang, L. Zhang, J.W. Shi, Failure analysis of corrosion perforation of low pressure gathering pipeline in an oilfield, Corrosion and Protection. 2014. 35(1): 99-106.

Google Scholar

[2] W. Zhang, J.G. Hu, X. Tian, Corrosion Characteristic and Protection Measurement Research of Econdensate System, Fadian Jishu. 2013. 78-80.

Google Scholar

[3] GB/T 9711. 2, Petroleum and natural gas industries-Steel pipe for pipeline transportation systems-Technical delivery conditions-Part 2: Pipes of requirement class B, (1999).

DOI: 10.3403/01717167

Google Scholar

[4] Zhang Dong, Failure Analysis, Bei Jing: National Defense Industry Press. 2005: 185-187.

Google Scholar

[5] GB/T 6493, Metal-methods for estimating the average grain size, (2002).

Google Scholar

[6] GB/T 10561, Steel-Determination of content of nonmetallic inclusions-Micrographic method using standards diagrams, (2005).

Google Scholar

[7] L.X. Liu, Y.Q. Wang, Qualitative Analysis and Improvement Measures of Frequent Defects on Steel Plate Rolled from Ingot, Wide and Heavy Plate. 2012, 18(3): 34-38.

Google Scholar

[8] H. Zhang W.S. Chang, X.Q. Chen, Reserch of Pitting in Carbon Steel and Low Alloy steel, Corrosion Reasearch. 2011, 25(6): 41-45.

Google Scholar

[9] J.M. Wang, Y. Zhang, Y.F. Zang, Effect of Inclusions in Low Alloy-steels on Pitting, Equipment Environmental Engineering. 2013, 10(1): 13-16.

Google Scholar

[10] Y.C. Zhang, M. Xu, X. Lliu, L. Guo, Y. Guo, L. Wang, H.B. Wang, Corrosion Perforation Failure Analysis of a Natural Gas Pipeline, Production Practice. 2014, 27(04) : 65-67.

Google Scholar

[11] M. Zhu C.W. Du, Z.Y. Liu, X.L. Zhan, X.G. Li, Corrosion Failure Analysis on Water Pipeline, Corrosion Science and Protection Technology. 2013, 25(05): 417-419.

Google Scholar

[12] D.L. Gao, Z.X. Zhao, J. Qin, Z.Y. Xia, P. He, Deffect of Internal Pressure and Localized Corrosion on Pipeline Corrosion Rate, Drilling & Production Technology. 2009, 32(3): 88-92.

Google Scholar
