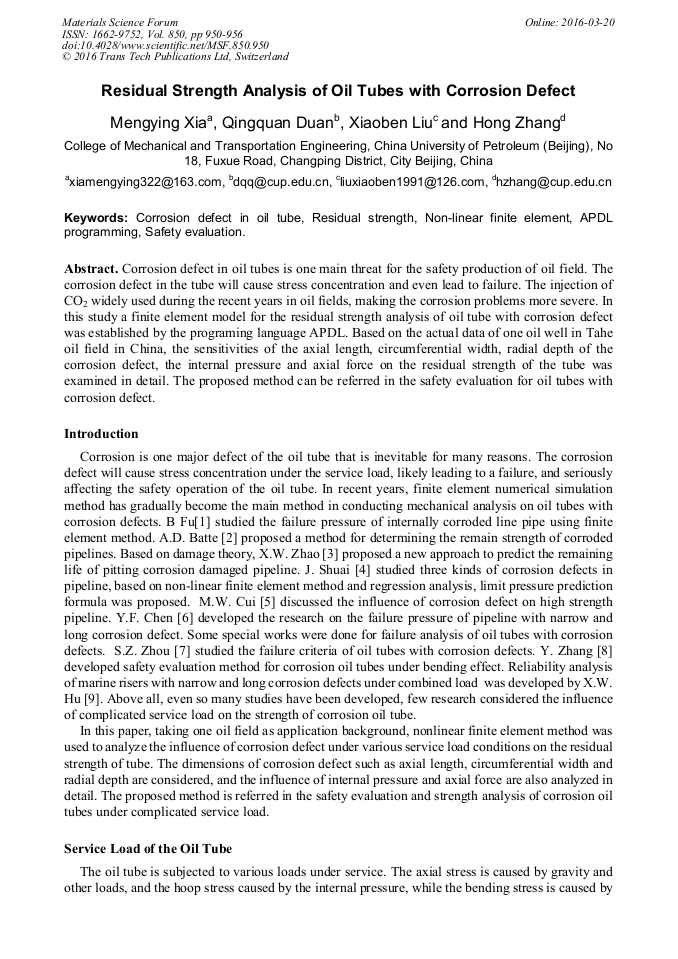

Residual Strength Analysis of Oil Tubes with Corrosion Defect

Abstract:

Corrosion defect in oil tubes is one main threat for the safety production of oil field. The corrosion defect in the tube will cause stress concentration and even lead to failure. The injection of CO₂ widely used during the recent years in oil fields, making the corrosion problems more severe. In this study a finite element model for the residual strength analysis of oil tube with corrosion defect was established by the programing language APDL. Based on the actual data of one oil well in Tahe oil field in China, the sensitivities of the axial length, circumferential width, radial depth of the corrosion defect, the internal pressure and axial force on the residual strength of the tube was examined in detail. The proposed method can be referred in the safety evaluation for oil tubes with corrosion defect.

• Periodical: Materials Science Forum (Volume 850)
• Pages: 950-956
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.850.950
• Online since: March 2016
• Authors: Meng Ying Xia, Qing Quan Duan, Xiao Ben Liu, Hong Zhang
• Keywords: APDL Programming, Corrosion Defect in Oil Tube, Non-Linear Finite Element, Residual Strength, Safety Evaluation

References

[1] B. Fu, M.G. Kirkwood, Prediction failure pressure of internally corroded line pipe using the finite element method, International Conference on Offshore Mechanics and Arctic Engineering, Copenhagen, Denmark, (1995) 165-184.

[2] A.D. Batte, B. Fu, M.G. Kirkwood, et al, New methods for determining the remaining strength of corroded pipeline, International Conference on Offshore Mechanics and Arctic Engineering. Yokohama, Japan, (1997) 221-228.

[3] X.W. Zhao, J.H. Luo, M.S. Zheng, el al, A method for predicting remaining life of pipeline with dispersion type corrosion damage, ACTA PETROL. SIN. 27(2006) 119-123.

[4] J. Shuai, C.E. Zhang, F.L. Chen, Prediction of failure pressure in corroded pipelines based on non-linear finite element analysis, ACTA PETROL. SIN. 29(2008) 933-937.

DOI: 10.1115/ipc2008-64260

[5] M.W. Cui, X.W. Cao, Impact of corrosion defects on failure pressure of medium-high strength oil-gas pipelines, ACTA PETROL. SIN. 33(2012) 1086-1092.

[6] Y.F. Chen, X. Li, J. Zhou, Limit load capacity of pipes with long longitudinal corrosion, J. Ship Mechanics. 13(2009) 748-756.

[7] S.Z. Zhou, D. He, Z.P. Lu, Study the waste standard of the defective oil pipe by finite element method, Oil Field Equipment. 35 (2006) 19-22.

[8] Y. Zhang, X. Peng, T. Huang, et al, Safety evaluation of running into curved portion for oil tube containing spherical corrosion pit, J. S. Univ. Technol. 36(2014) 526-531.

[9] X.W. Hu, C.F. Zhou, M.L. Duan, et al, Reliability analysis of marine risers with narrow and long corrosion defects under combined loads, Petro. Sci. 11(2014) 139-146.

DOI: 10.1007/s12182-014-0325-6

[10] B. Ma, J. Shuai, D.X. Liu, et al, A finite-element-based analysis of the accuracy in bursting tests predicting the ultimate load of a buried pipeline, Nat. Gas Ind. 33(2013) 108-112.

[11] J. Shuai, Pipeline mechanics, Frist ed., Science Press, Beijing, 2010. pp.19-25.

[12] Specification for casing and tubing, API Specification 5CT. eighth ed., (2005).

[13] J.E. Abdalla Filho, R.D. Machado, R.J. Bertin, M.D. Valentini, On the failure pressure of pipelines containing wall reduction and isolated pit corrosion defects, Comput. Struct. 132(2014) 22-33.

DOI: 10.1016/j.compstruc.2013.10.017

[14] The American Society of Mechanical Engineers, ASME FFS-1-2007 fitness-for-service, second ed., API, Washington DC, (2007).

[15] X.W. Zhao, J.H. Luo, M.X. Lu, Finite element analysis of corroded pipeline remaining strength, Oil Gas Stg. Trans. 20(2001) 18-21.

[16] D.S. He, J. Guo, P. Zhang, Zhang Peng. Assessment method for remaining strength of corroded pipeline and its application, ACTA PETROL. SIN. 28(2007): 125-128.

[17] C. L. Su, X. Li, J. Zhou. Impacts of axial corrosion width on ultimate internal pressure load of pipeline. Oil and Gas Transportation and Storage. 7(2014): 723-728.
