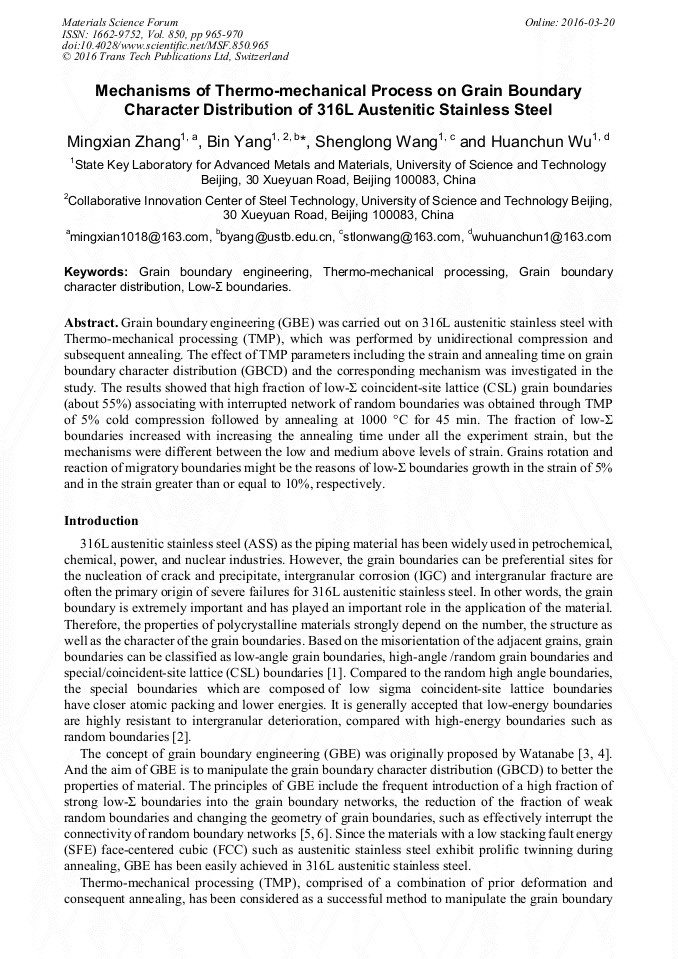

Mechanisms of Thermo-Mechanical Process on Grain Boundary Character Distribution of 316L Austenitic Stainless Steel

Abstract:

Grain boundary engineering (GBE) was carried out on 316L austenitic stainless steel with Thermo-mechanical processing (TMP), which was performed by unidirectional compression and subsequent annealing. The effect of TMP parameters including the strain and annealing time on grain boundary character distribution (GBCD) and the corresponding mechanism was investigated in the study. The results showed that high fraction of low-Σ coincident-site lattice (CSL) grain boundaries (about 55%) associating with interrupted network of random boundaries was obtained through TMP of 5% cold compression followed by annealing at 1000 °C for 45 min. The fraction of low-Σ boundaries increased with increasing the annealing time under all the experiment strain, but the mechanisms were different between the low and medium above levels of strain. Grains rotation and reaction of migratory boundaries might be the reasons of low-Σ boundaries growth in the strain of 5% and in the strain greater than or equal to 10%, respectively.

• Periodical: Materials Science Forum (Volume 850)
• Pages: 965-970
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.850.965
• Online since: March 2016
• Authors: Ming Xian Zhang, Bin Yang, Sheng Long Wang, Huan Chun Wu
• Keywords: Grain Boundary Character Distribution, Grain Boundary Engineering, Low-Σ Boundaries, Thermo-Mechanical Processing

References

[1] H. Akhiani, M. Nezakat, M. Sanayei, J. Szpunar, The effect of thermo-mechanical processing on grain boundary character distribution in Incoloy 800H/HT, Mat Sci Eng A-Struct. 626 (2015) 51-60.

DOI: 10.1016/j.msea.2014.12.046

[2] W.Z. Jin, H. Kokawa, Z.J. Wang, Y.S. Sato, N. Hara, Improvement of transpassive intergranular corrosion resistance of 304 austenitic stainless steel by thermo-mechanical processing for twin-induced grain boundary engineering, Isij Int. 50 (2010).

DOI: 10.2355/isijinternational.50.476

[3] S. Mandal, A.K. Bhaduri, V.S. Sarma, One-step and iterative thermo-mechanical treatments to enhance Σ3n boundaries in a Ti-modified austenitic stainless steel, J Mater Sci. 46 (2011) 275-284.

DOI: 10.1007/s10853-010-4982-6

[4] T. Watanabe, An approach to grain boundary design for strong and ductile polycrystals, Res Mech. 11 (1984) 47-84.

[5] B.R. Kumar, S.K. Das, B. Mahato, A. Das, S. Ghosh Chowdhury, Effect of large strains on grain boundary character distribution in AISI 304L austenitic stainless steel, Mat Sci Eng A-Struct. 454-455 (2007) 239-244.

DOI: 10.1016/j.msea.2006.11.053

[6] S. Sinha, D.I. Kim, E. Fleury, S. Suwas, Effect of grain boundary engineering on the microstructure and mechanical properties of copper containing austenitic stainless steel, Mat Sci Eng A-Struct. 626 (2015) 175-185.

DOI: 10.1016/j.msea.2014.11.053

[7] K. Kurihara, H. Kokawa, S. Sato, Y.S. Sato, H.T. Fujii, M. Kawai, Grain boundary engineering of titanium-stabilized 321 austenitic stainless steel, J Mater Sci. 46 (2011) 4270-4275.

DOI: 10.1007/s10853-010-5244-3

[8] M. Shimada, H. Kokawa, Z.J. Wang, Y.S. Sato, I. Karibe, Optimization of grain boundary character distribution for intergranular corrosion resistant 304 stainless steel by twin-induced grain boundary engineering, Acta Mater. 50 (2002) 2331-2341.

DOI: 10.1016/s1359-6454(02)00064-2

[9] M. Michiuchi, H. Kokawa, Z.J. Wang, Y.S. Sato, K. Sakai, Twin-induced grain boundary engineering for 316 austenitic stainless steel, Acta Mater. 54 (2006) 5179-5184.

DOI: 10.1016/j.actamat.2006.06.030

[10] S. Xia, H. Li, T.G. Liu, B.X. Zhou, Appling grain boundary engineering to Alloy 690 tube for enhancing intergranular corrosion resistance, J Nucl Mater. 416 (2011) 303-310.

DOI: 10.1016/j.jnucmat.2011.06.017

[11] X.Y. Fang, Z.Y. Liu, M. Tikhonova, A. Belyakov, W.G. Wang, Evolution of texture and development of Σ3n grain clusters in 316 austenitic stainless steel during thermal mechanical processing, J Mater Sci. 48 (2013) 997-1004.

DOI: 10.1007/s10853-012-6829-9
