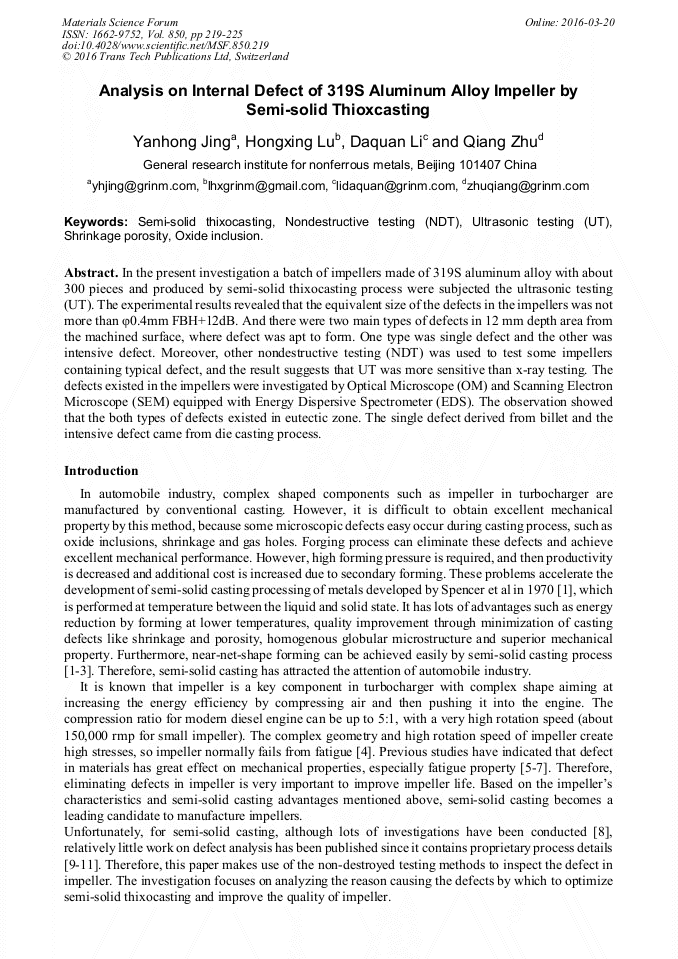

Analysis on Internal Defect of 319S Aluminum Alloy Impeller by Semi-Solid Thioxcasting

Abstract:

In the present investigation a batch of impellers made of 319S aluminum alloy with about 300 pieces and produced by semi-solid thixocasting process were subjected the ultrasonic testing (UT). The experimental results revealed that the equivalent size of the defects in the impellers was not more than φ0.4mm FBH+12dB. And there were two main types of defects in 12 mm depth area from the machined surface, where defect was apt to form. One type was single defect and the other was intensive defect. Moreover, other nondestructive testing (NDT) was used to test some impellers containing typical defect, and the result suggests that UT was more sensitive than x-ray testing. The defects existed in the impellers were investigated by Optical Microscope (OM) and Scanning Electron Microscope (SEM) equipped with Energy Dispersive Spectrometer (EDS). The observation showed that the both types of defects existed in eutectic zone. The single defect derived from billet and the intensive defect came from die casting process.

• Periodical: Materials Science Forum (Volume 850)
• Pages: 219-225
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.850.219
• Online since: March 2016
• Authors: Yan Hong Jing*, Hong Xing Lu, Da Quan Li, Qiang Zhu
• Keywords: Nondestructive Testing (NDT), Oxide Inclusion, Semi-Solid Thixocasting, Shrinkage Porosity, Ultrasonic Testing (UT)

References

[1] Flemings Merton C. Behavior of metal alloys in the semisolid state. Metallurgical Transactions B, 1991, 22: 269-293.

DOI: 10.1007/bf02651227

[2] Chen C Y, Sekh J A, Backman D G, et al. Thixoforging of Aluminum Alloy. Materials Science and Engineering, 1979, 40: 265–272.

[3] Zhu Qiang and Midson S P. Semi-solid moulding: Competition to cast and machine from forging in making automotive complex components. Transactions of Nonferrous Metals Society of China 20, 2010, 3: 1042-1047.

DOI: 10.1016/s1003-6326(10)60628-0

[4] Zhu Qiang, Midson S P, et al. Casting and Heat Treatment of Turbocharger Impellers thixocast from Alloy 201. Solid State Phenomena, 2012, 192-193: 556-561.

DOI: 10.4028/www.scientific.net/ssp.192-193.556

[5] Dispinar D, Akhtar S, Nordmark A, et al. Correlation Between Mechanical Properties and Porosity Distribution of A356 in Gravity Die Casting and Low Pressure Die Casting. Advanced Materials Research, 2012, 445: 283-288.

DOI: 10.4028/www.scientific.net/amr.445.283

[6] Ammar H R. Effect of casting imperfections on fatigue life of 319-F and A356-T6 Al-Si casting alloys, Materials Science & Engineering A, 2008, 473: 65-75.

DOI: 10.1016/j.msea.2007.03.112

[7] Jang Younghwan, Sanguk Jin, Youin Jeong, Sangshik Kim, Fatigue Life Prediction for Porosity-Containing Cast 319-T7 Aluminum Alloy, Metallurgical Materials Transactions A, 2009, 40: 1090-1099.

DOI: 10.1007/s11661-009-9795-3

[8] Abbasi-Khazaei B, Ghaderi S. A Novel Process in Semi-Solid Metal Casting. Journal of Materials Science & Technology, 2012, 28: 946-950.

DOI: 10.1016/s1005-0302(12)60156-x

[9] Birol Y. Semi-solid processing of the primary aluminium die casting alloy A365. Journal of Alloys and Compounds, 2009, 473: 133-138.

DOI: 10.1016/j.jallcom.2008.05.074

[10] Jiang H, Nguyen T H, Prud'homme M. Optimal control of induction heating for semi-solid aluminum alloy forming. Journal of Materials Processing Technology, 2007, 189: 182-191.

DOI: 10.1016/j.jmatprotec.2007.01.020

[11] Kang C G, Seo P K, Kang S S. The effect of injection velocity on liquid segregation and mechanical properties in arm part fabricated by semi-solid die casting process, Journal of Materials Processing Technology, 2006, 176: 32-40.

DOI: 10.1016/j.jmatprotec.2006.02.002

[12] Jiang Tianpeng. Ray Testing. China labor social security publishing house, Beijing, 2007, 73. Campell J. Casting, Sicence Press, Beijing, 333.
