Facile Synthesis of Phosphogypsum-Based Whiskers by Low Temperature Hydrothermal Route with CTAB Addition

Lin Lin Zhuang; Ming Ding; Cheng Liang Han

doi:10.4028/www.scientific.net/MSF.852.1450

Paper Titles

Influence of Heat Pre-Treatment on Washing Pre-Treated MSWI Fly Ash Cementitious Activity
p.1421

Progress in BiVO₄ Photocatalyst under Visible Light
p.1429

Modulus Parameter Analysis and Calculation of Steel Deck Asphalt Pavement Material
p.1436

Research on Properties of the Concrete with Waste Rubber Powder
p.1443

Facile Synthesis of Phosphogypsum-Based Whiskers by Low Temperature Hydrothermal Route with CTAB Addition
p.1450

Low-Cost Preparation of SBA-15 Silica Molecular Sieve and High Humidity Sensing Property in a Wide Range of Relative Humidity
p.1455

Preparation of HTLcs from Magnesium Desulfurization Residues and their Catalytic Performance in Degradation of Waste Polyester
p.1463

Study on the Drying Shrinkage Property of Magnesium Phosphate Cement
p.1468

Preparation of Bi_1-xLa_xVO₄and its Photocatalytic Degradation on Rhodamine B
p.1473

HomeMaterials Science ForumMaterials Science Forum Vol. 852Facile Synthesis of Phosphogypsum-Based Whiskers...

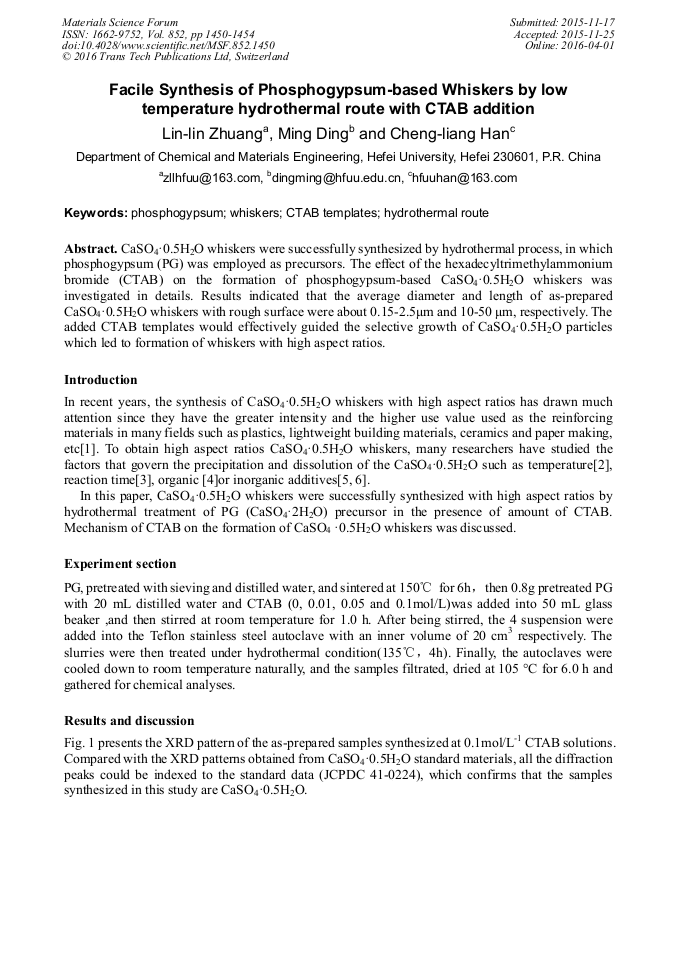

Facile Synthesis of Phosphogypsum-Based Whiskers by Low Temperature Hydrothermal Route with CTAB Addition

Abstract:

CaSO₄·0.5H₂O whiskers were successfully synthesized by hydrothermal process, in which phosphogypsum (PG) was employed as precursors. The effect of the hexadecyltrimethylammonium bromide (CTAB) on the formation of phosphogypsum-based CaSO₄·0.5H₂O whiskers was investigated in details. Results indicated that the average diameter and length of as-prepared CaSO₄·0.5H₂O whiskers with rough surface were about 0.15-2.5μm and 10-50 μm, respectively. The added CTAB templates would effectively guided the selective growth of CaSO₄·0.5H₂O particles which led to formation of whiskers with high aspect ratios.
