Low-Cost Preparation of SBA-15 Silica Molecular Sieve and High Humidity Sensing Property in a Wide Range of Relative Humidity

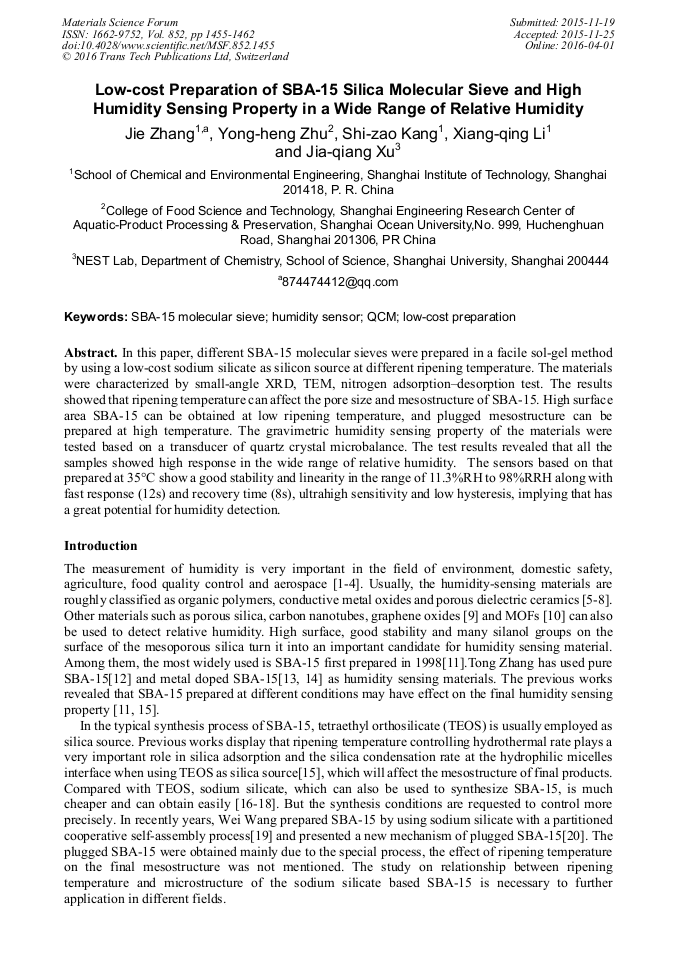

Article Preview

Abstract:

In this paper, different SBA-15 molecular sieves were prepared in a facile sol-gel method by using a low-cost sodium silicate as silicon source at different ripening temperature. The materials were characterized by small-angle XRD, TEM, nitrogen adsorption–desorption test. The results showed that ripening temperature can affect the pore size and mesostructure of SBA-15. High surface area SBA-15 can be obtained at low ripening temperature, and plugged mesostructure can be prepared at high temperature. The gravimetric humidity sensing property of the materials were tested based on a transducer of quartz crystal microbalance. The test results revealed that all the samples showed high response in the wide range of relative humidity. The sensors based on that prepared at 35°C show a good stability and linearity in the range of 11.3%RH to 98%RRH along with fast response (12s) and recovery time (8s), ultrahigh sensitivity and low hysteresis, implying that has a great potential for humidity detection.

You might also be interested in these eBooks
Functional Materials Research View Preview

Info:

Periodical:

Materials Science Forum (Volume 852)

Pages:

1455-1462

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.852.1455

Citation:

Cite this paper

Online since:

April 2016

Authors:

Jie Zhang, Yong Heng Zhu, Shi Zao Kang, Xiang Qing Li, Jia Qiang Xu

Keywords:

Humidity Sensor, Low-Cost Preparation, QCM, SBA-15 Molecular Sieve

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2016 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] P. Strom-Tejsen, D.P. Wyon, L. Lagercrantz, L. Fang, Passenger evaluation of the optimum balance between fresh air supply and humidity from 7-h exposures in a simulated aircraft cabin, Indoor Air, 17(2007) 92-108.

DOI: 10.1111/j.1600-0668.2006.00458.x

Google Scholar

[2] C.J. Simonson, M. Salonvaara, T. Ojanen, The effect of structures on indoor humidity - possibility to improve comfort and perceived air quality, Indoor Air, 12(2002) 243-51.

DOI: 10.1034/j.1600-0668.2002.01128.x

Google Scholar

[3] S. Furmaniak, A.P. Terzyk, R. Golembiewski, P.A. Gauden, L. Czepirski, Searching the most optimal model of water sorption on foodstuffs in the whole range of relative humidity, Food Res Int, 42(2009) 1203-14.

DOI: 10.1016/j.foodres.2009.06.004

Google Scholar

[4] L.M. Reinikainen, J.J.K. Jaakkola, Significance of humidity and temperature on skin and upper airway symptoms, Indoor Air, 13(2003) 344-52.

DOI: 10.1111/j.1600-0668.2003.00155.x

Google Scholar

[5] Y.F. Qiu, S.H. Yang, ZnO nanotetrapods: Controlled vapor-phase synthesis and application for humidity sensing, Adv Funct Mater, 17(2007) 1345-52.

DOI: 10.1002/adfm.200601128

Google Scholar

[6] J.L. Zhang, G.X. Shen, W.J. Wang, X.J. Zhou, S.W. Guo, Individual nanocomposite sheets of chemically reduced graphene oxide and poly(N-vinyl pyrrolidone): preparation and humidity sensing characteristics, Journal Of Materials Chemistry, 20(2010).

DOI: 10.1039/c0jm02440f

Google Scholar

[7] B.C. Cheng, B.X. Tian, C.C. Xie, Y.H. Xiao, S.J. Lei, Highly sensitive humidity sensor based on amorphous Al2O3 nanotubes, Journal Of Materials Chemistry, 21(2011) 1907-12.

DOI: 10.1039/c0jm02753g

Google Scholar

[8] X.F. Wang, B. Ding, J.Y. Yu, M.R. Wang, Highly sensitive humidity sensors based on electro-spinning/netting a polyamide 6 nano-fiber/net modified by polyethyleneimine, Journal Of Materials Chemistry, 21(2011) 16231-8.

DOI: 10.1039/c1jm13037d

Google Scholar

[9] Y. Yao, X.D. Chen, X.Y. Li, X.P. Chen, N. Li, Investigation of the stability of QCM humidity sensor using graphene oxide as sensing films, Sensor Actuat B-Chem, 191(2014) 779-83.

DOI: 10.1016/j.snb.2013.10.076

Google Scholar

[10] Y. Yu, X.M. Zhang, J.P. Ma, Q.K. Liu, P. Wang, Y.B. Dong, Cu(I)-MOF: naked-eye colorimetric sensor for humidity and formaldehyde in single-crystal-to-single- crystal fashion, Chem Commun, 50(2014) 1444-6.

DOI: 10.1039/c3cc47723a

Google Scholar

[11] D.Y. Zhao, J.L. Feng, Q.S. Huo, N. Melosh, G.H. Fredrickson, B.F. Chmelka, G.D. Stucky, Triblock copolymer syntheses of mesoporous silica with periodic 50 to 300 angstrom pores, Science, 279(1998) 548-52.

DOI: 10.1126/science.279.5350.548

Google Scholar

[12] J.C. Tu, N. Li, W.C. Geng, R. Wang, X.Y. Lai, Y. Cao, T. Zhang, X.T. Li, S.L. Qiu, Study on a type of mesoporous silica humidity sensing material, Sensor Actuat B-Chem, 166(2012) 658-64.

DOI: 10.1016/j.snb.2012.03.033

Google Scholar

[13] W.C. Geng, R. Wang, X.T. Li, Y.C. Zou, T. Zhang, J.C. Tu, Y. He, N. Li, Humidity sensitive property of Li-doped mesoporous silica SBA-15, Sensor Actuat B-Chem, 127(2007) 323-9.

DOI: 10.1016/j.snb.2007.04.021

Google Scholar

[14] W.W. Zhang, R.W. Wang, Q. Zhang, J.X. Li, Humidity sensitive properties of K-doped mesoporous silica SBA-15, J Phys Chem Solids, 73(2012) 517-22.

DOI: 10.1016/j.jpcs.2011.10.030

Google Scholar

[15] T. Benamor, L. Vidal, B. Lebeau, C. Marichal, Influence of synthesis parameters on the physico-chemical characteristics of SBA-15 type ordered mesoporous silica, Microporous and Mesoporous Materials, 153(2012) 100-14.

DOI: 10.1016/j.micromeso.2011.12.016

Google Scholar

[16] J. Wang, L. Fang, F. Cheng, X. Duan, R. Chen, Hydrothermal Synthesis of SBA-15 Using Sodium Silicate Derived from Coal Gangue, Journal of Nanomaterials, 2013(2013) 1-6.

DOI: 10.1155/2013/352157

Google Scholar

[17] Y. Ding, G. Yin, X. Liao, Z. Huang, X. Chen, Y. Yao, Key role of sodium silicate modulus in synthesis of mesoporous silica SBA-15 rods with controllable lengths and diameters, Materials Letters, 75(2012) 45-7.

DOI: 10.1016/j.matlet.2012.01.091

Google Scholar

[18] K. Kosuge, T. Sato, N. Kikukawa, M. Takemori, Morphological control of rod- and fiberlike SBA-15 type mesoporous silica using water-soluble sodium silicate, Chem Mater, 16(2004) 899-905.

DOI: 10.1021/cm030622u

Google Scholar

[19] W. Wang, W. Shan, H. Ru, N. Wu, A facile and versatile partitioned cooperative self-assembly process to prepare SBA-15s with larger mesopores, high microporosity and tunable particle sizes, Journal of Materials Chemistry, 21(2011) 12059.

DOI: 10.1039/c1jm12001h

Google Scholar

[20] W. Wang, W.J. Shan, H.Q. Ru, Facile preparation and new formation mechanism of plugged SBA-15 silicas based on cheap sodium silicate, Journal Of Materials Chemistry, 21(2011) 17433-40.

DOI: 10.1039/c1jm13669k

Google Scholar

[21] Y. Zhu, J.C. Chen, H.M. Li, Y.H. Zhu, J.Q. Xu, Synthesis of mesoporous SnO2-SiO2 composites and their application as quartz crystal microbalance humidity sensor, Sensor Actuat B-Chem, 193(2014) 320-5.

DOI: 10.1016/j.snb.2013.11.091

Google Scholar

[22] Y.H. Zhu, H. Yuan, J.Q. Xu, P.C. Xu, Q.Y. Pan, Highly stable and sensitive humidity sensors based on quartz crystal microbalance coated with hexagonal lamelliform monodisperse mesoporous silica SBA-15 thin film, Sensor Actuat B-Chem, 144(2010).

DOI: 10.1016/j.snb.2009.10.053

Google Scholar

[23] B. Zheng, S. Cheng, W. Liu, M.H.W. Lam, H.J. Liang, Small organic molecules detection based on aptamer-modified gold nanoparticles-enhanced quartz crystal microbalance with dissipation biosensor, Anal Biochem, 438(2013) 144-9.

DOI: 10.1016/j.ab.2013.03.030

Google Scholar

[24] Q. Zheng, Y.H. Zhu, J.Q. Xu, Z.X. Cheng, H.M. Li, X.X. Li, Fluoroalcohol and fluorinated-phenol derivatives functionalized mesoporous SBA-15 hybrids: high-performance gas sensing toward nerve agent, Journal Of Materials Chemistry, 22(2012).

DOI: 10.1039/c1jm14779j

Google Scholar

[25] Y. Zhang, S.Z. Luo, Y.J. Tang, L. Yu, K.Y. Hou, J.P. Cheng, X.Q. Zeng, P.G. Wang, Carbohydrate-protein interactions by clicked, carbohydrate self-assembled monolayers, Anal Chem, 78(2006) 2001-8.

DOI: 10.1021/ac051919+

Google Scholar

[26] W.H. King, Piezoelectric Sorption Detector, Anal Chem, 36(1964) 1735-9.

Google Scholar

[27] J.J. Li, Y. Liang, B.J. Dou, C.Y. Ma, R.J. Lu, Z.P. Hao, Q. Xie, Z.Q. Luan, K. Li, Nanocasting synthesis of graphitized ordered mesoporous carbon using Fe-coated SBA-15 template, Materials Chemistry And Physics, 138(2013) 484-9.

DOI: 10.1016/j.matchemphys.2012.12.003

Google Scholar

[28] H.Y. Yoo, S. Bruckenstein, A novel quartz crystal microbalance gas sensor based on porous film coatings. A high sensitivity porous poly(methylmethacrylate) water vapor sensor, Anal Chim Acta, 785(2013) 98-103.

DOI: 10.1016/j.aca.2013.04.052

Google Scholar

[29] S. Korposh, R. Selyanchyn, S.W. Lee, Nano-assembled thin film gas sensors. IV. Mass-sensitive monitoring of humidity using quartz crystal microbalance (QCM) electrodes, Sensor Actuat B-Chem, 147(2010) 599-606.

DOI: 10.1016/j.snb.2010.04.006

Google Scholar

[30] Y.S. Zhang, K. Yu, R.L. Xu, D.S. Jiang, L.Q. Luo, Z.Q. Zhu, Quartz crystal microbalance coated with carbon nanotube films used as humidity sensor, Sensor Actuat a-Phys, 120(2005) 142-6.

DOI: 10.1016/j.sna.2004.11.032

Google Scholar

[31] X.F. Wang, B. Ding, J.Y. Yu, M.R. Wang, F.K. Pan, A highly sensitive humidity sensor based on a nanofibrous membrane coated quartz crystal microbalance, Nanotechnology, 21(2010).

DOI: 10.1088/0957-4484/21/5/055502

Google Scholar

[32] Y.G. Zhu, H. Li, J.Q. Xu, H. Yuan, J.J. Wang, X.X. Li, Monodispersed mesoporous SBA-15 with novel morphologies: controllable synthesis and morphology dependence of humidity sensing, Crystengcomm, 13(2011) 402-5.

DOI: 10.1039/c0ce00570c

Google Scholar

[33] D.Y. Zhao, Q.S. Huo, J.L. Feng, B.F. Chmelka, G.D. Stucky, Nonionic triblock and star diblock copolymer and oligomeric surfactant syntheses of highly ordered, hydrothermally stable, mesoporous silica structures, Journal of the American Chemical Society, 120(1998).

DOI: 10.1021/ja974025i

Google Scholar

[34] W. Wang, W. Shan, H. Ru, Facile preparation and new formation mechanism of plugged SBA-15 silicas based on cheap sodium silicate, Journal of Materials Chemistry, 21(2011) 17433.

DOI: 10.1039/c1jm13669k

Google Scholar
