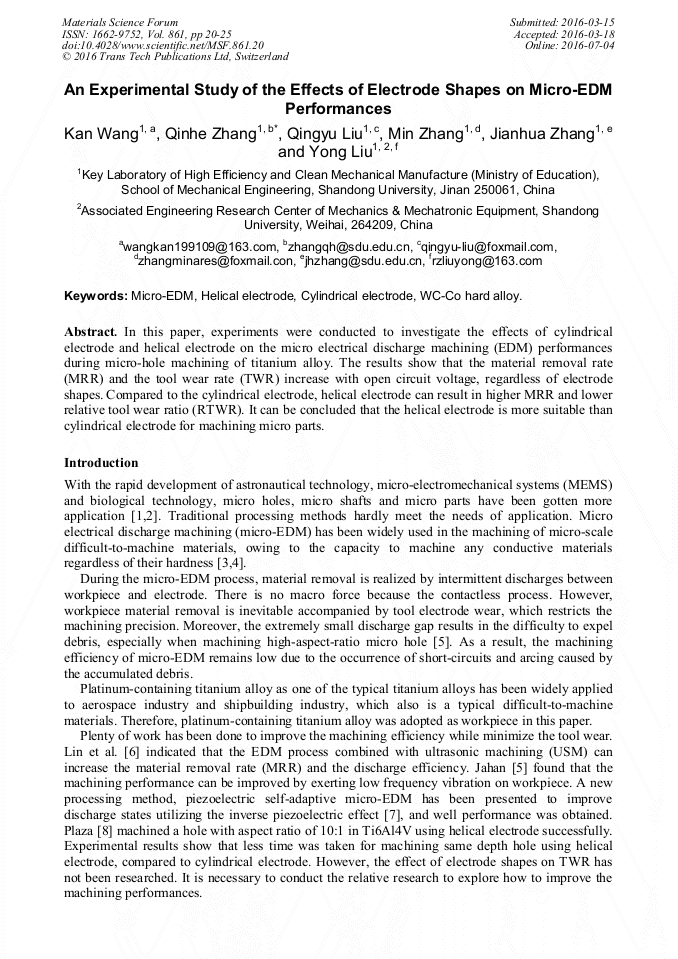

An Experimental Study of the Effects of Electrode Shapes on Micro-EDM Performances

Abstract:

In this paper, experiments were conducted to investigate the effects of cylindrical electrode and helical electrode on the micro electrical discharge machining (EDM) performances during micro-hole machining of titanium alloy. The results show that the material removal rate (MRR) and the tool wear rate (TWR) increase with open circuit voltage, regardless of electrode shapes. Compared to the cylindrical electrode, helical electrode can result in higher MRR and lower relative tool wear ratio (RTWR). It can be concluded that the helical electrode is more suitable than cylindrical electrode for machining micro parts.

• Periodical: Materials Science Forum (Volume 861)
• Pages: 20-25
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.861.20
• Online since: July 2016
• Authors: Kan Wang, Qin He Zhang*, Qing Yu Liu, Min Zhang, Jian Hua Zhang, Yong Liu
• Keywords: Cylindrical Electrode, Helical Electrode, Micro-EDM, WC-Co Hard Alloy

References

[1] H.S. Liu, B.H. Yan, F.Y. Huang, K.H. Qiu, A study on the characterization of high nickel alloy micro-holes using micro-EDM and their applications, J. Mater. Process. Technol. 169 (2005) 418-426.

DOI: 10.1016/j.jmatprotec.2005.04.084

[2] Q. Liu, Q. Zhang, G. Zhu, K. Wang, J. Zhang, C. Dong, Effect of electrode size on the performances of micro-EDM, Mater. Manuf. Process. (2015) 1-6.

[3] A.P. Tiwary, B.B. Pradhan, B. Bhattacharyya, Study on the influence of micro-EDM process parameters during machining of Ti–6Al–4V super alloy, Int. J. Adv. Manuf. Technol. 76 (2014) 151-160.

DOI: 10.1007/s00170-013-5557-x

[4] Z.Y. Yu, Y. Zhang, J. Li, J. Luan, F. Zhao, D. Guo, High aspect ratio micro-hole drilling aided with ultrasonic vibration and planetary movement of electrode by micro-EDM, CIRP Ann-Manuf. Technol. 58 (2009) 213-216.

DOI: 10.1016/j.cirp.2009.03.111

[5] M.P. Jahan, Y.S. Wong, M. Rahman, Evaluation of the effectiveness of low frequency workpiece vibration in deep-hole micro-EDM drilling of tungsten carbide, J. Manuf. Processes. 14 (2012) 343-359.

DOI: 10.1016/j.jmapro.2012.07.001

[6] Y.C. Lin, B.H. Yan, Y.S. Chang, Machining characteristics of titanium alloy (Ti–6Al–4V) using a combination process of EDM with USM, J. Mater. Process. Technol. 104 (2000) 171-177.

DOI: 10.1016/s0924-0136(00)00539-2

[7] X.Z. Fu, Q.H. Zhang, G.H. Bao, Y.J. Zhu, Experimental analysis on technology of piezoelectric self-adaptive micro-EDM, Adv. Mater. Res. (2011) 1434-1438.

DOI: 10.4028/www.scientific.net/amr.143-144.1434

[8] S. Plaza, J.A. Sanchez, E. Perez, R. Gil, B. Izquierdo, N. Ortega, et al, Experimental study on micro EDM-drilling of Ti6Al4V using helical electrode, Precis. Eng. 38 (2014) 821-827.

DOI: 10.1016/j.precisioneng.2014.04.010

[9] K.P. Somashekhar, N. Ramachandran, J. Mathew, Optimization of material removal rate in micro-EDM using artificial neural network and genetic algorithms, Mater. Manuf. Process. 25 (2010) 467-475.

DOI: 10.1080/10426910903365760
