Dispersion of Al2O3 Reinforcements in Al Composites via Friction Stir Processing

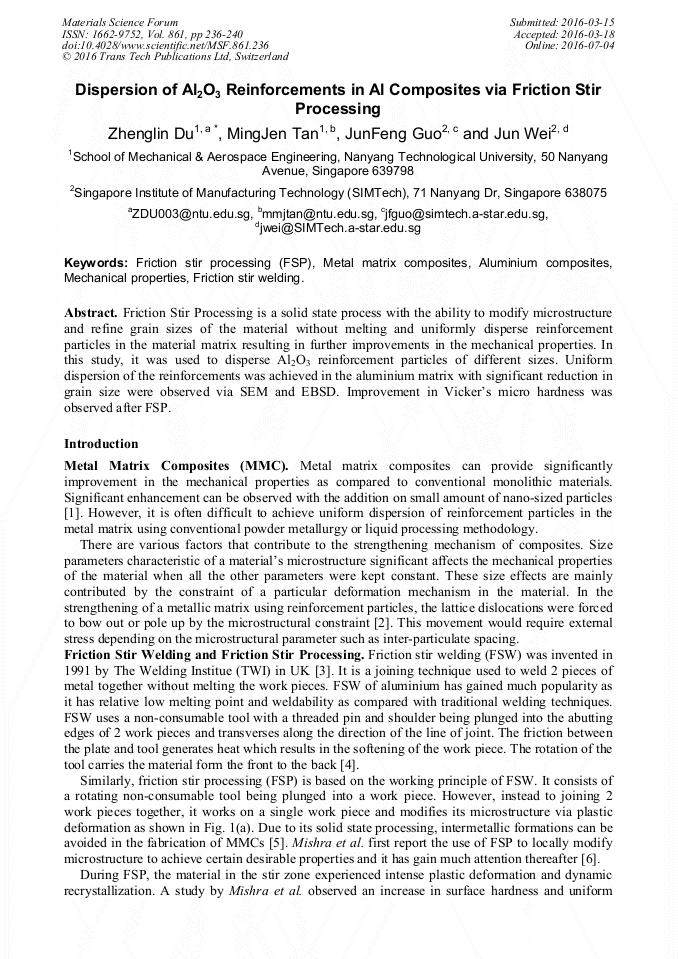

Article Preview

Abstract:

Friction Stir Processing is a solid state process with the ability to modify microstructure and refine grain sizes of the material without melting and uniformly disperse reinforcement particles in the material matrix resulting in further improvements in the mechanical properties. In this study, it was used to disperse Al2O3 reinforcement particles of different sizes. Uniform dispersion of the reinforcements was achieved in the aluminium matrix with significant reduction in grain size were observed via SEM and EBSD. Improvement in Vicker’s micro hardness was observed after FSP.

You might also be interested in these eBooks
Advances in Materials Processing XII View Preview

Info:

Periodical:

Materials Science Forum (Volume 861)

Pages:

236-240

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.861.236

Citation:

Cite this paper

Online since:

July 2016

Authors:

Zheng Lin Du*, Ming Jen Tan, Jun Feng Guo, Jun Wei

Keywords:

Aluminium Composites, Friction Stir Processing (FSP), Friction Stir Welding, Mechanical Property, Metal Matrix Composites

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2016 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

References

[1] N. Chawla, K.K. Chawla, Metal matrix composites, Springer, New York, (2006).

Google Scholar

[2] M. Kouzeli, A. Mortensen, Size dependent strengthening in particle reinforced aluminium, Acta. Mater. 50 (2002) 39-51.

DOI: 10.1016/s1359-6454(01)00327-5

Google Scholar

[3] W.M. Thomas, et al, G.B.P.A.N. 9125978. 8, Editor. December (1991).

Google Scholar

[4] A.P. Reynolds, Visualisation of material flow in autogenous friction stir welds, Sci. Technol. Weld. Join. 5 (2000) 120-124.

Google Scholar

[5] J. Guo, P. Gougeon, X.G. Chen, Microstructure evolution and mechanical properties of dissimilar friction stir welded joints between AA1100-B4C MMC and AA6063 alloy, Mater. Sci. Eng. A. 553 (2012) 149-156.

DOI: 10.1016/j.msea.2012.06.004

Google Scholar

[6] R.S. Mishra, Z.Y. Ma, I. Charit, Friction stir processing: a novel technique for fabrication of surface composite, Mater. Sci. Eng. 341 (2003) 307-310.

DOI: 10.1016/s0921-5093(02)00199-5

Google Scholar

[7] M. Azizieh, A.H. Kokabi, P. Abachi, Effect of rotational speed and probe profile on microstructure and hardness of AZ31/Al2O3 nanocomposites fabricated by friction stir processing, Mater. Des. 32 (2011) 2034-(2041).

DOI: 10.1016/j.matdes.2010.11.055

Google Scholar

[8] J.F. Guo, et al, Effects of nano-Al2O3 particle addition on grain structure evolution and mechanical behaviour of friction-stir-processed, Al. Mater. Sci. Eng. 602 (2014) 143-149.

DOI: 10.1016/j.msea.2014.02.022

Google Scholar

[9] Y.S. Sato, M. Urata, H. Kokawa, Parameters controlling microstructure and hardness during friction-stir welding of precipitation-hard enable aluminium alloy 6063, Metall. Mat. Trans. A. Phys. Metall. Mat. Sci. 33 (2002) 625-635.

DOI: 10.1007/s11661-002-0124-3

Google Scholar

[10] W.S. Miller, F.J. Humphreys, Strengthening mechanisms in particulate metal matrix composites, Scr. Metall. Mater. 25 (1991) 33-38.

Google Scholar

[11] J. Qu, et al, Improving the tribological characteristics of aluminum 6061 alloy by surface compositing with sub-micro-size ceramic particles via friction stir processing, Wear. 271 (2011) 1940-(1945).

DOI: 10.1016/j.wear.2010.11.046

Google Scholar

[12] B. Zahmatkesh, M.H. Enayati, A novel approach for development of surface nanocomposite by friction stir processing, Mater. Sci. Eng. 527 (2010) 6734-6740.

DOI: 10.1016/j.msea.2010.07.024

Google Scholar

[13] Z. Du, et al, Friction stir processing (FSP) of Al-CNT composites, Proc. Inst. Mech. Eng. Part L. J. Mat. Des. Appl. (2015).

Google Scholar

[14] J. Q. Su, T.W. Nelson, C.J. Sterling, Microstructure evolution during FSW/FSP of high strength aluminum alloys, Mater. Sci. Eng. 405 (2005) 277-286.

DOI: 10.1016/j.msea.2005.06.009

Google Scholar

[15] J.M. Root, D.P. Field, T.W. Nelson, Crystallographic texture in the friction-stir-welded metal matrix composite Al6061 with 10 Vol Pct Al2O3, Metall. Mat. Trans. A. Phys. Metall. Mat. Sci. 40 (2009) 2109-2114.

DOI: 10.1007/s11661-009-9883-4

Google Scholar

[16] A. Rollett, et al, Recrystallization and Related Annealing Phenomena. 2004: Elsevier.

Google Scholar

[17] ASM handbook/prepared under the direction of the ASM International Handbook Committee, 1986: Mat. Park, OH: ASM Int.

Google Scholar
