Extraction of Rare Earth Elements from Permanent Magnet Scraps by VIM-HMS Method

Abstract:

VIM-HMS method is a novel process to extract REEs (rare earth elements) from NdFeB based permanent magnets. The NdFeB materials were melted in graphite crucible by VIM (vacuum induction melting) process, and the carbon saturated NdFeBC_sat alloy was obtained. The NdFeBC_sat alloy was mechanically pulverized and hydrolyzed in deionized water. In the HMS (Hydrolysis and magnetic separation) process, the neodymium carbide phase in the alloy reacted with water easily, and the rare earth hydroxides and the iron residues were separated by magnetic separation. The purity of the rare earth hydroxides was more than 99%, and the extraction ratio of the REEs is about 93%.

You might also be interested in these eBooks

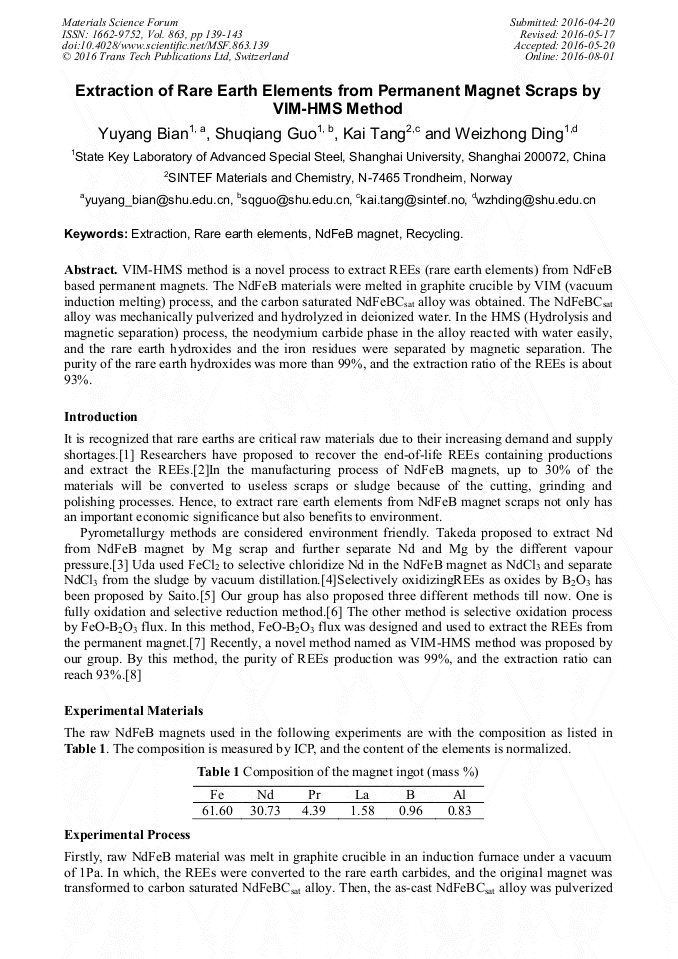

View Preview

Info:

Periodical:

Materials Science Forum (Volume 863)

Pages:

139-143

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.863.139

Citation:

Cite this paper

Online since:

August 2016

Authors:

Yu Yang Bian*, Shu Qiang Guo, Kai Tang, Wei Zhong Ding

Keywords:

Extraction, NdFeB Magnet, Rare Earth Elements, Recycling

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] D. Schüler,M. Buchert, R. Liu, S. Dittrich, C. Merz, Study on Rare Earths and Their Recycling, Öko-Institut eV Darmstadt. (2011).

Google Scholar

[2] S. Massari, M. Ruberti, Rare earth elements as critical raw materials: Focus on international markets and future strategies. Resources Policy 2013, 38, 36-43.

DOI: 10.1016/j.resourpol.2012.07.001

Google Scholar

[3] O. Takeda, T. H. Okabe, Y. Umetsu, Recovery of neodymium from a mixture of magnet scrap and other scrap. J. Alloy Compd. 2006, 408-412, 387-390.

DOI: 10.1016/j.jallcom.2005.04.094

Google Scholar

[4] T. Uda, Recovery of rare earths from magnet sludge by FeCl2. Mater. Trans. 2002, 43, 55-62.

DOI: 10.2320/matertrans.43.55

Google Scholar

[5] T. Saito, H. Sato, S. Ozawa, J. Yu, T. Motegi, The extraction of Nd from waste Nd-Fe-B alloys by the glass slag method. J. Alloy Compd. 2003, 353, 189-193.

DOI: 10.1016/s0925-8388(02)01202-1

Google Scholar

[6] Y. Bian, S. Guo, Y. Xu, K. Tang, X. Lu, W. Ding, Recovery of rare earth elements from permanent magnet scraps by pyrometallurgical process. Rare Met. (2015).

DOI: 10.1007/s12598-015-0554-x

Google Scholar

[7] Y. Bian, S. Guo, L. Jiang, K. Tang,W. Ding, Extraction of rare earth elements from permanent magnet scraps by FeO-B2O3 flux treatment. J. Sustain. Metall. 2015, 1, 151-160.

DOI: 10.1007/s40831-015-0009-5

Google Scholar

[8] Y. Bian, S. Guo, L. Jiang, J. Liu, K. Tang and W. Ding, Recovery of Rare Earth Elements from NdFeB Magnet by VIM-HMS Method, ACS Sustainable Chemistry & Engineering, (2016).

DOI: 10.1021/acssuschemeng.5b00852

Google Scholar

[9] Y. Li, H. E. Evans, I. R. Harris, I. P. Jones, The oxidation of NdFeB magnets. Oxid. Met. 2003, 59, 167-182.

Google Scholar

[10] Y. Bian, K. Tang and G. Tranell, A thermodynamic assessment of the Nd–C system, Calphad, 2015, 51.

DOI: 10.1016/j.calphad.2015.10.001

Google Scholar
