Effect of Hydrolytic Degradation on Mechanical Properties of PCL

Abstract:

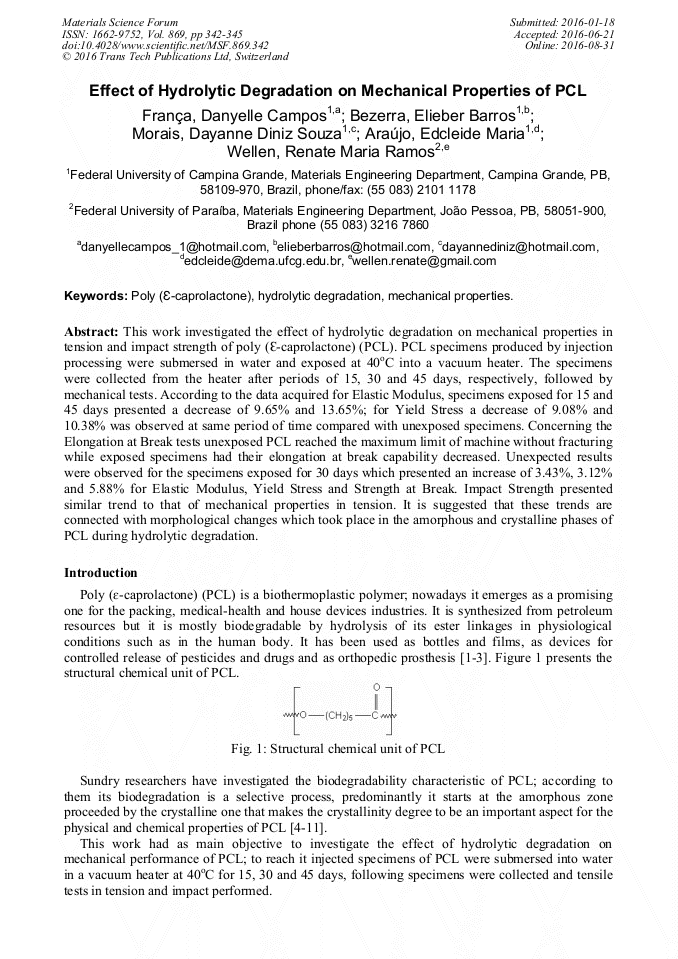

This work investigated the effect of hydrolytic degradation on mechanical properties in tension and impact strength of poly (Ɛ-caprolactone) (PCL). PCL specimens produced by injection processing were submersed in water and exposed at 40°C into a vacuum heater. The specimens were collected from the heater after periods of 15, 30 and 45 days, respectively, followed by mechanical tests. According to the data acquired for Elastic Modulus, specimens exposed for 15 and 45 days presented a decrease of 9.65% and 13.65%; for Yield Stress a decrease of 9.08% and 10.38% was observed at same period of time compared with unexposed specimens. Concerning the Elongation at Break tests unexposed PCL reached the maximum limit of machine without fracturing while exposed specimens had their elongation at break capability decreased. Unexpected results were observed for the specimens exposed for 30 days which presented an increase of 3.43%, 3.12% and 5.88% for Elastic Modulus, Yield Stress and Strength at Break. Impact Strength presented similar trend to that of mechanical properties in tension. It is suggested that these trends are connected with morphological changes which took place in the amorphous and crystalline phases of PCL during hydrolytic degradation.

• Periodical: Materials Science Forum (Volume 869)
• Pages: 342-345
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.869.342
• Online since: August 2016
• Authors: Danyelle Campos França, Elieber Barros Bezerra, Dayanne Diniz Souza Morais, Edcleide Maria Araújo, Renate Maria Ramos Wellen
• Keywords: Hydrolytic Degradation, Mechanical Properties, Poly(Ɛ-Caprolactone)

References

[1] P. Joshi, G. Madras: Polymer Degradation and Stability Vol. 93 (2008), p. (1901).

[2] M.A. de Paoli, Degradation and Stabilization Polymers - 2nd online version (reviewed). Ed. Chemkeys. São Paulo, in (2008).

[3] E. Rudnick: Compostable Polymer Materials. (Elsevier 1ª ed. Oxford, 2008).

[4] Y. Tokiwa, B.P. Calabia, C.U. Ugwu, S. Aiba: International Journal of Molecular Sciences Vol. 10 (2009), p.3722.

DOI: 10.3390/ijms10093722

[5] Y. Hu, L. Zhang, Y. Cao, H. Ge, X. Jiang, C. Yang. Degradation behavior of poly (caprolactone)-poly (ethylene glycol) block copolymer/low-density polyethylene blends. Laboratory of Mesoscopic Chemistry and Department of Polymer Science & Engineering. China, (2004).

DOI: 10.1002/pen.10200

[6] K. Chrissafis, G. Antoniadis, K.M. Paraskevopoulos, A. Vassiliou, D.N. Bikiaris: Composites Science and Technology Vol. 67 (2007), p.2165.

[7] C.X.F. Lam, S.H. Teoh, D.W. Hutmacher: Polymer International Vol. 56 (2007), p.718.

[8] C.A. Kelly, S.H. Murphy, G.A. Leeke, S.M. Howdle, K.M. Shakesheff, M. J Jenkins: European Polymer Journal Vol. 49 (2013), p.464.

DOI: 10.1016/j.eurpolymj.2012.11.021

[9] S. Sinha Ray, M. Okamoto: Progress in Polymer Science Vol. 28 (2005), 1539.

[10] A. Höglund: Controllable degradation product migration from biomedical polyester-ethers. KTH Chemical Science and Engineering, (2007).

[11] L.M. Orozco-Castellanos, A.M. Fernández, A.M. Richa, Hydrolytic degradation of poly(ε-caprolactone) with different end groups and poly(ε-caprolactone-co-γ-butyrolactone). Characterization and kinetics of hydrocortisone delivery. Facultad de Química, (2009).

DOI: 10.1002/pat.1531

[12] Information on http: /www. PERSTORP. com.

[13] American Society for Testing and Materials. ASTM D 638-99. Standard Test Method for Tensile Properties of Plastics.

[14] American Society for Testing and Materials. ASTM D 256-97. Standard Test Methods for Determining the Izod Pendulum Impact Resistance of Plastics.

[15] C.L. Simões, J.C. Viana, A.M. Cunha: Journal of Applied Polymer Science Vol. 112 (2009), p.345.

[16] R. Auras, E. Almenar: Permeation, sorption, and diffusion. In: R. Auras, L.T. Lim, S.E.M. Selke, H. Tsuji (Ed. ). Poly (lactic acid): Synthesis, Structures, Properties, Processing and Applications. New Jersey: John Wiley & Sons, Inc., 2010, pp.345-405.

DOI: 10.1002/9780470649848.ch12

[17] B.S. Ndazi, S. Karlsson: Express Polymer Letters Vol. 5 (2011), p.119.

[18] I. Castilla-Cortázar, J. Más-Estellés, J.M. Meseguer-Dueñas, J.L. Escobar Ivirico, B. Marí, A. Vidaurre: Polymer Degradation and Stability Vol. 97 (2012), 1241.

DOI: 10.1016/j.polymdegradstab.2012.05.038
