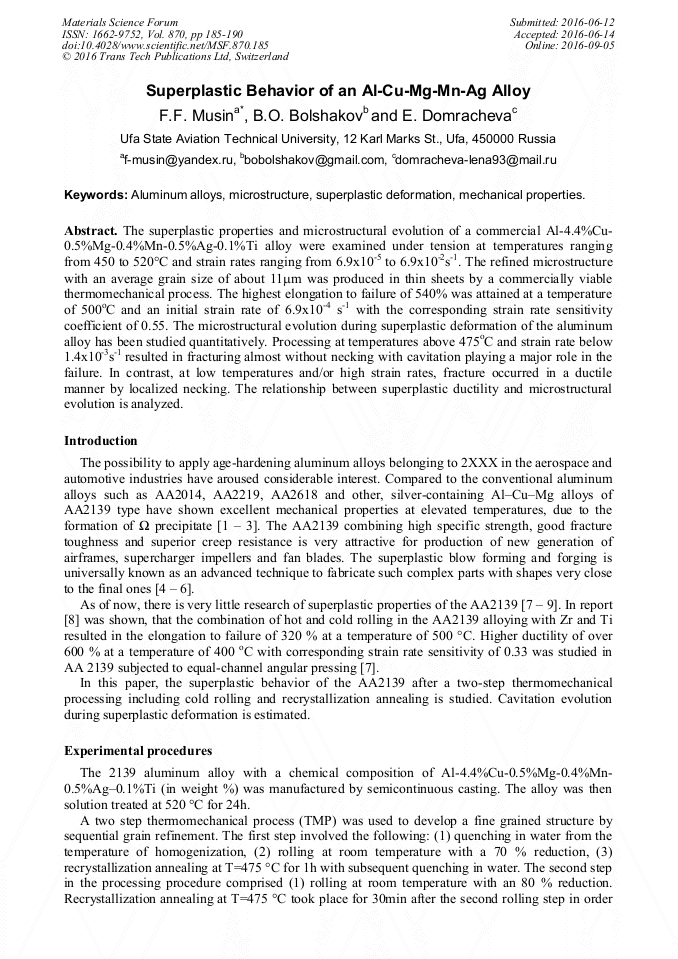

Superplastic Behavior of an Al-Cu-Mg-Mn-Ag Alloy

Abstract:

The superplastic properties and microstructural evolution of a commercial Al-4.4%Cu-0.5%Mg-0.4%Mn-0.5%Ag-0.1%Ti alloy were examined under tension at temperatures ranging from 450 to 520°C and strain rates ranging from 6.9x10^-5 to 6.9x10^-2s^-1. The refined microstructure with an average grain size of about 11m was produced in thin sheets by a commercially viable thermomechanical process. The highest elongation to failure of 540% was attained at a temperature of 500°C and an initial strain rate of 6.9x10^-4 s^-1 with the corresponding strain rate sensitivity coefficient of 0.55. The microstructural evolution during superplastic deformation of the aluminum alloy has been studied quantitatively. Processing at temperatures above 475°C and strain rate below 1.4x10^-3s^-1 resulted in fracturing almost without necking with cavitation playing a major role in the failure. In contrast, at low temperatures and/or high strain rates, fracture occurred in a ductile manner by localized necking. The relationship between superplastic ductility and microstructural evolution is analyzed.

• Periodical: Materials Science Forum (Volume 870)
• Pages: 185-190
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.870.185
• Online since: September 2016
• Authors: F.F. Musin*, B.O. Bolshakov, E. Domracheva
• Keywords: Aluminum Alloys, Mechanical Properties, Microstructure, Superplastic Deformation

References

[1] I.J. Polmear, Effects of small additions of silver on aging of some aluminum alloys, Transactions of the Metallurgical Society of AIME. 230 (1964) 1331-1339.

[2] I.J. Polmear, M.J. Couper, Design and development of an experimental wrought aluminum alloy for use at elevated temperatures, Metallurgical Transactions A. 19 (1988) 1027-1035.

DOI: 10.1007/bf02628387

[3] I.J. Polmear, G. Pons, Y. Barbaux, H. Octor, C. Sanchez, A.J. Morton, W.E. Borbidge, S. Rogers, After concord: evaluation of creep resistant Al-Cu-Mg-Ag alloys, Mater. Sci. Tech. 15 (1999) 861-868.

DOI: 10.1179/026708399101506599

[4] A.J. Barnes, Industrial applications of superplastic forming: trens and prospect, Materials Science Forum. 357-359 (2001) 3-16.

DOI: 10.4028/www.scientific.net/msf.357-359.3

[5] A.J. Barnes, Superplastic forming 40 years and still growing, Journal Mater. Eng. Perf. 16 (2007) 440-454.

DOI: 10.1007/s11665-007-9076-5

[6] O.A. Kaibyshev, Superplasticity of Alloy, Intermetallics and Ceramics, Springer-Verlag, Berlin, (1992).

[7] M. Gazizov, R. Kaibyshev, Superplastic behavior of an AA2139 subjected to ECAP, Materials Science Forum. 838-839 (2016) 373-378.

DOI: 10.4028/www.scientific.net/msf.838-839.373

[8] D.H. Xiao, M. Song, Superplastic deformation of an as-rolled Al-Cu-Mg-Ag alloy, Mater. Des. 30 (2009) 424-426.

DOI: 10.1016/j.matdes.2008.05.001

[9] D.H. Xiao, J.N. Wang, K.H. Chen, B.Y. Huang, Superplastic deformation of a heat resistant Al-Cu-Mg-Ag-Mn alloy, J. Mater. Proc. Tech. 209 (2009) 3300-3305.

DOI: 10.1016/j.jmatprotec.2008.07.053

[10] J. Pilling, N. Ridley, Superplasticity in crystalline solid, The institute of metals, London, (1989).
