Interaction of Hydrogen Atoms with Vacancies and Divacancies in bcc Iron

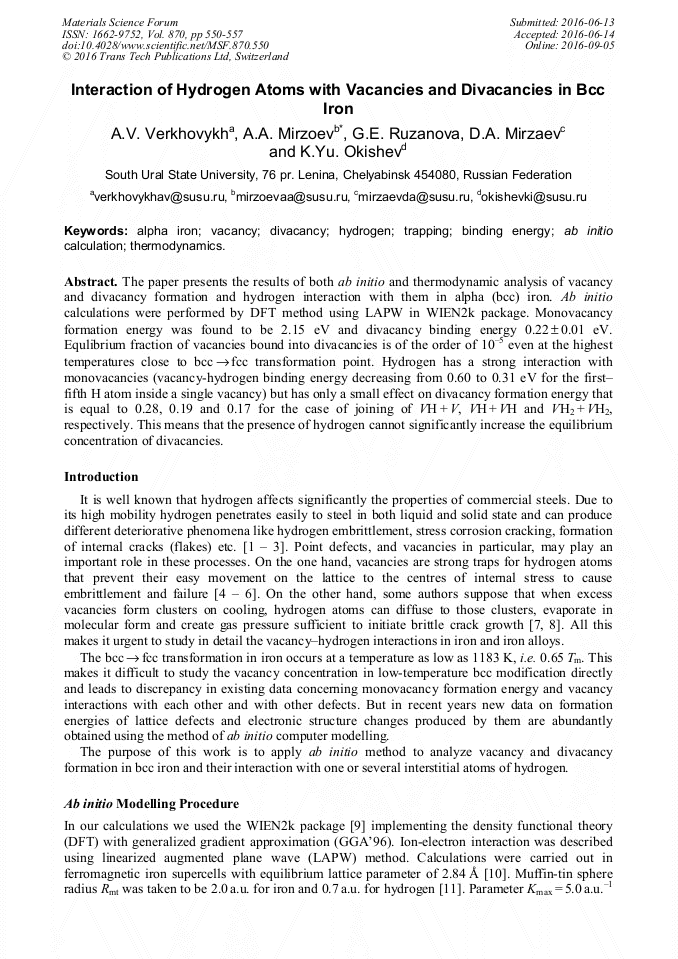

Article Preview

Abstract:

The paper presents the results of both ab initio and thermodynamic analysis of vacancy and divacancy formation and hydrogen interaction with them in alpha (bcc) iron. Ab initio calculations were performed by DFT method using LAPW in WIEN2k package. Monovacancy formation energy was found to be 2.15 eV and divacancy binding energy 0.22 ± 0.01 eV. Equlibrium fraction of vacancies bound into divacancies is of the order of 10^–5 even at the highest temperatures close to bcc → fcc transformation point. Hydrogen has a strong interaction with monovacancies (vacancy-hydrogen binding energy decreasing from 0.60 to 0.31 eV for the first–fifth H atom inside a single vacancy) but has only a small effect on divacancy formation energy that is equal to 0.28, 0.19 and 0.17 for the case of joining of VH + V, VH + VH and VH₂ + VH₂, respectively. This means that the presence of hydrogen cannot significantly increase the equilibrium concentration of divacancies.

You might also be interested in these eBooks

Materials Engineering and Technologies for Production and Processing II

Info:

Periodical:

Materials Science Forum (Volume 870)

Pages:

550-557

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.870.550

Citation:

Cite this paper

Online since:

September 2016

Authors:

A.V. Verkhovykh, A.A. Mirzoev*, G.E. Ruzanova, D.A. Mirzaev, K.Yu. Okishev

Keywords:

Ab Initio Calculation, Alpha Iron, Binding Energy, Divacancy, Hydrogen, Thermodynamic, Trapping, Vacancy

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2016 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

* - Corresponding Author

[1] J.P. Hirth, Effects of hydrogen on the properties of iron and steel, Metallurgical Transactions A. 11 (1980) 861-890. DOI: 10. 1007/BF02654700.

[2] H. Wipf, Hydrogen in Metals III: Properties and Applications, Springer-Verlag, Berlin, (1997).

[3] G.N. Kasatkin, Hydrogen in Structural Steels, Intermet Engineering Publ., Moscow, 2003. (in Russ. ).

[4] F. Besenbacher, S.M. Myers, P. Nordlander, J.K. Nørskov, Multiple hydrogen occupancy of vacancies in Fe, J. Appl. Phys. 61 (1987) 1788-1794. DOI: 10. 1063/1. 338020.

DOI: 10.1063/1.338020

[5] G.M. Pressouyre, I.M. Bernstein, A quantitative analysis of hydrogen trapping, Metallurgical Transactions A. 9 (1978) 1571-1580. DOI: 10. 1007/BF02661939.

DOI: 10.1007/bf02661939

[6] V.G. Gavriljuk, V.N. Bugaev, Yu.N. Petrov, A.V. Tarasenko, B.Z. Yanchitski, Scripta Materialia. 34 (1996).

DOI: 10.1016/1359-6462(95)00580-3

[7] R.A. Ryabov, P.V. Gel'd, To the question of flake formation mechanism, Metally. 6 (1975) 114-116. (in Russ. ).

[8] X.C. Ren, Q.J. Zhou, G.B. Shan, W.Y. Chu, J.X. Li, Y.J. Su, L.J. Qiao, A nucleation mechanism of hydrogen blister in metals and alloys, Metallurgical and Materials Transactions A. 39 (2008) 87-97. DOI: 10. 1007/s11661-007-9391-3.

DOI: 10.1007/s11661-007-9391-3

[9] K. Schwarz, P. Blaha, Solid state calculations using WIEN2k, Comput. Mater. Sci. 28 (2003) 259. DOI: 10. 1016/S0927-0256(03)00112-5.

DOI: 10.1016/s0927-0256(03)00112-5

[10] A.V. Ursaeva, G.E. Ruzanova, A.A. Mirzoev, Selection of optimal parameters for formation the most accurate model of bcc iron, Bull. of the South Ural State Univ. Ser. Mathematics, Mechanics, Physics. 9 (2010) 97-101. (in Russ. ).

[11] D.E. Jiang, E.A. Carter, Diffusion of interstitial hydrogen into and through bcc Fe from first principles, Phys. Rev. B70 (2004). DOI: 10. 1103/PhysRevB. 70. 064102.

DOI: 10.1103/physrevb.70.064102

[12] D.A. Mirzaev, A.A. Mirzoev, K. Yu. Okishev, A.D. Shaburov, G.E. Ruzanova, A.V. Ursaeva, On equilibrium vacancy concentration in iron-hydrogen alloys, Bull. of the South Ural State Univ. Ser. Mathematics, Mechanics, Physics. 11 (2012).

DOI: 10.1134/s0031918x12100079

[13] Y. Tateyama, T. Ohno, Stability and clusterization of hydrogen-vacancy complexes in a-Fe: An ab initio study, Phys. Rev. B67 (2003). DOI: 10. 1103/PhysRevB. 67. 174105.

[14] W.A. Counts, C. Wolverton, R. Gibala, First-principles energetics of hydrogen traps in a-Fe: Point defects, Acta Materialia. 58 (2010) 4730-4741. DOI: 10. 1016/j. actamat. 2010. 05. 010.

DOI: 10.1016/j.actamat.2010.05.010

[15] L. De Schepper, D. Segers, L. Dorikens-Vanpraet, M. Dorikens, G. Knuyt, L.M. Stals, P. Moser, Positron annihilation on pure and carbon-doped a-iron in thermal equilibrium, Phys. Rev. B27 (1983) 5257-5269. DOI: 10. 1103/PhysRevB. 27. 5257.

DOI: 10.1103/physrevb.27.5257

[16] H. Ullmaier, Atomic Defects in Metals, Landolt–Börnstein, New Series, vol. III/25, Springer-Verlag, (1991).

[17] M.A. Shtremel', Strength of Alloys, Part I, Lattice Defects, MISiS Publ., Moscow, 1999. (in Russ. ).

[18] A. Seeger, Lattice vacancies in high-purity a-iron, Physica Status Solidi. A167 (1998) 289-311. DOI: 10. 1002/(SICI)1521-396X(199806)167: 2<289: AID-PSSA289>3. 0. CO; 2-V.

DOI: 10.1002/(sici)1521-396x(199806)167:2<289::aid-pssa289>3.0.co;2-v

[19] O. Seydel, G. Frohberg, H. Wever, Quenching-in of vacancies in pure a-iron, Physica Status Solidi. A144 (1994) 69-79. DOI: 10. 1002/pssa. 2211440108.

DOI: 10.1002/pssa.2211440108

[20] T. Ohnuma, N. Soneda, M. Iwasawa, First-principles calculations of vacancy–solute element interactions in body-centered cubic iron, Acta Mater. 57 (2009) 5947-5955. DOI: 10. 1016/j. actamat. 2009. 08. 020.

DOI: 10.1016/j.actamat.2009.08.020

[21] J.R. Beeler, R.A. Johnson, Vacancy clusters in a-iron, Phys. Rev. 156 (1967) 677-684. DOI: 10. 1103/PhysRev. 156. 677.

DOI: 10.1103/physrev.156.677

[22] M. Kabir, T.T. Lau, X. Lin, S. Yip, K.J.V. Vliet, Effects of vacancy-solute clusters on diffusivity in metastable Fe–C alloys, Phys. Rev. B82 (2010) 134112. DOI: 10. 1103/PhysRevB. 82. 134112.

DOI: 10.1103/physrevb.82.134112

[23] F. Djurabekova, L. Malerba, R.C. Pasianot, P. Olsson, K. Nordlund, Kinetics versus thermodynamics in materials modeling: The case of the di-vacancy in iron, Philosophical Magazine. 90 (2010) 2585-2595. DOI: 10. 1080/14786431003662515.

DOI: 10.1080/14786431003662515

[24] C.S. Becquart, C. Domain, Ab initio contribution to the study of complexes formed during dilute FeCu alloys radiation, Nuclear Instruments and Methods in Physics Research Section B: Beam Interactions with Materials and Atoms. 202 (2003).

DOI: 10.1016/s0168-583x(02)01828-1

[25] K. Masuda, Vacancies and small vacancy clusters in BCC transition metals: Calculation of binding energy, atomic relaxation and electronic and vibrational densities of states, Journal de Physique. 43 (1982).

DOI: 10.1051/jphys:01982004306092100

[26] P.M. Derlet, D. Nguyen-Manh, S.L. Dudarev, Multiscale modeling of crowdion and vacancy defects in body-centered-cubic transition metals, Phys. Rev. B76 (2007) 054107. DOI: 10. 1103/PhysRevB. 76. 054107.

DOI: 10.1103/physrevb.76.054107

[27] V.I. Zubov, On the stasistical theory of point defects in pure crystals with strong anharmonicity, Physica Status Solidi. B106 (1981) K145-K148. DOI: 10. 1002/pssb. 2221060253.

DOI: 10.1002/pssb.2221060253

[28] A.C. Damask, G.J. Dienes, Point Defects in Metals, Gordon and Breach Science Publ., N. -Y. –London, (1963).

[29] A.G. Lesnik, Models of Interatomic Interaction in Statistical Theory of Alloys, Fizmatgiz Publ., Moscow, 1962. (in Russ. ).

[30] H. -E. Schaefer, K. Maier, M. Weller, D. Herlach, A. Seeger, J. Diehl, Vacancy formation in iron investigated by positron annihilation in thermal equilibrium, Scripta Metallurgica. 11 (1977) 803-809. DOI: 10. 1016/0036-9748(77)90079-5.

DOI: 10.1016/0036-9748(77)90079-5

[31] S.M. Kim, W.J.L. Buyers, Vacancy formation energy in iron by positron annihilation, J. Phys. F: Metal Physics. 8 (1978) L103-L108. DOI: 10. 1088/0305-4608/8/5/001.

DOI: 10.1088/0305-4608/8/5/001

[32] A.V. Verkhovykh, A.A. Mirzoev, DFT modelling of interaction of hydrogen with bcc iron vacancies, Bull. of the South Ural State Univ. Ser. Mathematics, Mechanics, Physics. 7 (2015) 48-56. (in Russ. ).

[33] A.A. Mirzoev, D.A. Mirzaev, A.V. Verkhovykh, Hydrogen-vacancy interactions in ferrmagnetic and paramagnetic bcc iron: Ab initio calculations, Physica Status Solidi. B252 (2015) 1966-1970. DOI: 10. 1002/pssb. 201451757.

DOI: 10.1002/pssb.201451757

[34] A.V. Ursaeva, A.A. Mirzoev, G.E. Ruzanova, Ab initio modelling of hydrogen-vacancy (VHn) complexes in bcc iron, Bull. of the South Ural State Univ. Ser. Metallurgy. 36 (2011) 51–55. (in Russ. ).

[35] D.A. Mirzaev, A.A. Mirzoev, K. Yu. Okishev, A.D. Shaburov, G.E. Ruzanova, A.V. Ursaeva, Formation of hydrogen-vacancy complexes in alpha iron, The Physics of Metals and Metallography. 113 (2012) 923-926. DOI: 10. 1134/S0031918X12100079.

DOI: 10.1134/s0031918x12100079

[36] D.A. Mirzaev, A.A. Mirzoev, K. Yu. Okishev, A.V. Verkhovykh, Hydrogen-vacancy interaction in bcc iron: Ab initio calculations and thermodynamics, Molecular Physics. 112 (2014) 1745-1754. DOI: 10. 1080/00268976. 2013. 861087.

DOI: 10.1080/00268976.2013.861087

[37] K. Ohsawa, K. Eguchi, H. Watanabe, M. Yamaguchi, M. Yagi, Configuration and binding energy of multiple hydrogen atoms trapped in monovacancy in bcc transition metals, Phys. Rev. B85 (2012) 094102. DOI: 10. 1103/PhysRevB. 85. 094102.

DOI: 10.1103/physrevb.85.094102

[38] M. Iwamoto, Y. Fukai, Superabundant vacancy formation in iron under high hydrogen pressures: Thermal desorption spectroscopy, Mater. Trans. JIM. 40 (1999) 606-611. DOI: 10. 2320/matertrans1989. 40. 606.

DOI: 10.2320/matertrans1989.40.606
