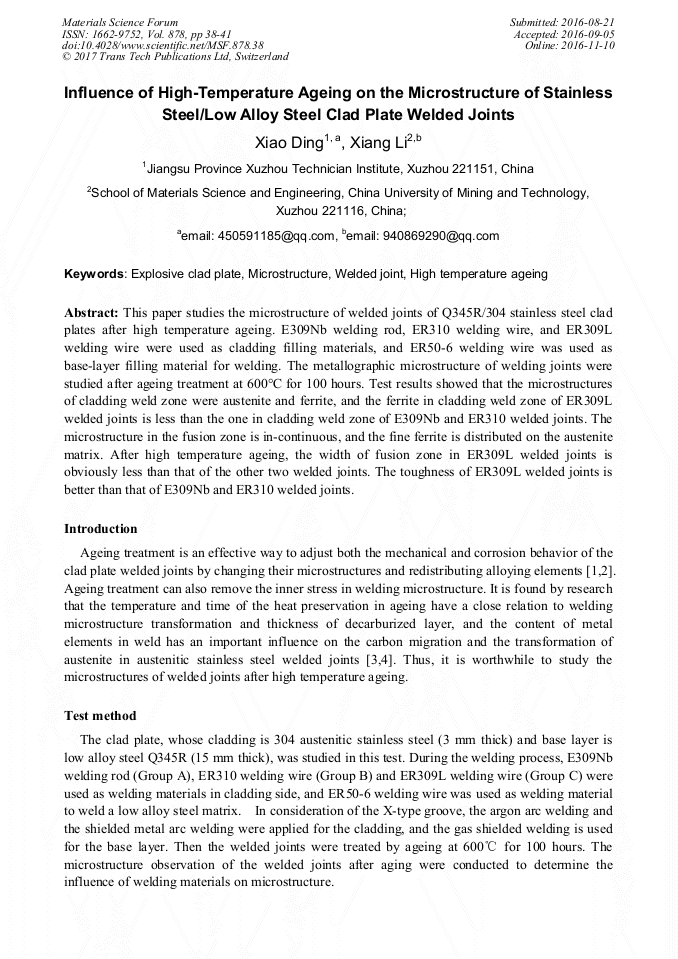

Influence of High-Temperature Ageing on the Microstructure of Stainless Steel/Low Alloy Steel Clad Plate Welded Joints

Abstract:

This paper studies the microstructure of welded joints of Q345R/304 stainless steel clad plates after high temperature ageing. E309Nb welding rod, ER310 welding wire, and ER309L welding wire were used as cladding filling materials, and ER50-6 welding wire was used as base-layer filling material for welding. The metallographic microstructure of welding joints were studied after ageing treatment at 600°C for 100 hours. Test results showed that the microstructures of cladding weld zone were austenite and ferrite, and the ferrite in cladding weld zone of ER309L welded joints is less than the one in cladding weld zone of E309Nb and ER310 welded joints. The microstructure in the fusion zone is in-continuous, and the fine ferrite is distributed on the austenite matrix. After high temperature ageing, the width of fusion zone in ER309L welded joints is obviously less than that of the other two welded joints. The toughness of ER309L welded joints is better than that of E309Nb and ER310 welded joints.

• Periodical: Materials Science Forum (Volume 878)
• Pages: 38-41
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.878.38
• Online since: November 2016
• Authors: Xiao Ding*, Xiang Li
• Keywords: Explosive Clad Plate, High Temperature Ageing, Microstructure, Welded Joint

References

[1] F. Yan, W. Yang, S. Ji, F. Fan, Effect of solutionising and ageing on the microstructure and mechanical properties of a high strength die-cast Al–Mg–Zn–Si alloy. Mater. Chem. Phys. 167 (2015) 88-96.

DOI: 10.1016/j.matchemphys.2015.10.014

[2] Z.A. Sattar, Z. Wang, K.A. Shore, Wave-guiding analysis of annular core geometry metal-clad semiconductor nano-lasers. IEEE Journal of Quantum Electronics, IEEE. J. QUANTUM. ELECT. 50 (2014) 15-22.

DOI: 10.1109/jqe.2013.2291662

[3] K. Hokamoto, A. Mori, M. Fujita, Possibility of underwater explosive welding for making large-sized thin metal plate clad by overlapping plates, Int. J. Mod. Phys. B. 22 (2012) 1647-1652.

DOI: 10.1142/s0217979208047201

[4] Y.Y. You, R.K. Shiue, R.H. Shiue, C. Chen, The study of carbon migration in dissimilar welding of the modified 9Cr-1Mo steel, J. Mater. Sci. Technol. 20 (2001) 1429-1432.

[5] J. Chen, R.M. Carter, R.R. Thomson, D.P. Hand, Avoiding the requirement for pre-existing optical contact during picosecond laser glass-to-glass welding, OPT. ENG. 23 (2015) 18645-18657.

DOI: 10.1364/oe.23.018645

[6] G. Margheri, Metal-clad optical waveguide fluorescence device for the detection of heavy metal ions, OPT. ENG. 7 (2014) 990-999.

DOI: 10.1117/1.oe.53.7.071816
