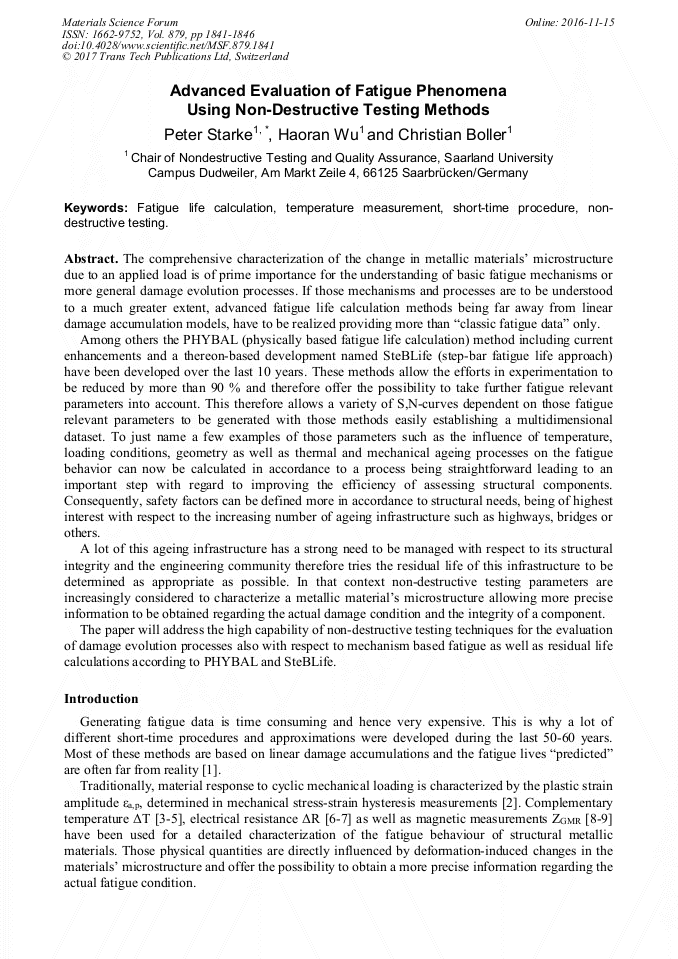

Advanced Evaluation of Fatigue Phenomena Using Non-Destructive Testing Methods

Abstract:

The comprehensive characterization of the change in metallic materials’ microstructure due to an applied load is of prime importance for the understanding of basic fatigue mechanisms or more general damage evolution processes. If those mechanisms and processes are to be understood to a much greater extent, advanced fatigue life calculation methods being far away from linear damage accumulation models, have to be realized providing more than “classic fatigue data” only. Among others the PHYBAL (physically based fatigue life calculation) method including current enhancements and a thereon-based development named SteBLife (step-bar fatigue life approach) have been developed over the last 10 years. These methods allow the efforts in experimentation to be reduced by more than 90 % and therefore offer the possibility to take further fatigue relevant parameters into account. This therefore allows a variety of S,N-curves dependent on those fatigue relevant parameters to be generated with those methods easily establishing a multidimensional dataset. To just name a few examples of those parameters such as the influence of temperature, loading conditions, geometry as well as thermal and mechanical ageing processes on the fatigue behavior can now be calculated in accordance to a process being straightforward leading to an important step with regard to improving the efficiency of assessing structural components. Consequently, safety factors can be defined more in accordance to structural needs, being of highest interest with respect to the increasing number of ageing infrastructure such as highways, bridges or others. A lot of this ageing infrastructure has a strong need to be managed with respect to its structural integrity and the engineering community therefore tries the residual life of this infrastructure to be determined as appropriate as possible. In that context non-destructive testing parameters are increasingly considered to characterize a metallic material’s microstructure allowing more precise information to be obtained regarding the actual damage condition and the integrity of a component. The paper will address the high capability of non-destructive testing techniques for the evaluation of damage evolution processes also with respect to mechanism based fatigue as well as residual life calculations according to PHYBAL and SteBLife.

• Periodical: Materials Science Forum (Volume 879)
• Pages: 1841-1846
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.879.1841
• Online since: November 2016
• Authors: Peter Starke*, Hao Ran Wu, Christian Boller
• Keywords: Fatigue Life Calculation, Non-Destructive Testing, Short-Time Procedure, Temperature Measurement

References

[1] M.A. Miner, Cumulative damage in fatigue, J. Appl. Mech. (1945) 12: A159-A164.

[2] R.W. Landgraf, J. Morrow, T. Endo, Determination of the cyclic stress-strain curve J. Mater. 4(1) (1969) 176–188.

[3] G. Meneghetti, Analysis of the fatigue strength of a stainless steel based on the energy dissipation, Int J Fatigue 29; 1 (2007) 81–94.

DOI: 10.1016/j.ijfatigue.2006.02.043

[4] D. Dengel, H. Harig, Estimation of the fatigue limit by progressively-increasing load tests, Fatigue Fract Eng M 3 (1980) 113-128.

DOI: 10.1111/j.1460-2695.1980.tb01108.x

[5] O. Plekhov, T. Palin-Luc, N. Saintier, S. Uvarov, O. Naimark, Fatigue crack initiation and growth in a 35CrMo4 steel investigated by infrared thermography, Fatigue Fract Eng M 28; 1-2(2005) 169–178.

DOI: 10.1111/j.1460-2695.2005.00856.x

[6] J. Polák, Electrical resistivity of cyclically deformed copper, Czech J Phys B 19; 3 (1969) 315–322.

DOI: 10.1007/bf01712868

[7] B. Sun, L. Yang, Y. Guo, A high-cycle fatigue accumulation model based on electrical resistance for structural steels, Fatigue Fract Eng M 30; 11 (2007) 1052–1062.

DOI: 10.1111/j.1460-2695.2007.01175.x

[8] I. Altpeter, R. Tschuncky, K. Hällen, G. Dobmann, C. Boller, M. Smaga, A. Sorich, D. Eifler, Early detection of damage in thermo-cyclically loaded austenitic materials, 16th International Workshop on Electromagnetic Non-destructive Evaluation (ENDE), 10. – 12. March, India, (2011).

[9] P. Starke, D. Eifler, C Boller, Fatigue assessment of metallic materials beyond strain measurement, Int. J. Fat. 82 (2015) 274-279.

DOI: 10.1016/j.ijfatigue.2015.03.018

[10] P. Starke, F. Walther, D. Eifler, PHYBAL a short-time procedure for a reliable fatigue life calculation, Advanced Engineering Materials 12; 4 (2010) 276-282.

DOI: 10.1002/adem.200900344

[11] P. Starke, D. Eifler, Fatigue assessment and fatigue life calculation of metals on the basis of mechanical hysteresis, temperature, and resistance Data, MP Materials Testing 51 (2009) 261-68.

DOI: 10.3139/120.110034

[12] H. Wu, P. Starke, C. Boller, PHYBAL based evaluation of materials fatigue data for aged infrastructure using non-destructive testing methods, proceedings of NDT-CE 2015, NDT. net, (2015) 1-9.

[13] Information on http: /up. picr. de/1727394. pdf.

[14] JD. Morrow, Cyclic plastic strain energy and fatigue of metals. Internal friction, damping and cyclic plasticity, Philadelphia, PA: American Society for Testing and Materials (1964) 45–87.

DOI: 10.1520/stp43764s

[15] OH. Basquin, The exponential law on endurance tests, Proc ASTM 10 (1910) 625–630.
