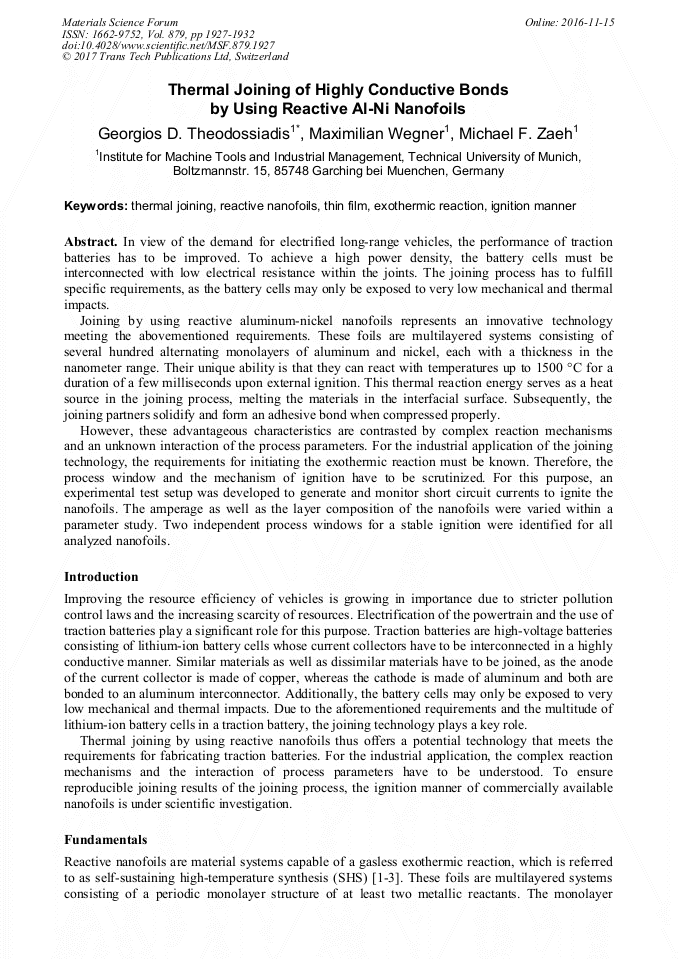

Thermal Joining of Highly Conductive Bonds by Using Reactive Al-Ni Nanofoils

Abstract:

In view of the demand for electrified long-range vehicles, the performance of traction batteries has to be improved. To achieve a high power density, the battery cells must be interconnected with low electrical resistance within the joints. The joining process has to fulfill specific requirements, as the battery cells may only be exposed to very low mechanical and thermal impacts. Joining by using reactive aluminum-nickel nanofoils represents an innovative technology meeting the abovementioned requirements. These foils are multilayered systems consisting of several hundred alternating monolayers of aluminum and nickel, each with a thickness in the nanometer range. Their unique ability is that they can react with temperatures up to 1500 °C for a duration of a few milliseconds upon external ignition. This thermal reaction energy serves as a heat source in the joining process, melting the materials in the interfacial surface. Subsequently, the joining partners solidify and form an adhesive bond when compressed properly. However, these advantageous characteristics are contrasted by complex reaction mechanisms and an unknown interaction of the process parameters. For the industrial application of the joining technology, the requirements for initiating the exothermic reaction must be known. Therefore, the process window and the mechanism of ignition have to be scrutinized. For this purpose, an experimental test setup was developed to generate and monitor short circuit currents to ignite the nanofoils. The amperage as well as the layer composition of the nanofoils were varied within a parameter study. Two independent process windows for a stable ignition were identified for all analyzed nanofoils.

• Periodical: Materials Science Forum (Volume 879)
• Pages: 1927-1932
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.879.1927
• Online since: November 2016
• Authors: Georgios D. Theodossiadis*, Maximilian Wegner, Michael F. Zaeh
• Keywords: Exothermic Reaction, Ignition Manner, Reactive Nanofoils, Thermal Joining, Thin Film

References

[1] A.S. Rogachev, A.S. Mukasyan, Combustion for Material Synthesis, first ed., Taylor and Francis, Hoboken, (2014).

[2] A. Biswas, S.K. Roy, K.R. Gurumurthy, N. Prabhu, S. Banerjee, A study of self-propagating high-temperature synthesis of NiAl in thermal explosion mode, Acta Materialia 50 (2002) 757-773.

DOI: 10.1016/s1359-6454(01)00387-1

[3] A.J. Gavens, D. van Heerden, A.B. Mann, M.E. Reiss, T.P. Weihs, Effect of intermixing on self-propagating exothermic reactions in Al/Ni nanolaminate foils, Journal of Applied Physics 87 (2000) 1255-1263.

DOI: 10.1063/1.372005

[4] M. Herr, Fügen von Hochvolt-Komponenten mittels reaktiver Nanometer-Multischichten, first ed., Cuvillier, Göttingen, (2012).

[5] G. Theodossiadis, Fügen von Metall und Kunststoff mittels reaktiver Nanofolien, DVS - Jugend forscht und schweißt (2014) 1-8.

[6] A.S. Rogachev, S.G. Vadchenko, F. Baras, O. Politano, S. Rouvimov, N.V. Sachkova, A.S. Mukasyan, Structure evolution and reaction mechanism in the Ni/Al reactive multilayer nanofoils, Acta Materialia 66 (2014) 86-96.

DOI: 10.1016/j.actamat.2013.11.045

[7] G.M. Fritz, S.J. Spey, M.D. Grapes, T.P. Weihs, Thresholds for igniting exothermic reactions in Al/Ni multilayers using pulses of electrical, mechanical, and thermal energy, Journal of Applied Physics 113 (2013) 14901.

DOI: 10.1063/1.4770478

[8] R.V. Reeves, A.S. Mukasyan, S. Son, Microstructural effects on ignition sensitivity in Ni/Al systems subjected to high strain rate impacts, Shock Compression of Condensed Matter (2011) 539-542.

DOI: 10.1063/1.3686335

[9] C.T. Wei, V.F. Nesterenko, T.P. Weihs, B.A. Remington, H. -S. Park, M.A. Meyers, Response of Ni/Al laminates to laser-driven compression, Acta Materialia 60 (2012) 3929-3942.

DOI: 10.1016/j.actamat.2012.03.028

[10] Y.N. Picard, D.P. Adams, J.A. Palmer, S.M. Yalisove, Pulsed laser ignition of reactive multilayer films, Applied Physics Letters 88 (2006) 144102.

DOI: 10.1063/1.2191952

[11] R.V. Reeves, J.D.E. White, E.M. Dufresne, K. Fezzaa, S.F. Son, A. Varma, A.S. Mukasyan, Microstructural transformations and kinetics of high-temperature heterogeneous gasless reactions by high-speed x-ray phase-contrast imaging, Physical Review B 80 (2009).

DOI: 10.1103/physrevb.80.224103

[12] H.P. Li, The influence of ignition manner on micropyretic synthesis of low exothermic reaction with Ni+Al. Journal of Applied Sciences 5 (2005) 202-206.

DOI: 10.3923/jas.2005.202.206

[13] J. Warnatz, U. Maas, R.W. Dibble, Verbrennung, third ed., Springer, Berlin, (2001).
