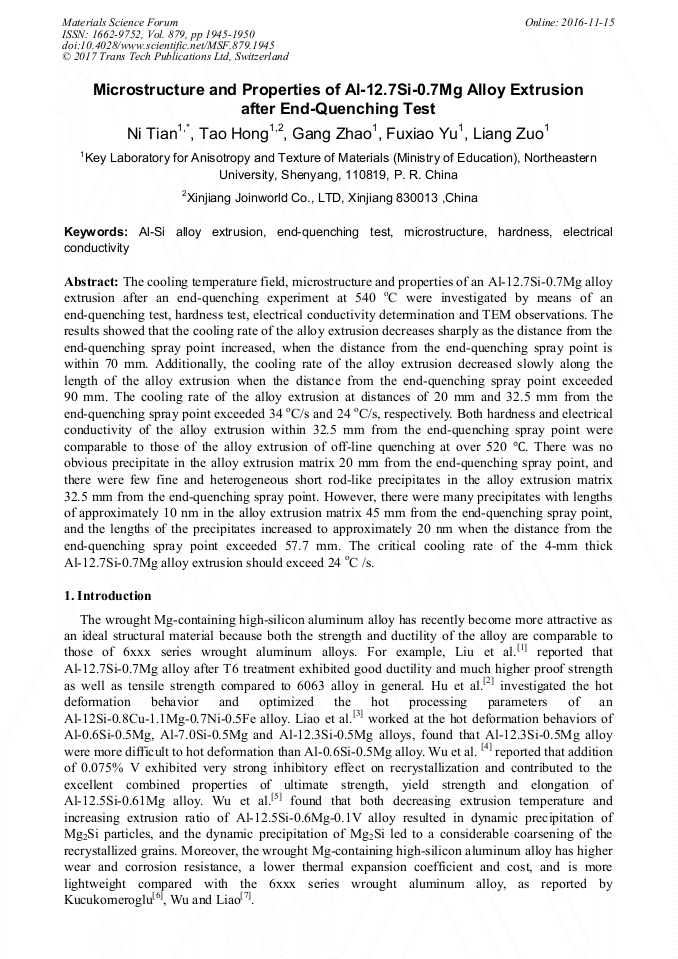

Microstructure and Properties of Al-12.7Si-0.7Mg Alloy Extrusion after End-Quenching Test

Abstract:

The cooling temperature field, microstructure and properties of an Al-12.7Si-0.7Mg alloy extrusion after an end-quenching experiment at 540 ^oC were investigated by means of an end-quenching test, hardness test, electrical conductivity determination and TEM observations. The results showed that the cooling rate of the alloy extrusion decreases sharply as the distance from the end-quenching spray point increased, when the distance from the end-quenching spray point is within 70 mm. Additionally, the cooling rate of the alloy extrusion decreased slowly along the length of the alloy extrusion when the distance from the end-quenching spray point exceeded 90 mm. The cooling rate of the alloy extrusion at distances of 20 mm and 32.5 mm from the end-quenching spray point exceeded 34 ^oC/s and 24 ^oC/s, respectively. Both hardness and electrical conductivity of the alloy extrusion within 32.5 mm from the end-quenching spray point were comparable to those of the alloy extrusion of off-line quenching at over 520 °C. There was no obvious precipitate in the alloy extrusion matrix 20 mm from the end-quenching spray point, and there were few fine and heterogeneous short rod-like precipitates in the alloy extrusion matrix 32.5 mm from the end-quenching spray point. However, there were many precipitates with lengths of approximately 10 nm in the alloy extrusion matrix 45 mm from the end-quenching spray point, and the lengths of the precipitates increased to approximately 20 nm when the distance from the end-quenching spray point exceeded 57.7 mm. The critical cooling rate of the 4-mm thick Al-12.7Si-0.7Mg alloy extrusion should exceed 24 ^oC /s.

• Periodical: Materials Science Forum (Volume 879)
• Pages: 1945-1950
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.879.1945
• Online since: November 2016
• Authors: Ni Tian*, Tao Hong, Gang Zhao, Fu Xiao Yu, Liang Zuo
• Keywords: Al-Si Alloy Extrusion, Electrical Conductivity, End-Quenching Test, Hardness, Microstructure

References

[1] F. Liu, F.X. Yu, D.Z. Zhao, L. Zuo, Microstructure and mechanical properties of an Al-12. 7Si-0. 7Mg alloy processed by extrusion and heat treatment, Mater. Sci. Eng. A 528 (2011) 3786-3790.

DOI: 10.1016/j.msea.2011.01.041

[2] H.E. Hu, X.Y. Wang, L. Deng, High temperature deformation behavior and optimal hot processing parameters of Al-Si eutectic alloy, Mater. Sci. Eng. A 576 (2013) 45-51.

DOI: 10.1016/j.msea.2013.03.059

[3] H.C. Liao, Y.N. Wu, K.X. Zhou, J. Yan, Hot deformation behavior and processing map of Al-Si-Mg alloys containing different amount of silicon based on Gleebe-3500 hot compression simulation, Mater. Des. 65 (2015) 1091-1099.

DOI: 10.1016/j.matdes.2014.08.021

[4] Y.N. Wu, H.C. Liao, K.X. Zhou, J. Yang, Effect of texture evolution on mechanical properties of near eutectic Al-Si-Mg alloy with minor addition of Zr/V during hot extrusion, Mater. Des. 57 (2014)416-420.

DOI: 10.1016/j.matdes.2013.12.068

[5] Y.N. Wu, H.C. Liao, Y. B Liu., K.X. Zhou, Dynamic precipitation of Mg2Si induced by temperature and strain during hot extrusion and its impact on microstructure and mechanical properties of near eutectic Al-Si-Mg-V alloy, Mater. Sci. Eng. A; 614 (2014).

DOI: 10.1016/j.msea.2014.07.023

[6] Kucukomeroglu T, Effect of equal-channel angular extrusion on mechanical and wear properties of eutectic Al-12Si alloy, Mater. Des. 31 (2010) 782-789.

DOI: 10.1016/j.matdes.2009.08.004

[7] Y.N. Wu, H.C. Liao, Corrosion Behavior of Extruded near Eutectic Al-Si-Mg and 6063 Alloys, J. Mater. Sci. Technol. 29 (2013) 380-386.

DOI: 10.1016/j.jmst.2013.02.001

[8] K. Ding, H.C. Liao, Q.M. Jin, Y. Tang, Effect of hot extrusion on mechanical properties and microstructure of near eutectic Al-12. 0%Si-0. 2%Mg alloy, Mater. Sci. Eng. A 527 (2010) 6887-6892.

DOI: 10.1016/j.msea.2010.07.068

[9] B. Chen, M. Gao, L. Wen, Y.X. Wang, M.J. Wang, Experiment and finite element simulation of online quenching process for 6063 aluminum alloy, Light Alloy Fabri. Technol. 40 (2012) 55-59.

[10] R. Xu, L.X. Li, L.Q. Zhang, B.W. Zhu, X. Liu, X.B. Bu, Influence of pressure and surface roughness on the heat transfer efficiency during water spray quenching of 6082 aluminum alloy, J. Mater. Process. Technol. 214 (2014) 2877-2883.

DOI: 10.1016/j.jmatprotec.2014.06.027

[11] M.J. Wang, G. Yang, C.Q. Huang, B. Chen, Simulation of temperature and stress in 6061 aluminum alloy during online quenching process, Trans. Nonferrous Met. Soc. China 24 (2014) 2168-2173.

DOI: 10.1016/s1003-6326(14)63328-8

[12] C.W. Li, X.Z. Pan, L.L. Liu, W. Cao, C.H. Li, Y.B. Yuan, M.J. Wang, Effect of on-line quenching on microstructure and mechanical properties of 6061 and 6005 alloy profile, Heat Treat. Metal. 35 (2010) 59-62.

[13] J.S. Robinson, D.A. Tanner, C.E. Truman, A.M. Paradowska, R. C. Wimpory, The influence of quench sensitivity on residual stresses in the aluminium alloys 7010 and 7075, Mater. Charact. 65 (2012) 73-85.

DOI: 10.1016/j.matchar.2012.01.005

[14] A.K. Srivastava, V.C. Srivastava, A. Gloter, S.N. Ojha, Microstructural features induced by spray processing and hot extrusion of an Al-18%Si-5%Fe-1. 5%Cu alloy, Acta Mater. 54 (2006) 1741-1748.

DOI: 10.1016/j.actamat.2005.11.039

[15] S. Bikass, B. Andersson, A. Pilipenko, H.P. Langtangen, Simulation of initial cooling rate effect on the extrudate distortion in the aluminum extrusion process, Appl. Therm. Eng. 40 (2012) 326-336.

DOI: 10.1016/j.applthermaleng.2012.02.012

[16] X.B. Fan, Z.B. He, S.J. Yuan, P. Lin, Investigation on strengthening of 6A02 aluminum alloy sheet in hot forming-quenching integrated process with warm forming-dies, Mater. Sci. Eng. A 587 (2013) 221-227.

DOI: 10.1016/j.msea.2013.08.059

[17] B. Milkereit, H. FrÖck, C. Schick, O. Kessler, Continuous cooling precipitation diagram of cast aluminium alloy Al-7Si-0. 3Mg, Trans. Nonferrous Met. Soc. China 24 (2014) 2025-(2033).

DOI: 10.1016/s1003-6326(14)63308-2
