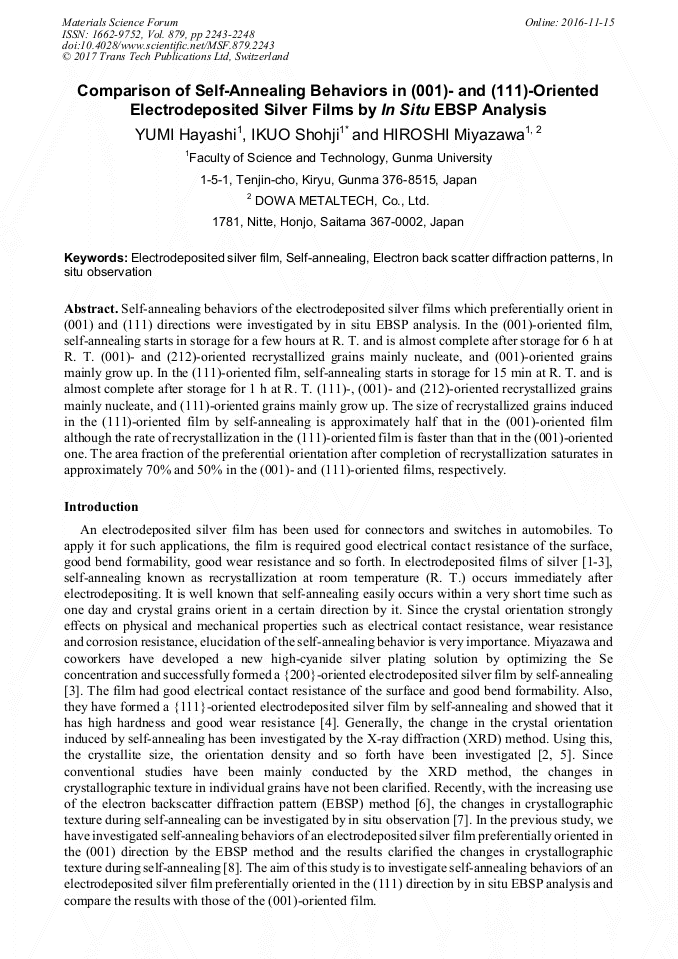

Comparison of Self-Annealing Behaviors in (001)- and (111)-Oriented Electrodeposited Silver Films by In Situ EBSP Analysis

Abstract:

Self-annealing behaviors of the electrodeposited silver films which preferentially orient in (001) and (111) directions were investigated by in situ EBSP analysis. In the (001)-oriented film, self-annealing starts in storage for a few hours at R. T. and is almost complete after storage for 6 h at R. T. (001)- and (212)-oriented recrystallized grains mainly nucleate, and (001)-oriented grains mainly grow up. In the (111)-oriented film, self-annealing starts in storage for 15 min at R. T. and is almost complete after storage for 1 h at R. T. (111)-, (001)- and (212)-oriented recrystallized grains mainly nucleate, and (111)-oriented grains mainly grow up. The size of recrystallized grains induced in the (111)-oriented film by self-annealing is approximately half that in the (001)-oriented film although the rate of recrystallization in the (111)-oriented film is faster than that in the (001)-oriented one. The area fraction of the preferential orientation after completion of recrystallization saturates in approximately 70% and 50% in the (001)- and (111)-oriented films, respectively.

• Periodical: Materials Science Forum (Volume 879)
• Pages: 2243-2248
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.879.2243
• Online since: November 2016
• Authors: Hayashi Yumi, Ikuo Shohji*, Hiroshi Miyazawa
• Keywords: Electrodeposited Silver Film, Electron Back Scatter Diffraction Patterns, In Situ Observation, Self-Annealing

References

[1] S. Wakabayashi, K. Iwano, M. Nakazawa, Y. Onuma, N. Kaneko, Recrystallization of silver electrodeposits at room temperature, Journal of The Surface Finishing Society of Japan 50 (2000) 1021-1025.

DOI: 10.4139/sfj.51.1021

[2] K. Hansen, K. Pantleon, Microstructure stability of silver electrodeposits at room temperature, Scripta Materialia 58 (2008) 96-98.

DOI: 10.1016/j.scriptamat.2007.09.033

[3] H. Miyazawa, M. Ogata, K. Shinohara, A. Sugawara, I. Shohji, Effect of Se content in high-cyanide silver plating solution on {200} crystal plane orientation ratio of electrodeposited silver layer, Materials Science Forum 783-786 (2014) 1458-1463.

DOI: 10.4028/www.scientific.net/msf.783-786.1458

[4] H. Miyazawa, Study on crystalline orientation control of electrodeposited silver film, doctoral dissertation, Gunma University (2016).

[5] K. Pantleon, M. A. J. Somers, Interpretation of microstructure evolution during self-annealing and thermal annealing of nanocrystalline electrodeposits – A comparative study, Materials Science and Engineering: A 528 (2010) 65-71.

DOI: 10.1016/j.msea.2010.04.077

[6] A. J. Schwartz, M. Kumar, B. L. Adams, Electron Backscatter Diffraction in Materials Science, Kluwer Academic, New York, (2000).

[7] E. Shinada, T. Nagoshi, T. -F. M. Chang, M. Sone, Crystallographic study on self-annealing of electroplated copper at room temperature, Materials Science in Semiconductor Processing 16 (2013) 633-639.

DOI: 10.1016/j.mssp.2012.11.011

[8] Y. Hayashi, H. Miyazawa, K. Minamitani, I. Shohji: submitted to Materials Transactions (2016).
