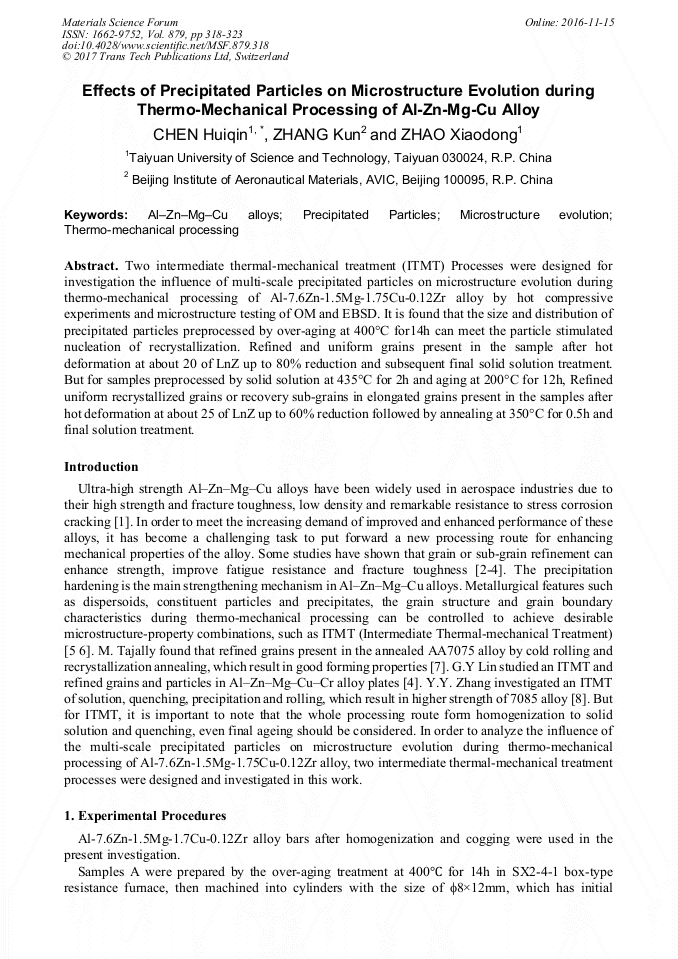

Effects of Precipitated Particles on Microstructure Evolution during Thermo-Mechanical Processing of Al-Zn-Mg-Cu Alloy

Abstract:

Two intermediate thermal mechanical treatment (ITMT) Processes were designed for investigation the influence of multi-scale precipitated particles on microstructure evolution during thermo-mechanical processing of Al-7.6Zn-1.5Mg-1.75Cu-0.12Zr alloy by hot compressive experiments and microstructure testing of OM and EBSD. It is found that the size and distribution of precipitated particles preprocessed by over-aging at 400°C for14h can meet the particle stimulated nucleation of recrystallization. Refined and uniform grains present in the sample after hot deformation at about 20 of LnZ up to 80% reduction and subsequent final solid solution treatment. But for samples preprocessed by solid solution at 435°C for 2h and aging at 200°C for 12h, Refined uniform recrystallized grains or recovery sub-grains in elongated grains present in the samples after hot deformation at about 25 of LnZ up to 60% reduction followed by annealing at 350°C for 0.5h and final solution treatment.

• Periodical: Materials Science Forum (Volume 879)
• Pages: 318-323
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.879.318
• Online since: November 2016
• Authors: Hui Qin Chen*, Kun Zhang, Xiao Dong Zhao
• Keywords: Al-Zn-Mg-Cu Alloys, Microstructure Evolution, Precipitated Particles, Thermo-Mechanical Processing

References

[1] S.Y. Chen, K.H. Chen, G. SH Peng, X.H. Chen, Q.H. Ceng, Effect of heat treatment on hot deformation behavior and microstructure evolution of 7085 aluminum alloy, Journal of Alloys and Compounds. 537 (2012) 338–345.

DOI: 10.1016/j.jallcom.2012.05.052

[2] S. K. Panigrahi, R. Jayaganthan. Development of ultrafine grained high strength age hardenable Al 7075 alloy by cryorolling, Materials and Design. 32 (2011) 3150–3160.

DOI: 10.1016/j.matdes.2011.02.051

[3] H.C. Fang , H. Chao, K.H. Chen. Effect of Zr, Er and Cr additions on microstructures and properties of Al–Zn–Mg–Cu alloys, Materials Science & Engineering A. 610 (2014)10–16.

DOI: 10.1016/j.msea.2014.05.021

[4] G.Y. Lin, W. Yang, L.P. Sun, D.S. Peng, Structures refinement of Al-Zn-Mg-Cu-Cr alloy thick plates, The Chinese Nonferrous Metals. 18(2008)1432-1439.

[5] P. A. Rometsch, Y. Zhang, S. Knight, Heat treatment of 7xxx series aluminium alloys—Some recent developments, Trans. Nonferrous Met. Soc. China. 24(2014) 2003−(2017).

DOI: 10.1016/s1003-6326(14)63306-9

[6] W.T. Huo, M.X. Guo, L.G. Hou, H. Cui, T. T Sun, L.Z. Zhang, J.S. Zhang, Progress on research of advanced thermo-mechanical treatment of aluminum alloy, Journal of Materials Science & Engineering. 32(2014)284-292.

[7] M Tajally, E. Emadoddin. Mechanical and anisotropic behaviors of 7075 aluminum alloy sheet, Materials and Design. 32(2011)1594-1599.

DOI: 10.1016/j.matdes.2010.09.001

[8] Y.Y. Zhang, Y. L Deng, L. Wan, X. M Zhang. Effects of thermal mechanical treatment on the microstructures and hardness of an Al-Zn-Mg-Cu alloy plate, Acta Metallurgica Sinica. 47 (2011) 1270-1276.

[9] X.D. Zhao, H.Q. Chen, J.S. Liu, Hot deformation behavior and microstructural evolution of Al-Zn-Mg-Cu alloy with different starting structures, Advanced Materials Research. 941-944 (2014) 26-34.

DOI: 10.4028/www.scientific.net/amr.941-944.26

[10] R. Kaibyshev, I. Mazurina and O. Sitdikov, Geometric dynamic recrystallization in an AA2219 alloy deformed to large strains at an elevated temperature, Materials Science Forum. 467- 470 (2004) 1199- 1204.

DOI: 10.4028/www.scientific.net/msf.467-470.1199

[11] H. Zhang, N.P. Jin, J.H. Chen. Hot deformation behavior of Al-Zn-Mg-Cu-Zr aluminum alloys during compression at elevated temperature. Trans. Nonferrous Met. Soc. China 21(2011) 437−442.

DOI: 10.1016/s1003-6326(11)60733-4

[12] L. M. Dougherty, I. M. Robertson, J. S. Vetrano, Direct observation of the behavior of grain boundaries during continuous dynamic recrystallization in an Al-4Mg-0. 3Sc alloy, Acta Materialia. 51(2003) 4367−4378.

DOI: 10.1016/s1359-6454(03)00262-3

[13] S. Gourdet, F. Montheillet. An experimental study of the recrystallization mechanism during hot deformation of aluminium, Mater Sci Eng A. 283(2000) 274−288.

DOI: 10.1016/s0921-5093(00)00733-4
