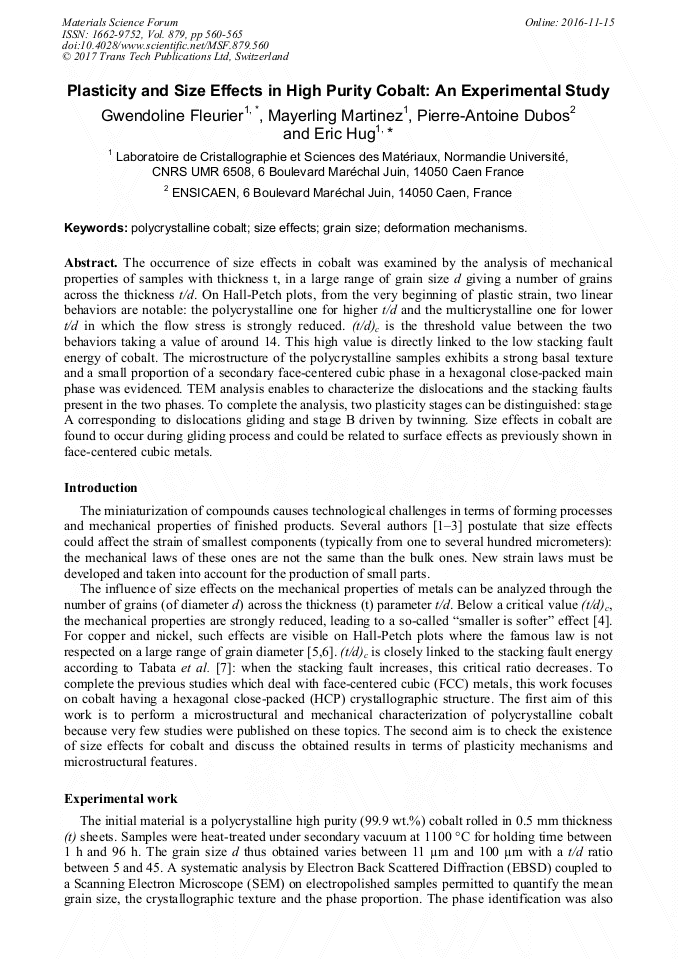

Plasticity and Size Effects in High Purity Cobalt: An Experimental Study

Abstract:

The occurrence of size effects in cobalt was examined by the analysis of mechanical properties of samples with thickness t, in a large range of grain size d giving a number of grains across the thickness t/d. On Hall-Petch plots, from the very beginning of plastic strain, two linear behaviors are notable: the polycrystalline one for higher t/d and the multicrystalline one for lower t/d in which the flow stress is strongly reduced. (t/d)_c is the threshold value between the two behaviors taking a value of around 14. This high value is directly linked to the low stacking fault energy of cobalt. The microstructure of the polycrystalline samples exhibits a strong basal texture and a small proportion of a secondary face-centered cubic phase in a hexagonal close-packed main phase was evidenced. TEM analysis enables to characterize the dislocations and the stacking faults present in the two phases. To complete the analysis, two plasticity stages can be distinguished: stage A corresponding to dislocations gliding and stage B driven by twinning. Size effects in cobalt are found to occur during gliding process and could be related to surface effects as previously shown in face-centered cubic metals.

• Periodical: Materials Science Forum (Volume 879)
• Pages: 560-565
• DOI: https://doi.org/10.4028/www.scientific.net/MSF.879.560
• Online since: November 2016
• Authors: Gwendoline Fleurier, Mayerling Martinez, Pierre Antoine Dubos, Eric Hug*
• Keywords: Deformation Mechanism, Grain Size, Polycrystalline Cobalt, Size Effects

References

[1] T. Fülöp, W.A.M. Brekelmans, M.G.D. Geers, Size effects from grain statistics in ultra-thin metal sheets, J. Mater. Process. Technol. 174 (2006) 233–238.

DOI: 10.1016/j.jmatprotec.2006.01.006

[2] M.G.D. Geers, W.A.M. Brekelmans, P.J.M. Janssen, Size effects in miniaturized polycrystalline FCC samples: Strengthening versus weakening, Int. J. Solids Struct. 43 (2006) 7304–7321.

DOI: 10.1016/j.ijsolstr.2006.05.009

[3] M.W. Fu, W.L. Chan, Micro-scaled Products Development via Microforming, Springer London, London, 2014. http: /link. springer. com/10. 1007/978-1-4471-6326-8 (accessed January 22, 2016).

[4] E. Arzt, Size effects in materials due to microstructural and dimensional constraints: a comparative review, Acta Mater. 46 (1998) 5611–5626.

DOI: 10.1016/s1359-6454(98)00231-6

[5] E. Hug, P.A. Dubos, C. Keller, Temperature dependence and size effects on strain hardening mechanisms in copper polycrystals, Mater. Sci. Eng. A. 574 (2013) 253–261.

DOI: 10.1016/j.msea.2013.03.025

[6] C. Keller, E. Hug, R. Retoux, X. Feaugas, TEM study of dislocation patterns in near-surface and core regions of deformed nickel polycrystals with few grains across the cross section, Mech. Mater. 42 (2010) 44–54.

DOI: 10.1016/j.mechmat.2009.09.002

[7] T. Tabata, K. Takagi, H. Fujita, The Effect of Grain Size and Deformation Sub-Structure on Mechanical Properties of Polycrystalline Copper and Cu-Al Alloys, Trans Jpn Inst Met. 16 (1975) 569–580.

DOI: 10.2320/matertrans1960.16.569

[8] Y.T. Zhu, X.Y. Zhang, Q. Liu, Observation of twins in polycrystalline cobalt containing face-center-cubic and hexagonal-close-packed phases, Mater. Sci. Eng. A. 528 (2011) 8145–8149.

DOI: 10.1016/j.msea.2011.07.062

[9] H. -M. Thieringer, Zur Plastizität hexagonaler Kobalteinkristalle, Z Met. 59 (1968) 476.

DOI: 10.1515/ijmr-1968-590606

[10] C. Hitzenberger, H.P. Karnthaler, A. Korner, Electron microscopy of H.C.P. cobalt at various temperatures, Acta Metall. 33 (1985) 1293–1305.

DOI: 10.1016/0001-6160(85)90240-8

[11] A.G. Zhou, S. Basu, M.W. Barsoum, Kinking nonlinear elasticity, damping and microyielding of hexagonal close-packed metals, Acta Mater. 56 (2008) 60–67.

DOI: 10.1016/j.actamat.2007.08.050

[12] A. Seeger, H. Kronmüller, O. Boser, M. Rapp, Plastische Verfomung von Kobalteinkristallen, Phys Stat Sol. 3 (1963) 1107.

DOI: 10.1002/pssb.19630030617

[13] K.G. Davis, E. Teghtsoonian, Deformation twins in cobalt, Acta Metall. 10 (1962) 1189–1191.

DOI: 10.1016/0001-6160(62)90175-x

[14] J.T. X. Y. Zhang, High-resolution electron microscopy study of the {101¯1} twin boundary and twinning dislocation analysis in deformed polycrystalline cobalt, Scr. Mater. 67 (2012) 991–994.

DOI: 10.1016/j.scriptamat.2012.09.004

[15] X.Y. Zhang, B. Li, X.L. Wu, Y.T. Zhu, Q. Ma, Q. Liu, et al., Twin boundaries showing very large deviations from the twinning plane, Scr. Mater. 67 (2012) 862–865.

DOI: 10.1016/j.scriptamat.2012.08.012

[16] A.W. Thompson, M.I. Baskes, W.F. Flanagan, The dependence of polycrystal work hardening on grain size, Acta Metall. 21 (1973) 1017–1028.

DOI: 10.1016/0001-6160(73)90158-2

[17] G. Fleurier, E. Hug, M. Martinez, P. -A. Dubos, C. Keller, Size effects and Hall–Petch relation in polycrystalline cobalt, Philos. Mag. Lett. 95 (2015) 122–130.

DOI: 10.1080/09500839.2015.1020351

[18] Sanderson, Deformation of polycrystalline cobalt, The University of British Columbia, (1972).

[19] C. Keller, E. Hug, Hall–Petch behaviour of Ni polycrystals with a few grains per thickness, Mater. Lett. 62 (2008) 1718–1720.

DOI: 10.1016/j.matlet.2007.09.069

[20] N. Stanford, U. Carlson, M.R. Barnett, Deformation Twinning and the Hall–Petch Relation in Commercial Purity Ti, Metall. Mater. Trans. A. 39 (2008) 934–944.

DOI: 10.1007/s11661-007-9442-9

[21] H. Mecking, Description of hardening curves of fcc single and polycrystals, in: Work Hardening Tens. Fatigue, TMS-AIME, A. W. Thompson, New York, 1977: p.67.
