Casting of an Mg Alloy Clad Strip Using a Twin Roll Caster Equipped with a Scraper

Abstract:

Casting of an Mg alloy clad strip was attempted with a twin roll caster equipped with a scraper in an oxidizing atmosphere. The base strip was AM60 and the overlay strip was AZ121. The AM60 strip was cast with a roll, and the upper side of the strip was scribed by the scraper. The molten AZ121 was poured on the scribed AM60 strip. The scribed surface of AM60 contacted the molten metal of AZ121 without exposure to the atmosphere. Therefore, the scribed surface was not oxidized. Most of the AZ121 strip was solidified by the other roll. The casting speed was 30 m/min. The roll load was 0.05 kN/mm. The roll speed was very high and the roll load was very small. However, the strips were bonded, and they did not peel with bending until breaking. The interface between the two strips was clear. When AM60 was on the outer side, the results of the V-bending test and the Erichsen test were better. These results mean that the ductility of AZ121 was improved by cladding with AM60.

You might also be interested in these eBooks

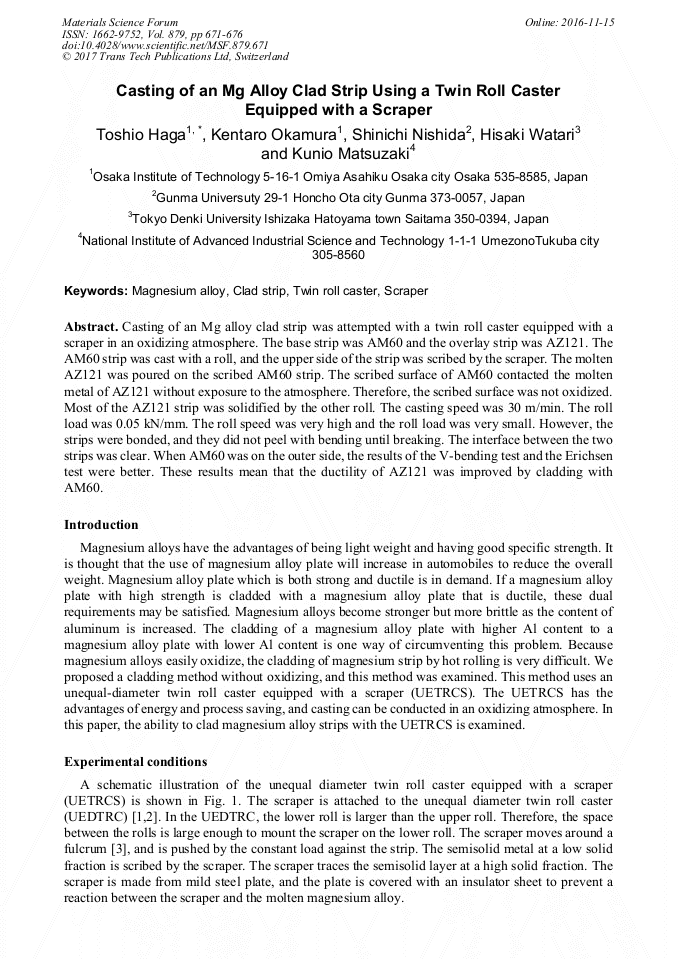

View Preview

Info:

Periodical:

Materials Science Forum (Volume 879)

Pages:

671-676

DOI:

https://doi.org/10.4028/www.scientific.net/MSF.879.671

Citation:

Cite this paper

Online since:

November 2016

Authors:

Toshio Haga*, Kentaro Okamura, Shinichi Nishida, Hisaki Watari, Kunio Matsuzaki

Keywords:

Clad Strip, Magnesium Alloy, Scraper, Twin Roll Caster

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

* - Corresponding Author

References

[1] T. Haga, R. Nakamura, S. Kumai, H. Watari, Roll casting of Al-40%Sn -1%Cu alloy strip, Advanced Materials Research. 264-265(2011), 1905-(1910).

DOI: 10.4028/www.scientific.net/amr.264-265.1905

Google Scholar

[2] T. Haga, H. Inui, R. Nakamura, H. Watari, Strip casting of 6061 and recycled 6061 alloy by an unequal diameter twin roll caster, Advanced Materials Research. 264-265(2011), 1911-(1916).

DOI: 10.4028/www.scientific.net/amr.264-265.1911

Google Scholar

[3] T. Haga, K. Akitsu, S. Kumai, H. Watari, Roll casting of aluminum alloy strip by a single roll caster equipped with a scraper, Advanced Materials Research. 445(2012), 307-312.

DOI: 10.4028/www.scientific.net/amr.445.307

Google Scholar

[4] T. Haga, R. Nakamura, S. Kumai, A vertical type twin roll caster for an aluminum alloy clad strip, Journal of Achievements in Materials and Manufacturing Engineering, 62(2013) 36-44.

DOI: 10.1007/978-3-319-48761-8_222

Google Scholar

[5] B. Engl, A new technology for magnesium sheet production, Light Metal Age, 63(2005)14-19. AZ121 AZ121 AM60 AM60 Casting direction Lateral to casting direction Vertical to casting direction.

Google Scholar
